AMX NXD-500i Operation/Reference Manual

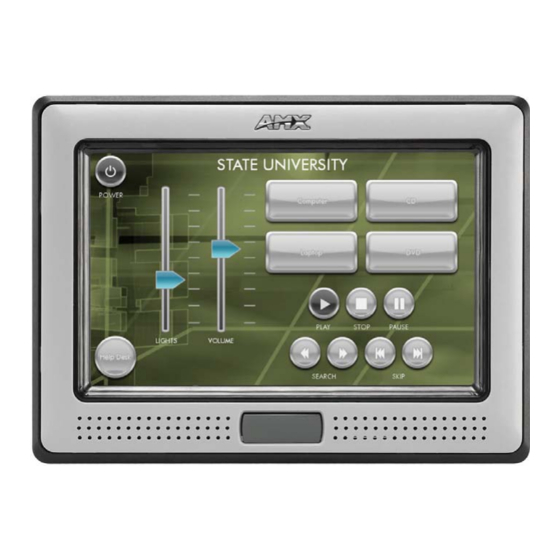

5" modero wall/flush mount touch panel with intercom
Hide thumbs Also See for NXD-500i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual, Operation/reference Manual

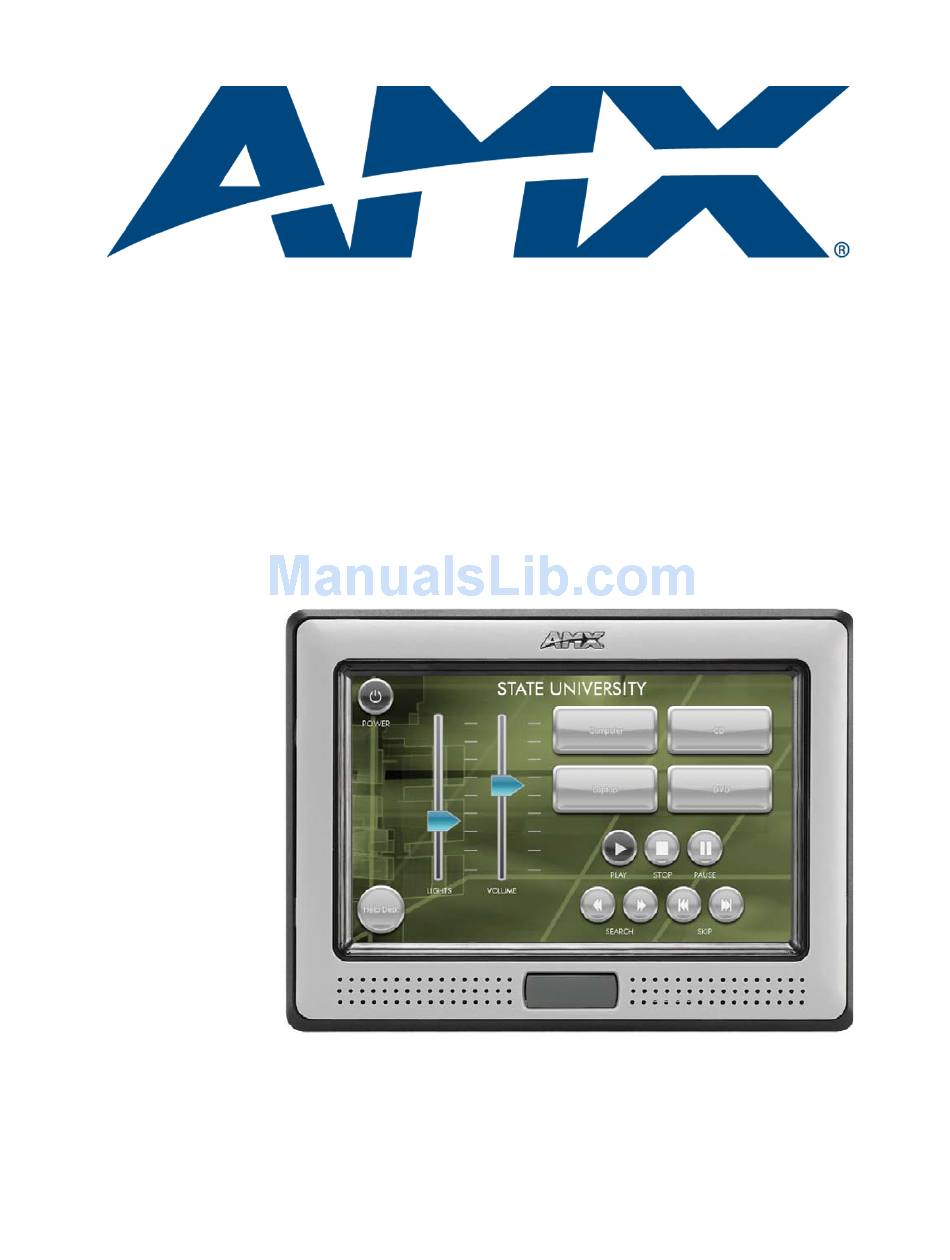

Operation/Reference Guide
NXD-500i
®
5" Modero
Wall/Flush Mount
Touch Panel with Intercom
T o u c h P a n e l s
L a s t R e v is e d : 5 / 1 6 / 2 0 1 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXD-500i and is the answer not in the manual?

Questions and answers

Related Manuals for AMX NXD-500i

Summary of Contents for AMX NXD-500i

  • Page 1 Operation/Reference Guide NXD-500i ® 5" Modero Wall/Flush Mount Touch Panel with Intercom T o u c h P a n e l s L a s t R e v is e d : 5 / 1 6 / 2 0 1 3...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.
  • Page 3 LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software.

  • Page 5: Table Of Contents

    Installing the NXD-500i within a Rough-In Box..............7 Installing the NXD-500i Into Drywall ................8 Installing the NXD-500i into a Flat Surface using #4 screws ......... 12 Installing an NXD-500i into a Rack Mount Kit (NXA-RK5) ..........13 Wiring Guidelines for the NXD-500i Panel.............. 14 Ethernet/RJ-45 Port: Connections and Wiring...............
  • Page 6 Cache Settings Page...................... 55 Setting the Image Cache ....................56 Clearing the image cache ....................57 Checking image cache status ..................57 Password Settings Page ....................57 Sensor Settings ......................58 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 7 RGB Triplets and Names For Basic 88 Colors ............... 71 Font Styles and ID Numbers..................72 Border Styles and Programming Numbers ..............72 TPD4 Border Styles by Name ..................73 Telnet Commands ....................75 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 8 ^GRD ............................. 86 ^GRU ............................. 86 ^GSC............................86 ^GSN ............................. 87 ^ICO............................87 ^JSB............................87 ^JSI ............................88 ^JST ............................88 ^MBT ............................. 88 ^MDC............................. 88 ^SHO ............................. 89 ^TEC ............................89 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 9 TPAGEON ..........................103 TPAGEOFF ........................... 103 @VKB ........................... 103 WAKE........................... 103 Input Commands....................104 ^CAL ............................ 104 ^KPS ............................ 104 ^VKS ............................ 104 Embedded codes ....................105 Panel Setup Commands ..................106 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 10 ^IRM ............................ 112 ^IRS............................112 SIP Commands ...................... 113 ^PHN-AUTOANSWER ......................113 ^PHN-CALL .......................... 113 ^PHN-DECLINE ........................113 ^PHN-INCOMING ........................ 113 ^PHN-LINESTATE......................... 113 ^PHN-ANSWER........................114 ^PHN-AUTOANSWER ......................114 ^PHN-MSGWAITING......................114 ^PHN-PRIVACY ........................114 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 11 Input mask operations....................125 Input mask literals ....................... 125 Input mask output examples ..................126 URL Resources ...................... 126 Special escape sequences ................... 127 Appendix B - Complex Script Support ............129 Overview ......................129 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 12 Table of Contents viii NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 13: Nxd-500I 5" Modero Wall/Flush Mount Touch Panel With Intercom

    Panel with Intercom Overview The NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom (FG2261-02) is a widescreen full-color mini- touch panel with full sound and intercom capability. This panel includes a built-in microphone, speakers, a mini-USB port for programming and audio output, and one NetLinx-programmable button.

  • Page 14: Nxd-500I Specifications

    NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom NXD-500i Specifications Product Specifications Dimensions (HWD): • NXD-500i (with faceplate): 4.15" x 5.59" x 1.97" (10.50 cm x 14.20 cm x 5 cm) • CB-TP5i Rough-In/Wallbox (optional): 4.27" x 5.14" x 3.40"...
  • Page 15 (10 Mbps or 100 Mbps), and whether to use half duplex or full duplex mode. Power is supplied through Power Over Ethernet (PoE) • NXD-500i panels communicate with the NetLinx Master using the ICSP protocol over Ethernet.

  • Page 16: Front Bezel Button

    NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom Front Bezel Button The NXD-500i has only one button on the front of the device, in the center of the button trim ring. This button has several uses:  Press the button once to start a previously programmed function, or to turn off the display if not previously programmed.

  • Page 17: Installation

    The NXD-500i is contained within a clear outer housing known as the backbox (FIG. 3). This back box is removed when installing the device into a wall or into a Rough-In Box.

  • Page 18: Installing The Nxd-500I Touch Panel

    Faceplate assembly. Installing the NXD-500i Touch Panel The NXD-500i can be installed either directly into the (optional) CB-TP5i Rough-In Box or other solid surface environment, using solid surface screws or the included locking tabs as mounting options.

  • Page 19: Installing The Nxd-500I Within A Rough-In Box

    Rough-In Box and the connections have been tested prior to installation of the NXD-500i. Remove the Faceplate bezel (A in FIG. 5) from the main NXD-500i unit (B in FIG. 5) by gripping the faceplate from the top and lifting up and then pulling with gentle outward force.

  • Page 20: Installing The Nxd-500I Into Drywall

    Install the two Plastite screws attaching the NXD-500i to the back box (FIG. 5). Place the Faceplate/Trim Ring assembly (A in FIG. 5) back onto the main NXD-500i unit (B in FIG. 5). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front faceplate/ bezel.
  • Page 21 Too little drywall removed is always better than too much. Remove the Faceplate/bezel (A in FIG. 8) from the main NXD-500i device (B in FIG. 8) by gripping the faceplate and pulling up and then out with gentle outward force.
  • Page 22 Thread the incoming Ethernet and USB wiring from their terminal locations through the surface opening. Leave enough slack in the wiring to accommodate any re-positioning of the panel. Connect both connectors to their corresponding locations along the left side of the NXD-500i touch panel. FIG. 8...
  • Page 23 Install the two Plastite screws attaching the NXD-500i to the back box (FIG. 5). Place the Faceplate/Trim Ring assembly (A in FIG. 8) back onto the main NXD-500i unit (B in FIG. 8). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front faceplate/bezel.

  • Page 24: Installing The Nxd-500I Into A Flat Surface Using #4 Screws

    Prepare the area by removing any screws or nails from the surface before beginning the cutout process. Cut out the surface for the NXD-500i Wall Mount unit using the dimensions shown in FIG. 9. FIG. 9 NXD-500i Wall Mount panel dimensions using #4 mounting screws NXD-500i 5"...

  • Page 25: Installing An Nxd-500I Into A Rack Mount Kit (Nxa-Rk5)

    Installation Remove the Faceplate/bezel (A in FIG. 10) from the main NXD-500i unit (B in FIG. 10) by gripping the faceplate and pulling up and out with gentle force. Thread the incoming Ethernet and USB wiring from their terminal sources through the surface opening. Leave enough slack in the wiring to accommodate any re-positioning of the panel.

  • Page 26: Wiring Guidelines For The Nxd-500I Panel

    Secure the panel to the NXA-RK5 mount by first inserting and then tightening the three included #4-40 screws. Insert the NXA-RK5 (with the connected NXD-500i unit) into the equipment rack, making sure to align the screw holes along the sides on the NXA-RK5 with the holes in the equipment rack.

  • Page 27: Nxd-500I Touch Panel Accessories

    • Load Change Typical Protection • Foldback Overcurrent Protection • Short Circuit Protection Input Specifications AC Input Voltage Range 100-240VAC -10%, +6% Line Frequency 47-63Hz AC Input Current • 90VAC Input • 0.6A max. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 28 • Operating Temperature 0° C to 40° C • No Derating • Convectional Cooling • Non Vented Case Storage Temp -30° C to +85° C Relative Humidity Non-Condensing 5% to 95% Altitude 0-10,000 feet NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 29: Pin Connections

    = Transformer FIG. 14 PoE Gigabit pin-out connections Each PoE Injector may be used for one device’s power needs. Multiple devices in a network that require PoE will require multiple Injectors. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 30 NXD-500i Touch Panel Accessories NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 31: Panel Calibration

    Modero panels are set up in the factory with specific demo touch panel pages. The first splash screen that appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page. Calibrating the Modero Panel Press and hold the grey Front Bezel button (FIG.
  • Page 32 Panel Calibration NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 33: Configuring Communication

    IP). Ethernet communication can only be achieved via a direct Ethernet connection. Before commencing, verify that you are using the latest NetLinx Master and Modero panel firmware, and also verify you are using the latest versions of AMX’s NetLinx Studio and TPDesign4 applications. These are available at www.amx.com.

  • Page 34: Configuring And Using Usb With A Virtual Master

    Step 1: Setup the Panel and PC for USB Communication If you do not currently have the latest version of TPDesign4, navigate to www.amx.com > Tech Center > Downloadable Files > Application Files > NetLinx Design Tools section of the website and locate the File Transfer 2 executable (FT2Setup.exe).

  • Page 35: Step 2: Confirm The Installation Of The Usb Driver On The Pc

    Step 2: Confirm the Installation of the USB Driver on the PC The first time each AMX touch panel is connected to the PC, it is detected as a new hardware device and the panel- specific USBLAN driver becomes associated with it. Each time thereafter, the panel is "recognized" as a unique USBLAN device and the association to the driver is done in the background.
  • Page 36 Confirm that a new USB detection icon (FIG. 20) appears in the lower-right taskbar on the PC display window. Double-click on the icon to open the Unplug or Eject Hardware window and confirm the AMX USB LAN LINK has been installed and is operating properly.

  • Page 37: Step 4: Configure A Virtual Master (Using Netlinx Studio) For Usb

    Refer to the previous section for more information. Launch NetLinx Studio (default location is Start > Programs > AMX Control Disc > NetLinx Studio). Select Settings > Master Communication Settings, from the Main menu to open the Master Communication Settings dialog (FIG.

  • Page 38: Step 5: Confirm And View The Current Amx Usb Device Connections

    If the G4 panel does not appear, refer to the Troubleshooting section on page 119 for more information. Step 5: Confirm and View the current AMX USB device connections Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC.

  • Page 39: Configuring A Wired Ethernet Connection

    This panel has only one method of communicating to a target Master over the Internet: Wired (direct Ethernet connection, as wireless communication is not available on the NXD-500i). The connection parameters may only be configured through the System Connection page. This type of communication can be established either via either a Dynamic IP Address (DHCP) or via a pre-reserved Static IP Address (typically provided by your System Administrator).

  • Page 40: Ip Settings Section - Configuring A Static Ip Address Over Ethernet

    • LISTEN sets the Modero panel to "listen" for broadcasts from the Master (using the panel IP from its URL list). In this system, the panel acts as a "Server" (in that Clients attach to it) and the Master acts as a "Client". NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 41: Step 3: Configure An Ethernet Connection Type

    Verify that the panel has been configured to communicate through an Ethernet cable connected from the panel to a valid Ethernet Hub. Launch NetLinx Studio (default location is Start > Programs > AMX Control Disc > NetLinx Studio). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 42 Click Done to accept the new value and return to the System Settings page. Do not alter the Master Port Number value. This is the default value used by NetLinx. Press the Back button to return to the Protected Setup page. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 43: Master Connection Section - Netlinx Master Ethernet Ip Address - Url Mode

    Master, virtual or not. A Virtual Master system value can be set within the active AMX software applications such as NetLinx Studio, TPD4, or IREdit. If the panel does not appear within the OnLine Tree tab of the Workspace window of NetLinx Studio, check to make sure that the NetLinx Master System Number from within the Device Addressing dialog is correctly assigned.

  • Page 44: Using G4 Web Control To Interact With A G4 Panel

     Wireless is used when a wireless card is detected within the internal card slot. The NXD-500i panel does not provide wireless communication, so this option is not available. Press the Web Control Name field to open the Web Name keyboard.

  • Page 45: Using The Netlinx Master To Control The G4 Panel

    Press the Enter key on your keyboard to begin the communication process between the target Master and your computer.  Initially, the Master Security option is disabled from within the System Security page, and no username and password is required for access or configuration. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 46 Both HTTP and HTTPS Ports are enabled by default via the Manage System > Server page.  If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog.
  • Page 47 Enter the Web Control session password into the Session Password field (FIG. 31). This password was previously entered into the Web Control Password field within the G4 Web Control page on the panel. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 48 A small circle appears within the on-screen G4 panel page and corresponds to the location of the mouse cursor. A left- mouse click on the computer-displayed panel page is the same as an actual touch on the target G4 panel page. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 49: Upgrading Modero Firmware

    USB connector to the PC's USB port and restart your machine. After the NXD-500i panel powers-up, press and hold the grey Front Setup Access button for 4 seconds to continue with the setup process and proceed to the Setup page.
  • Page 50 Virtual NetLinx Master Settings dialog Enter the System number (default is 1). Click OK three times to close the open dialogs, save the settings, and return to the main NetLinx Studio application. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 51: Step 3: Confirm And Upgrade The Firmware Via The Usb Port

    If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.
  • Page 52 This causes a refresh of all project systems, establishes a new connection to the Master, and populates the System list with devices on your particular system. Confirm that the panel has been properly updated to the correct firmware version. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 53: Setup Pages And Descriptions

    The Setup page (FIG. 39) centers around basic Modero panel properties, such as the Connection Status of the panel, Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness. FIG. 39 Setup page The elements of the Setup page are described below: NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 54 • The Auto Brightness button, when selected, will cause the panel to dim as the light level decreases, in order to reflect the brightness level of the room. If the panel is touched, the backlight will temporarily brighten the panel more than the previously selected level. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 55: Information

    Displays the dealer ID number (unique to every dealer and entered in TPD4). Job Name: Displays the job name. Sales Order: Displays the sales order information. Purchase Order: Displays the purchase order information. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 56: Panel Information Page

    Displays the AMX 38 kHz IR channel port used by the IR receiver on the panel. • This information is pulled by the panel from AMX IR Receivers section of the TPD4 Project Properties > IR Emitters & Receivers tab.

  • Page 57: Time & Date Settings Page

    Screen Width: Displays the pixel width being used to display the incoming signal on the Modero panel. • The maximum available screen width on a NXD-500i panel is 800 pixels. Screen Height: Displays the pixel height being used to display the incoming signal on the Modero panel.

  • Page 58: Audio Settings Page

    • Select the Second field and use the UP/DN buttons to alter the second value (range = 0 - 59). NXD-500i touch panels do not have an onboard clock. This page both receives and sets the time and date of the NetLinx Master.

  • Page 59: Supported Sampling Rates For Wav

    Supported sampling rates for WAV The following is a listing of supported sampling rates associated for WAV files played on a NXD-500i panel. Some WAV files currently played on other Modero panels may not work on a NXD-500i. The supported sampling rates for WAV...

  • Page 60: Protected Setup Page

    • Use the Security button to display one of three security settings: Standard, Secure, and DoD. Pressing this button opens a popup window allowing changes to the Security Profile. Note: Refer to the Security Settings on page 50 for important information on using this feature. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 61 • The Remove User Pages button allows the removal of all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages). - Pressing this button launches a Confirmation dialog (FIG. 47) which asks to confirm your selection.

  • Page 62: Security Settings

    For more information on configuring AMX devices for a secure environment, please refer to the guide Security Profiles: Configuring AMX Devices For Installation Into a Secure Environment, available at www.amx.com.

  • Page 63: System Settings Page

    • The panel belongs to the DNS domain. Ethernet Mode: Sets the speed of the Ethernet connection to the panel. • Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 64 Setup Pages and Descriptions System Settings Page (Cont.) IP Settings: (Cont.) MAC Address: Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. Master Connection: Sets the NetLinx Master communication values: Type: Sets the NetLinx Master to communicate with the panel via either USB or Ethernet.

  • Page 65: Calibrate Page

    These panels contain a VNC server that allows them to accept a connection from any other device running a VNC client. Once a connection is established to that target device, the client can control the touch panel remotely. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 66 Refer to the Using G4 Web Control to Interact with a G4 Panel section on page 32 for more detailed instructions on how to use the G4 Web Control page with the new web-based NetLinx Security application. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 67: Other Settings

    Saves all changes and returns to the previous page. Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 68: Setting The Image Cache

    Press the Cache button in the Other Settings popup menu. This opens the Cache Settings page. Set the cache expiration in the field Flash/RAM Cache Expires. The Up and Down arrows increment through the available time frames. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 69: Clearing The Image Cache

    The PASSWORD 1, 2, 3, 4 and 5 (protected) buttons open a keyboard to enter alphanumeric values associated to the selected password group. Note: Clearing Password #5 removes the need to enter a password before accessing the Protected Setup page. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 70: Sensor Settings

    NetLinx Master (set in TPD4) (read-only). • The Motion Sensor Channel field indicates the channel used to report the motion sensor channel back to the NetLinx Master (set in TPD4) (read-only). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 71: Making The Most Of The Light Bargraph

    Setting up your touch panel as a telephone requires that you set it up as one in the CSG SIP Communications Gateway. Refer to the CSG SIP Communications Gateway Operation/Reference Guide for information on setting up your touch panel to work as a telephone. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 72 This option enables you to enter the IP address or DNS name of the Simple Traversal of UDP through NATs (STUN) server. This field is optional. Local Domain: This is the realm used for authentication. This field is optional. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 73: Tools

    Saves all changes and returns to the previous page. Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 74: Checking The Panel Connection Logs

    The options on the Panel Statistics page allow you to track the connection status for the panel. The Panel Statistics page tracks ICSP messages, Blink messages, and Ethernet connection statistics (FIG. 61). FIG. 61 Panel Statistics page Features on this page are as follows: NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 75: Checking The Panel Statistics

    • Missed - The total Blink messages missed by the panel in the last 15 minutes. Ethernet Statistics The Ethernet connection statistics for the panel. Wireless Statistics Since the NXD-500i does not have wireless capability, this field is disabled. Clear Clears all panel connection statistics. Refresh Refreshes all panel connection statistics.

  • Page 76: Connection Utility

    The Connection Information notes the IP of the connected master and the IP of the panel. The Connection Statistics show the current quality of the panel connection. Push Close when finished. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 77: Programming

    Programming Overview The NXD-500i may be programmed, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System In all programming examples - Panel is used in place of these values and represents all Modero panels).

  • Page 78: Dpg

    = 1 - 50 ASCII characters. Name of the page the popup is displayed On. hide effect time = Given in 1/10ths of a second. Example: SEND_COMMAND Panel,"'@PHT-Popup1;50'" Sets the Popup1 hide effect time to 5 seconds. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 79: Ppa

    • This command works in the same way as the 'Clear Group' command in TPDesign 4. Syntax: "'@PPK-<popup page name>'" Variable: popup page name = 1 - 50 ASCII characters. Name of the popup page. Example: SEND_COMMAND Panel,"'@PPK-Popup1'" Kills the popup page ’Popup1’ on all pages. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 80: Ppm

    @PPX Close all popups on all pages. This command works in the same way as the 'Clear All' command in TPDesign 4. Syntax: "'@PPX'" Example: SEND_COMMAND Panel,"'@PPX'" Close all popups on all pages. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 81: Pse

    = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'PPOF-Popup1;Main'" Deactivates the popup page ’Popup1’ on the Main page. Example 2: SEND_COMMAND Panel,"'PPOF-Popup1'" Deactivates the popup page ’Popup1’ on the current page. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 82: Ppog

    = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'PPON-Popup1; Main'" Activates the popup page ’Popup1’ on the Main page. Example 2: SEND_COMMAND Panel,"'PPON-Popup1'" Activates the popup page ’Popup1’ on the current page. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 83: Programming Numbers For Colors, Fonts, And Borders

    Very Light Cyan Black Light Cyan TRANSPARENT Cyan Medium Cyan Dark Cyan Very Dark Cyan Very Light Aqua Light Aqua Aqua Medium Aqua Dark Aqua Very Dark Aqua Very Light Blue Light Blue NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 84: Font Styles And Id Numbers

    No border 10-11 Picture frame Single line Double line Double line Bevel-S Quad line Bevel-M Circle 15 22-23 Circle 15 Single line 24-27 Neon inactive-S Double line 40-41 Diamond 55 Quad line NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 85: Tpd4 Border Styles By Name

    Menu Top Rounded 85 Neon Active -L Menu Top Rounded 95 Neon Active -S Menu Top Rounded 105 Neon Inactive -L Menu Top Rounded 115 Neon Inactive -S Menu Top Rounded 125 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 86 Menu Left Rounded 165 Menu Left Rounded 95 Menu Left Rounded 175 Menu Left Rounded 105 Menu Left Rounded 185 Menu Left Rounded 115 Menu Left Rounded 195 Menu Left Rounded 125 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 87: Telnet Commands

    • The panel should be positioned (installed) and operating in the expected light conditions that the panel will be expected to be used. Note: There is no response to indicate that the command is complete. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 88: Button Commands ("^")

    1 = Off state and 2 = On state). new text = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^BAT-520,1,Enter City'" Appends the text 'Enter City' to the button’s OFF state. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 89: Bau

    = Refer to theRGB Values for all 88 Basic Colors table on page 71 for more information. Example: SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,12'" SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,Yellow'" SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,#F4EC0A63''" SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,#F4EC0A'" Sets the Off state fill color by color number. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 90: Bct

    = Refer to theText Area Input Masking section on page 124 for character types. Example: SEND_COMMAND Panel,"'^BIM-500,AAAAAAAAAA'" Sets the input mask to ten ’A’ characters, that are required, to either a letter or digit (entry is required). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 91: Bmc

    Copies the OFF state border, font, Text, bitmap, icon, fill color and text color of the button with a variable text address of 315 onto the OFF state border, font, Text, bitmap, icon, fill color and text color of the button with a variable text address of 150. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 92: Bmi

    1 = Off state and 2 = On state). name of bitmap/picture = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^BMP-500.504&510.515,1,bitmap.png'" Sets the OFF state picture for the buttons with variable text ranges of 500-504 & 510-515. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 93: Bnc

    = 0 (invisible) - 255 (opaque). Example: SEND_COMMAND Panel,"'^BOP-500.504&510.515,1,200'" Example 2: SEND_COMMAND Panel,"'^BOP-500.504&510.515,1,#C8'" Both examples set the opacity of the buttons with the variable text range of 500-504 and 510-515 to 200. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 94: Bor

    Sets the border by number (#10) to those buttons with the variable text range of 500-504 & 510-515. SEND_COMMAND Panel,"'^BOR-500.504&510,AMX Elite -M'" Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. Note: The border style is available through the TPDesign4 border-style drop-down list. Refer to theTPD4 Border Styles by Name table on page 73 for more information.

  • Page 95: Bsm

    Variable: variable text address range = 1 - 4000. network password = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^BVP-500,PCLOCK'" Sets the password to PCLOCK for the specific PC control button. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 96: Bvt

    ClearA[ll] - Clear all popup pages from all pages page name = 1 - 50 ASCII characters. Example: SEND COMMAND Panel,"'^DPF-409,Prev'" Deletes the assignment of a button from flipping to a previous page. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 97: Ena

    2 = Invert vertical axis 3 = Invert both axis locations For a bargraph 1 = Invert , 0 = Non Invert Example: SEND_COMMAND Panel,"'^GIV-500,3'" Inverts the joystick axis origin to the bottom right corner. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 98: Glh

    = 1 - 4000. color value = Refer to the RGB Values for all 88 Basic Colors table on page 71. Example: SEND_COMMAND Panel,"'^GSC-500,12'" Changes the bargraph or joystick slider color to Yellow. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 99: Gsn

    Zero can be used for an absolute position Example: SEND_COMMAND Panel,"'^JSB-500.504&510.515,1&2,1'" Sets the off/on state picture alignment to upper left corner for those buttons with variable text ranges of 500-504 & 510-515. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 100: Jsi

    Sets the mouse button mode to ’Left Mouse Click’. ^MDC Turn On the ’Mouse double-click’ feature for the virtual PC. Syntax: "'^MDC'" Example: SEND COMMAND Panel,"'^MDC'" Sets the mouse double-click for use with the virtual PC. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 101: Sho

    Note: Move should be used with caution. This setting can generate a significant amount of traffic to the master depending on user interaction. Example command: "'^TOP-1'" Example Response: "String Event: Text: Press,320,480" Example Response: "String Event: Text: Release,320,480" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 102: Txt

    SEND_COMMAND TP,"'^UNI-1,0,0041'" Note: Unicode is always represented in a HEX value. TPD4 generates (through the Text Enter Box dialog) unicode HEX values. Refer to the TPDesign4 Instruction Manual for more information. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 103: Text Effect Names

    // ON state Text Color CUSTOM_EVENT[TP,529,1014] // Border Name CUSTOM_EVENT[TP,529,1015] // Opacity SEND_STRING 0,"'ButtonGet Id=',ITOA(CUSTOM.ID),' Type=',ITOA(CUSTOM.TYPE)" SEND_STRING 0,"'Flag =',ITOA(CUSTOM.FLAG)" SEND_STRING 0,"'VALUE1 =',ITOA(CUSTOM.VALUE1)" SEND_STRING 0,"'VALUE2 =',ITOA(CUSTOM.VALUE2)" SEND_STRING 0,"'VALUE3 =',ITOA(CUSTOM.VALUE3)" SEND_STRING 0,"'TEXT =',CUSTOM.TEXT" SEND_STRING 0,"'TEXT LENGTH =',ITOA(LENGTH_STRING(CUSTOM.TEXT))" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 104: Bcb

    The result sent to the Master would be: ButtonGet Id = 529 Type = 1011 Flag VALUE1 = 1 VALUE2 = 9 VALUE3 = 0 TEXT = #222222FF TEXT LENGTH = 9 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 105: Bcf

    The result sent to Master would be: ButtonGet Id = 529 Type = 1013 Flag VALUE1 = 1 VALUE2 = 9 VALUE3 = 0 TEXT = #FFFFFEFF TEXT LENGTH = 9 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 106: Bmp

    Gets the button 'OFF state' opacity information. The result sent to the Master would be: ButtonGet Id = 529 Type = 1015 Flag VALUE1 = 1 VALUE2 = 200 VALUE3 = 0 TEXT TEXT LENGTH = 0 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 107: Brd

    Gets the button 'OFF state' word wrap flag status information. The result sent to the Master would be: ButtonGet Id = 529 Type = 1010 Flag VALUE1 = 1 VALUE2 = 1 VALUE3 = 0 TEXT TEXT LENGTH = 0 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 108: Fon

    Gets the button 'OFF state' icon index information. The result sent to the Master would be: ButtonGet Id = 529 Type = 1003 Flag VALUE1 = 2 VALUE2 = 12 VALUE3 = 0 TEXT TEXT LENGTH = 0 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 109: Jsb

    Gets the button 'OFF state' icon justification information. The result sent to the Master would be: ButtonGet Id = 529 Type = 1006 Flag VALUE1 = 1 VALUE2 = 6 VALUE3 = 0 TEXT TEXT LENGTH = 0 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 110: Jst

    The result sent to the Master would be: ButtonGet Id = 529 Type = 1009 Flag VALUE1 = 1 VALUE2 = 9 VALUE3 = 0 TEXT = #5088F2AE TEXT LENGTH = 9 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 111: Tef

    The result sent to the Master would be: ButtonGet Id = 529 Type = 1001 Flag VALUE1 = 1 VALUE2 = 14 VALUE3 = 1 TEXT = This is a test TEXT LENGTH = 14 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 112: Panel Runtime Operations

    AKEYR Remove the Keyboard/Keypad. Remove keyboard or keypad that was displayed using 'AKEYB', 'AKEYP', 'PKEYP', @AKB, @AKP, @PKP, @EKP, or @TKP commands. Syntax: "'AKEYR'" Example: SEND COMMAND Panel,"'AKEYR'" Removes the Keyboard/Keypad. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 113: Akp

    = 0 - 100. Example: SEND COMMAND Panel,"'@BRT-70'" Sets the brightness level to 70. DBEEP Output a double beep. Syntax: "'DBEEP'" Example: SEND COMMAND Panel,"'DBEEP'" Outputs a double beep. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 114: Ekp

    SEND COMMAND Panel,"'SETUP'" Sends the panel to the Setup Page. SLEEP Force the panel into screen saver mode. Syntax: "'SLEEP'" Example: SEND COMMAND Panel,"'SLEEP'" Forces the panel into screen saver mode. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 115: Sou

    SEND COMMAND Panel,"'@VKB'" Pops-up the virtual keyboard. WAKE Force the panel out of screen saver mode. Syntax: "'WAKE'" Example: SEND COMMAND Panel,"'WAKE'" Forces the panel out of the screen saver mode. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 116: Input Commands

    ASCII character set. Syntax: "'^VKS-<string>'" Variable: string = Only 1 string per command/only one stroke per command. Example: SEND COMMAND Panel,"'^VKS-'8" Sends out the keystroke 'backspace' to the G4 application. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 117: Embedded Codes

    ($9B) SYSRQ ($9C) ($9D) Windows ($9E) Menu ($9F) Up Arrow ($A0) Down Arrow ($A1) Left Arrow ($A2) Right Arrow ($C0) CTRL key up ($C1) ALT key up ($C2) Shift key up NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 118: Panel Setup Commands

    = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). resource name = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^BBR-700,1,Sports_Image'" Sets the resource name of the button to ’Sports_Image’. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 119: Raf

    "'^RSR-<resource name>,<refresh rate>'" Variable: resource name = 1 - 50 ASCII characters. refresh rate = Measured in seconds. Example: SEND_COMMAND Panel,"'^RSR-Sports_Image,5'" Sets the refresh rate to 5 seconds for the given resource (’Sports_Image’). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 120: Raf, ^Rmf - Embedded Codes

    Set the value of the preserve flag. ’%V <0-1>’ Default is 0. Currently preserve has no function. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 121: Escape Sequences

    Older hardware or newer hardware that has intercom support disabled with not respond to this command. Syntax: SEND_COMMAND <DEV>,"'^MODEL?'" Variables: None. Example: SEND_COMMAND TP1,"'^MODEL?'" Panel response string if intercom enabled: ^MODEL-MVP-8400i NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 122: Icm

    Syntax: SEND_COMMAND <DEV>,"'^ICE'" Variables: None. Example: SEND_COMMAND TP1,"'^ICE'" SEND_COMMAND TP2,"'^ICE'" Terminates an intercom call between two panels. ^ICM-TALK See ^ICM on page 110. Syntax: SEND_COMMAND <DEV>,"'^ICM-TALK'" Variables: None. Example: SEND_COMMAND TP1,"'^ICM-TALK'" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 123: Icm-Listen

    Variables: None. Example: SEND_COMMAND TP1, "^ICM-MUTEMIC,1" ^ICM-SPEAKERLEVEL Set the speaker level during an intercom call. Syntax: SEND_COMMAND <DEV>, "^ICM-SPEAKERLEVEL,55" Variables: Valid levels are from 0 to 100. Example: SEND_COMMAND TP1, "^ICM-SPEAKERLEVEL,55" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 124: Panel Ir Commands

    The ^IRS command is needed to enable the received AMX 38K or 455k. In some cases, both of these ports cannot be enabled at the same time.

  • Page 125: Sip Commands

    = The identifying number of the connection. state = IDLE, HOLD, or CONNECTED extn = The local extension of this panel (see Example) Example: SEND_COMMAND Panel,"'^PHN-LINESTATE, 1, IDLE, 2, CONNECTED, SIP, <extn>'" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 126: Phn-Answer

    ^PHN-AUTOANSWER Enables (1) or disables (0) the auto-answer feature on the phone. Syntax: "’^PHN-AUTOANSWER, <state>’" Variable: state = 0 (Disable) or 1 (Enable) Example: SEND_COMMAND Panel,"'^PHN-AUTOANSWER, 1'" Enables the auto-answer feature. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 127: Phn-Autoanswer

    Enables or disables the privacy feature on the phone (do not disturb). Syntax: "’^PHN-PRIVACY, <state>’" Variable: state = 0 (Disable) or 1 (Enable) Example: SEND_COMMAND Panel,"'^PHN-PRIVACY, 1'" Enables the privacy feature. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 128: Phn-Setup-Domain

    = The password for the user name Example: SEND_COMMAND Panel,"’^PHN-SETUP-PASSWORD,6003’" ^PHN-SETUP-PORT Sets the port number for the proxy server. Syntax: "’^PHN-SETUP-PORT,<port>’" Variable: port = The port for the proxy server Example: SEND_COMMAND Panel,"’^PHN-SETUP-PORT,5060’" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 129: Phn-Setup-Proxyaddr

    IP = The IP address for the STUN server Example: SEND_COMMAND Panel,"’^PHN-SETUP-STUNADDR,192.168.223.111’" ^PHN-SETUP-USERNAME Sets the user name for authentication with the proxy server. Syntax: "’^PHN-SETUP-USERNAME,<username>’" Variable: username = The user name (usually the phone extension) Example: SEND_COMMAND Panel,"’^PHN-SETUP-USERNAME,6003’" NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 130 Programming NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 131: Troubleshooting

    • Select Diagnostics > Network Address from the Main menu and verify the System number. • If the IP Address field is still empty, give the Modero a few minutes to negotiate a DHCP Address and try again. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
  • Page 132 PC, either within the NetLinx Studio or TPDesign4 connecting. applications. • Remove the USB connector from the panel and close any AMX applications. • Reboot the panel. • Launch the AMX application and attempt reconnect to the panel.
  • Page 133 • Inability to make further downloads to the panel. May get "directory" errors, "graphics hierarchy" errors, etc.… indicating problems with the Flash memory. • Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Flash memory.
  • Page 134 Troubleshooting NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 135: Appendix A - Text Formatting Codes

    Example Format Display $A out of $R 32 out of 100 $A of 0 - $R 32 of 0 - 100 $V of $L - $H 532 of 500 - 600 NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 136: Text Area Input Masking

    - Sets the input mask for the specified addresses. (see the ^BIM section on page 90). ^BIM • ^BMF subcommand - sets the input mask of a text area (see the ^BMF section on page 92). NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 137: Input Mask Ranges

    In the above example, if the overflow flag was set, the first example will place the "1" into the previous logical field and the second example will place "12" in the previous logical field. NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...

  • Page 138: Input Mask Output Examples

    (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment name by the program of company-info- home.asp (Active Server Page).

  • Page 139: Special Escape Sequences

    Y Resolution of current panel mode/file X Resolution of current button Y Resolution of current button Name of button Current state Address Code Address Port Channel Code Channel Port Level Code Level Port NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom...
