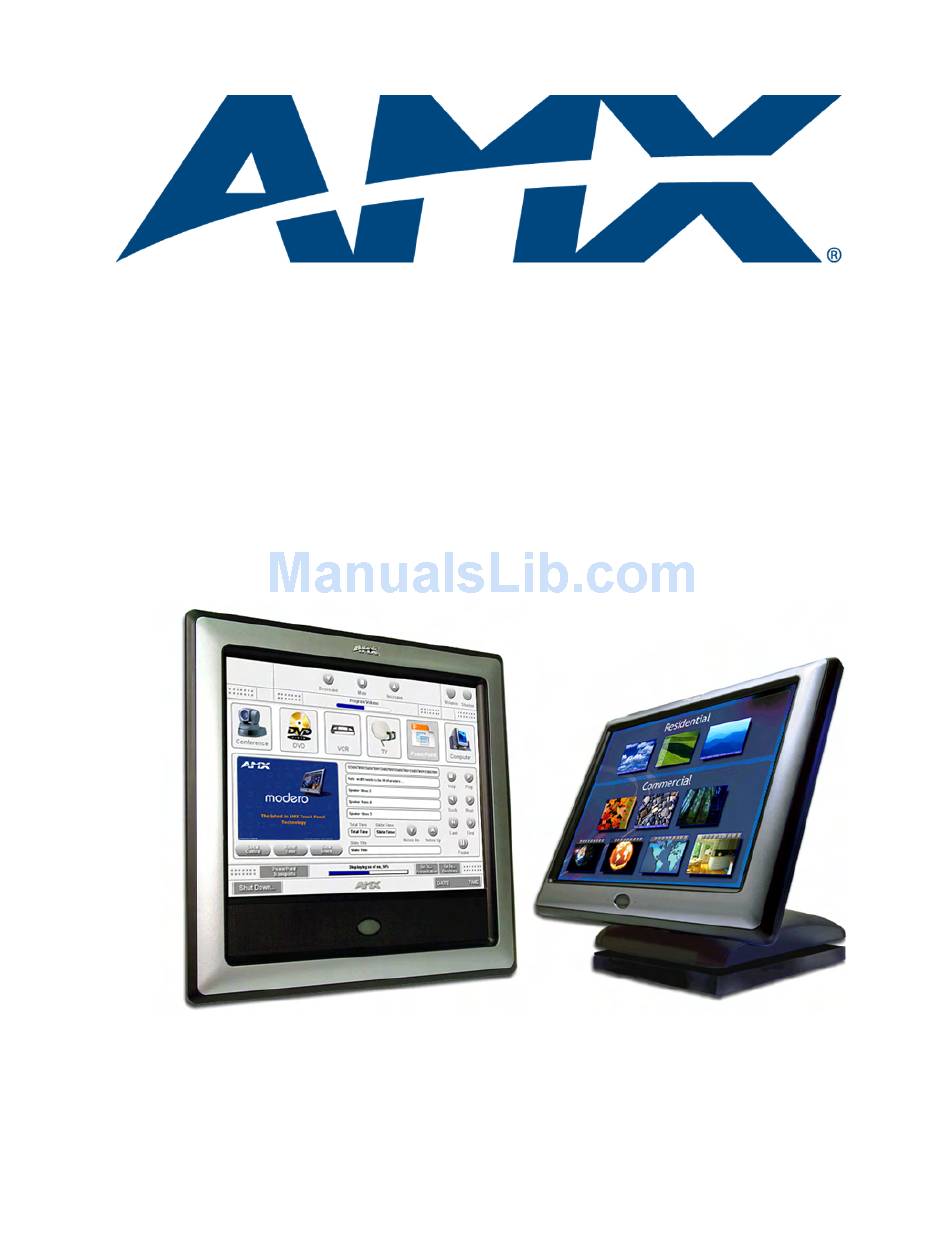

Page 1 Operation/Reference Guide ® 12" & 15” Modero Touch Panels NXD/T-CA12, NXD/T-CV12 NXD/T-CA15, NXD/T-CV15 Touch Panels L a s t R e v i s e d : 8 / 0 3 / 2 0 1 0...
Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ......................1 Modero Color Active (CA) Panels ................1 Product Specifications ....................2 Color Active Touch Panels - Connector Layout ............5 Modero Color Video (CV) Panels ................5 Product Specifications ....................6 Color Video Modero Connectors ................9 Touch Panel Accessories ...................11 Modero Video Kits....................
Page 4 Table of Contents Step 2: Installing the internal EXM memory module ............. 26 Step 3: Replacing the NXD Outer Housing ..............26 NXT-BP Power Pack (FG2255-10) ................26 Product Specifications ....................26 NXA-BASE/B Battery Base Kit (FG2255K) .............. 27 Product Specifications ....................27 Checking the NXT-BP battery charge................
Page 5 Table of Contents Panel Calibration ....................51 Overview ........................ 51 Calibrating the Modero Panel................. 51 Testing your Calibration ....................52 Configuring Communication ................53 Overview ........................ 53 Modero Setup and System Connection ..............53 Master Connection - Using ICSNet ................. 55 Secondary Connection Page - Wireless Access Overview ........56 IP Routing........................
Page 6 Table of Contents Firmware Pages and Descriptions ..............81 Overview ........................ 81 Setup Navigation Buttons..................81 Setup Page ......................82 Project Information Page....................84 Panel Information Page ....................85 Time & Date Setup Page ....................86 Volume Page ......................... 87 Supported sampling rates for WAV................88 Video Setup Page......................
Page 7 Table of Contents PAGE ............................109 PPOF ............................109 Programming Numbers..................110 RGB triplets and names for basic 88 colors ..............110 PPOG ............................110 PPON ............................110 Font styles and ID numbers..................112 Border styles ....................... 113 "^" Button Commands ..................114 ^ANI ............................114 ^APF ............................115 ^BAT ............................115 ^BAU ............................115...
Page 8 Table of Contents ^GLL ............................126 ^GRD ............................126 ^GRU ............................126 ^GSC ............................126 ^GSN ............................127 ^ICO ............................127 ^JSB ............................127 ^JSI ............................128 ^JST ............................128 ^MBT ............................128 ^MDC ............................. 129 ^SHO ............................129 ^TEC ............................129 ^TEF ............................
Page 9 Table of Contents SETUP ............................142 SHUTDOWN ..........................142 SLEEP ............................142 @SOU ............................142 @TKP ............................142 TPAGEON ..........................142 TPAGEOFF ..........................142 Input Commands....................143 ^CAL ............................143 ^KPS ............................143 ^VKS ............................143 @VKB ............................143 WAKE ............................143 Embedded Codes ....................144 Panel Setup Commands ..................145 ^MUT ............................145 @PWD .............................145 ^PWD ............................145 @RPP ............................145...
Page 10 Table of Contents Troubleshooting .....................149 Appendix ......................153 Text Formatting Codes for Bargraphs/Joysticks........... 153 Text Area Input Masking..................154 Input mask character types ..................154 Input mask ranges ....................... 155 Input mask next field characters.................. 155 Input mask operations....................155 Input mask literals ....................... 155 Input mask output examples ..................
Page 11: Introduction
The 12" and 15" Modero Color Active (CA) and Color Video (CV) LCD Touch Panels (FIG. 1) are based on the latest display technology and support AMX's 4th generation graphics (G4) which provide rich colors and high contrast images. The new G4 graphics technology is supported by the release of the latest TPDesign4 Touch Panel Design Program (version 2.5 or higher).
Page 12: Product Specifications
Product Specifications Specifications for Color Active Touch Panels Dimensions 12" (HWD): • NXD-CA12 (with faceplate): 12.38" x 12.59" x 3.25" (31.43 cm x 31.97 cm x 8.25 cm) • NXT-CA12 (Fully raised): 10.91" x 12.34" x 12.50" (27.70 cm x 31.33 cm x 31.75 cm) •...
Page 13 Rear Panel Components: (Side panel location on NXD-Wall Mount panels) PCMCIA card slot: • Provides optional wireless connectivity (using the NXA-WC80211b AMX Wireless Interface Card). Refer to the NXA-WC80211b Wireless Interface Card (FG2255-02) section on page 19 for more information.
Page 14 • NXA-RK15 (FG2904-51) - RackMount kit for 15" Wall Mount touch panels (NXD versions only). • NXA-WC80211b (FG2255-02) - AMX 802.11b Wireless Interface Card. • NXT-BP (FG2250-10) - Battery pack for Table Top panels. Provides ~ 4 hours of continual operation (NXT versions only) 12”...
Page 15: Color Active Touch Panels - Connector Layout
Introduction Specifications for Color Active Touch Panels (Cont.) Optional Accessories (Cont.): • NXT-CHG (FG2250-50) - Battery charger for NXT-BP batteries. Charges batteries in ~ 8 hours. • PSN4.4 Power Supply (FG423-45) • PSN6.5 Power Supply (FG423-41) • Upgrade Extended Memory: NXA-EXM128M - 128 MB memory card (FG079-01) NXA-EXM256M - 256 MB memory card (FG079-02) •...
Page 16: Product Specifications
Introduction These Video Panels include a built-in microphone, left/right speakers, audio/headphone connector, and an included audio/video breakout box. The optional NXA-AVB Audio/Video Breakout Box allows CV panels to accept either Composite or S-Video from standard video output devices. These panels are ideally suited for displaying full motion video and audio with overlay graphics for applications with demanding visual requirements.
Page 17 Introduction Specifications for Color Video Touch Panels (Cont.) 12" Panel LCD Parameters: • Brightness (luminance): 250 cd/m • Channel transparency: 8-bit Alpha channel transparency • Contrast ratio: 300:1 • Display area (HW): 183.10 mm x 247.40 mm • Display colors: 256K (18-bit color depth) •...
Page 18 Rear Panel Components: (Side panel location on NXD-Wall Mount panels) PCMCIA card slot: • Provides optional wireless connectivity (using the NXA-WC80211b AMX Wireless Interface Card). Refer to the NXA-WC80211b Wireless Interface Card (FG2255-02) section on page 19 for more information.
Page 19: Color Video Modero Connectors
• NXA-RK15 (FG2904-51) - RackMount kit for 15" Wall Mount touch panels (NXD versions). • NXA-WC80211b (FG2255-02) - AMX 802.11b Wireless Interface Card. • NXT-BP (FG2250-10) - Battery pack for Table Top panels. Provides 4 hours of continual operation (NXT versions only) •...
Page 20 Introduction 12” and 15” Modero Touch Panels...
Page 21: Touch Panel Accessories
Touch Panel Accessories Touch Panel Accessories Modero Video Kits The optional Video Kit (only for CV panels) includes both a Color Video panel and an NXA-AVB Breakout Box. Modero Panels are uniquely and ergonomically designed for Table Top (NXT) and Wall Mount (NXD) environments.
Page 22: Installing The Nxa-Avb Breakout Box
Accessories: • 4-pin Phoenix connector (41-5047) • 6-pin Phoenix connector (41-5063) • Rack Mount Kit (KA2250-40) with mounting bracket (62-2254-02) Other AMX • AC-RK Accessory RackMount Kit (FG515) Equipment: • Modero Table Top Cable (CA2250-50) • PSN4.4 power supply (FG423-45) •...
Page 23: Wiring The Nxa-Avb Connectors And Cables
Mic Out port. This signal can be fed as a Line Level In to either an amplifier or an AMX VOL card. Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal can be connected to this output.
Page 24: Wiring The Nxa-Avb For Unbalanced Audio
Touch Panel Accessories • Video In BNCs: Feeds either Composite/S-Video Luma or S-Video Chroma signals into the NXA-AVB. This feed is then redirected out to a Modero panel through the front Audio/Video CAT5 port. • ICSNet: RJ-45 connector routes data to the Modero through the front ICSNet port. These connections use a standard CAT5 Ethernet cable to provide communication between the target touch panel, breakout box, and NetLinx Master.
Page 25: Modero Table Top Cable (Ca2250-50)
Included Accessories: • One Modero Table Top Cable (CA2250-70) Other AMX Equipment: Note: All touch panels routing an Audio/Video signal from a breakout box must use the appropriate number of CAT5 Suppression Ferrites which are included as part of installation kits accompanying your particular Modero panel.
Page 26: Wiring Information For The Modero Table Top Cable
(non-terminated) cable from Liberty Wire and Cable under the nomenclature "AMX Table Top Cable - Modero" (phone#: (800) 530 8998 or +1-719-388-7518). When building a custom Table Top cable, please refer to the table below to calculate the maximum length of the cable for your particular installation/setup.
Page 27 Touch Panel Accessories The following table provides the wiring information (color coding) for each of the three available cable connectors on each side of the Modero Table Top Cable. Modero Table Top Cable Wiring Table Wire Connector 1 Connector 2 Connector 3 White/Orange White/Orange...
Page 28: Installing Cat5 Suppression Ferrites
Touch Panel Accessories Each bundle of 4 twisted pairs includes a colored tape indicator for identification. Installing CAT5 Suppression Ferrites Before connecting the RJ-45 cables to the Modero Touch Panel, install the necessary number of CAT5 Suppression Ferrites (FIG. 15) to their appropriate locations. These ferrites come as part of the Installation Kits mentioned in the previous Specification table (page 15).
Page 29: Nxa-Wc80211B Wireless Interface Card (Fg2255-02)
Each bundle of 4 twisted pairs includes a colored tape indicator for identification. NXA-WC80211b Wireless Interface Card (FG2255-02) Modero touch panels can connect to a wireless network using an optional internal AMX 802.11b compatible Wi-Fi Wireless Interface Card (FG2255-02). This interface card (FIG. 17) is a wireless LAN PC Card that is also IEEE802.11b compatible, consistent with a PCMCIA Standard Release 2.0, and meets Type II Extended...
Page 30: Installing The Wireless Card
Every Modero panel is shipped with two factory default modules: an EXM Memory Module and a Compact Flash card. Each module has 64 MB of storage size. The Compact Flash card is factory programmed with specific panel firmware. These components can be ordered from AMX in several different upgrade sizes (as listed in the following table):...
Page 31: Installation Of The Compact Flash Card (Table Top Panel)
Touch Panel Accessories Installation of the Compact Flash Card (Table Top Panel) These procedures involves removing the outer housing, installing the upgrade card, and then securely replacing the outer housing back onto the NXT panel. Step1: Removing the existing NXT Outer Housing Carefully detach all connectors from the rear of the touch panel.
Page 32: Step 2: Installing The Upgrade Compact Flash Card
Touch Panel Accessories Speaker grills Outer Housing Tilt bracket Memory Module Base Compact Flash FIG. 19 Location of the Compact Flash and memory modules on NXT panel main board Step 2: Installing the Upgrade Compact Flash Card Discharge any static electricity from your body by touching a grounded metal object. Locate the 64 MB Compact Flash card (FIG.
Page 33: Step 3: Replacing The Nxt Outer Housing
Touch Panel Accessories If additional internal components need to be installed, it is recommended that those installations be completed before the housing is replaced. Step 3: Replacing the NXT Outer Housing With the card securely installed, tilt the LCD back to a 45° and then gently slide-on the outer housing (towards the LCD) until the it is aligned over the installation holes and the tilt bracket prevents any further forward movement (FIG.
Page 34 Touch Panel Accessories Outer housing (back box) Remove these 2 screws and the Stereo Output nut before removing the outer housing Stereo Output nut I/O connector plate FIG. 22 Screw locations on the attached I/O connector plate on an NXD panel Remove the I/O connector plate by using a grounded Phillips-head screwdriver to remove the two screws and slide the I/O connector plate away from the back box housing.
Page 35: Step 2: Installing The Upgrade Compact Flash Card (Nxd)
Touch Panel Accessories Step 2: Installing the Upgrade Compact Flash Card (NXD) Complete the procedures outline within the Step 2: Installing the Upgrade Compact Flash Card section on page 22 and then continue with the following Step 3. Step 3: Replacing the NXD Outer Housing Once the card has been securely installed, gently place the outer housing back onto the metallic panel casing (with the connector opening on the right-side of the panel) and align the four pan-head Housing Screw holes along the edges of the outer housing.
Page 36: Step 3: Replacing The Nxt Outer Housing
Touch Panel Accessories Verify the new EXM Memory Module is correctly positioned using the alignment groove located on the connector (as seen in FIG. 24 above). While maintaining the 45° angle alignment on the new module, push it in firmly until the contact pins are completely inside the connector.
Page 37: Nxa-Base/B Battery Base Kit (Fg2255K)
Touch Panel Accessories NXA-BASE/B Battery Base Kit (FG2255K) The NXA-BASE/B Battery Base is a Modero accessory that allows the Modero Table Top touch panels (NXT) to function off the collective charge of two internally connected NXT-BP batteries (FG2255-10). The base provides both power and battery information to the panel via the panel interface connector (FIG.
Page 38: Checking The Nxt-Bp Battery Charge
Touch Panel Accessories Checking the NXT-BP battery charge Press the Battery Life Indicator button (FIG. 27) once to illuminate the Battery Life LEDs and display the percent charge remaining on the battery (this indication lasts a few seconds). Battery Life (Charge) Display Battery Life Indicator button FIG.
Page 39: Installing An Nxt-Bp Into The Nxa-Base/B
Repeat steps 2 through 4 for the other battery. Apply a small amount of pressure to close the battery compartment until the compartment latches. After a few seconds, the panel will turn On and the AMX logo will appear (indicating the panel is receiving power.
Page 40: Charging The Nxt-Bp Batteries With The Nxa-Base/B
Touch Panel Accessories NXT-BP Battery #2 Battery Connectors Interface connector Battery Connector Port FRONT Battery #2 slot NXT-BP Battery #1 Battery Compartment FIG. 30 Battery installation procedure Charging the NXT-BP batteries with the NXA-BASE/B Follow the procedures from the previous sub-section to attach the NXT touch panel to the NXA-BASE/B.
Page 41: Nxt-Chg Battery Charger Kit (Fg2255-50K)
Touch Panel Accessories NXT-CHG Battery Charger Kit (FG2255-50K) The NXT-CHG Kit includes one charger and two batteries. The optional NXT-CHG Modero Power Station (FIG. 31) is a two-slot, stand-alone battery charger that can be used to recharge up to two NXT-BP batteries. The batteries are charged in the order they are inserted into the charger.
Page 42: Reading Nxt-Chg Led Indicator
Touch Panel Accessories Reading NXT-CHG LED Indicator FIG. 32 shows the components on the NXT-CHG Smart Battery Charger. Slot 1 (recalibration) Slot 2 Slot 1 Slot 2 Recalibrate Pushbutton FIG. 32 Component locations on the NXT-CHG There is one LED indicator on the front of each battery slot that indicates the status of that slot. The blink patterns for these LEDs are described below: •...
Page 43: Installation Procedures: 12" And 15" Panels
Installation Procedures: 12" and 15" Panels Installation Procedures: 12" and 15" Panels Overview NXT panels are mounted onto flat (horizontal) surfaces in either a stand-alone or combo (NXT atop an NXA- BASE/B battery base) configuration. NXD panels are installed into either a pre-wall surface (using a CB- TP12/CB-TP15 conduit/wallbox) or a solid surface (using either solid surface or drywall screws).
Page 44: Installing The Mp-Tp12/15 Back Box
Installation Procedures: 12" and 15" Panels Remove the I/O connector plate by using a grounded Phillips-head screwdriver to turn the two screws and slide the I/O connector plate away from the back box housing. Remove the four pan-head Housing Screws from the rear of the NXD unit (FIG. 33). These screws secure the back box to the internal panel casing.
Page 45: Cable Installation For The Mp-Tp12/15 Back Box
Installation Procedures: 12" and 15" Panels DO NOT REMOVE Twelve #6-32 securing screws MB-TP12/15 back box Connector Opening Strain relief grommet (Clip facing up) Rim of the strain relief grommet should lie flush against enclosure Securing hole locations (3 on each side) Internal panel casing Four (pan-head) Housing Screws Rear plastic cover...
Page 46 Insert the four provided #8-32 screws through the VESA mount’s four holes and then into the pre-drilled holes on the rear plastic cover. When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws.
Page 47: Pre-Wall Installation Of The Conduit Boxes
CLIP FACING UP VESA mount connection location (USE ONLY AMX PROVIDED #8-32 screws) FIG. 37 Installation of grommet into the rear plastic enclosure Refer to your particular VESA mount manufacturer’s installation procedures for further surface mounting procedures.
Page 48: Installation Of The Nxd Touch Panel
Installation Procedures: 12" and 15" Panels Stud Knockouts should be located on the left-side of the conduit box, alongside the connectors Drywall/ CB-TP Conduit Wallbox sheetrock Stud fastening holes Use the four #4-40 Mounting Screws to secure the NXD to the conduit box at these locations Mounting tabs...
Page 49 Installation Procedures: 12" and 15" Panels Stud Cable C - Optional CB-TP knockouts conduit/wallbox Mounting Tab Install the four #4-40 Installed flush screws into the places against the indicated SURFACE finished wall surface Do not use these tabs to mount the conduit /wallbox These are ONLY used to secure the main unit to the CB...
Page 50: Installing The Nxd Into Drywall Using Expansion Clips
Installation Procedures: 12" and 15" Panels Installing the NXD into drywall using Expansion Clips Expansion clips are mounted through the four oval holes located at the top and bottom of the panel. As the screw is tightened, the clip bends toward the insertion hole and into the wall. This bending creates a "grip" on the wall by either pressing onto the wall or by securing the drywall between the housing and the drywall clip.
Page 51 Installation Procedures: 12" and 15" Panels Notches are NOT SYMMETRICAL CUTOUT FRONT BEZEL FIG. 41 NXD 15-inch Wall Mount panel dimensions using expansion clips Connect all data and power wiring connectors to their corresponding locations along the side of the (un- powered) NXD touch panel.
Page 52 Tighten the drywall clip sets (screws and clips) until the Mounting Tabs are securely fastened and flush against the wall. The drywall clip set must be re-ordered from AMX if the drywall clip is bent accidentally during an installation or removed during a re-installation.
Page 53: Installing The Nxd Into A Flat Surface Using #4 Screws
Installation Procedures: 12" and 15" Panels Installing the NXD into a Flat Surface using #4 screws Mounting screws are secured through holes located at the left and right sides of the panel. Remove any screws or nails from the surface before beginning the cutout process. Cut out the surface for the 12-inch Wall Mount using the dimensions shown in FIG.
Page 54 Installation Procedures: 12" and 15" Panels CUTOUT FRONT BEZEL FIG. 44 NXD 15-inch Wall Mount panel dimensions using #4 mounting screws Remove the magnetic faceplate/bezel (A in FIG. 45) from the main NXD unit (B in FIG. 45) by gripping the faceplate and pulling with gentle outward force.
Page 55: Installing An Nxd Into An (Optional) Rack Mount Kit (Nxa-Rk12 Or Nxa-Rk15)
Installation Procedures: 12" and 15" Panels Attachment is done Flat surface along the edges of (can include a the cutout wall, podium, or Install the four (#4) other flat surface) mounting screws into the holes (screws not included) B - Main NXD unit consists of A - Faceplate the touch panel and housing (bezel)
Page 56 Installation Procedures: 12" and 15" Panels Insert the main 12-inch Modero unit into an NXA-RK12 (FIG. 46) or the 15-inch Modero into an NXA- RK15 (FIG. 47). Faceplate Rack mount frame (NXA-RK12) FIG. 46 NXD 12 inch Wall Mount panel installed into an NXA-RK12 Rack Mount Kit Faceplate Rack mount frame (NXA-RK15)
Page 57: Wiring Guidelines For The 12" And 15" Panels
Installation Procedures: 12" and 15" Panels Reconnect the terminal power connector on the PSN and apply power. Wiring Guidelines for the 12" and 15" Panels These Modero panels require 12 VDC power from a PSN NetLinx Power Supply to operate properly. The panels connect to the power supply via a mini 2-pin 3.5 mm mini-Phoenix connector.
Page 58: Audio/Video Rj-45 Connections/Wiring
Installation Procedures: 12" and 15" Panels ICSNet Pinout Information (EIA/TIA 568 B) Wire Color Function Polarity Orange/White Transmit Orange Transmit Green/White Blue Ground White/Blue 12 VDC Green White/Brown Receive TIA 568B Brown Receive 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 (female) (male)
Page 59: Ethernet 10/100 Base-T Rj-45 Connections/Wiring
Installation Procedures: 12" and 15" Panels Ethernet 10/100 Base-T RJ-45 Connections/Wiring FIG. 49 and the table below describe the pinouts, signals, and pairing for the Ethernet 10/100 Base-T RJ-45 connector and cable. A - Activity LED (yellow) L - Link LED (green) lights when lights when receiving or the Ethernet cables are connected transmitting Ethernet...
Page 60 Installation Procedures: 12" and 15" Panels 12” and 15” Modero Touch Panels...
Page 61: Panel Calibration
When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 50). AMX Splash Screen...
Page 62: Testing Your Calibration
Panel Calibration The request to touch the crosshairs is the first on-screen message Calibration successful is the second on-screen message that appears after the calibration process is completed On-screen crosshairs used for calibration of the touch device FIG. 52 Touch Panel Calibration Screens Testing your Calibration Press and hold down the on-screen Calibration button for 6 seconds to enter the Calibration Test page (FIG.
Page 63: Configuring Communication
Configuring Communication Configuring Communication Overview Communication between the Modero panel and the Master consists of using either ETHERNET (DHCP, Static IP) or ICSNet. Ethernet communication can be achieved through either a direct connection or through the use of the optional NXA-WC80211b wireless interface card. If you are currently using a Static IP Address, continue with the IP Settings section - Configuring a Static IP Address over Ethernet section on page 63.
Page 64 Configuring Communication FIG. 55 Protected Setup page Press the on-screen Reboot button to restart the panel and incorporate any changes. Before continuing, open NetLinx Studio 2.4. This program assists in developing a System Number, Master IP/URL, and Master Port number. Refer to your NetLinx Master’s instruction manuals for more information.
Page 65: Master Connection - Using Icsnet
Configuring Communication Master Connection - Using ICSNet Verify you are using the latest NetLinx Master firmware. Before beginning: Verify that an ICSNet cable is connected from either the rear (NXT model) or side (NXD model) of the panel to the NetLinx Master and from the Master to an ICSNet port. Verify that the NetLinx Master is receiving power and is turned On.
Page 66: Secondary Connection Page - Wireless Access Overview
Ethernet Communication from the panel can be direct (using an Ethernet cable) or indirect (through the NXA- WC80211b AMX Wireless Interface Card (FG2255-02) communicating to the Wireless Access Point (WAP)). In determining the Ethernet method of communication, the panel will always default first to the direct Ethernet communication.
Page 67: Configuring A Wireless Access Connection
Configuring Communication Wireless Equivalent Privacy (WEP) Security is a method by which WLANs protect wireless data streams. A data stream encrypted with WEP can still be intercepted or eavesdropped upon, but the encryption makes the data unintelligible to the interloper. The strength of WEP is measured by the length of the key used to encrypt the data.
Page 68: Wireless Communication Using A Static Ip Address
Configuring Communication Do not alter any of these remaining greyed-out fields in the IP Settings section. Once the panel is rebooted, these values are obtained by the unit and displayed in the DNS fields after power-up. The information can be found in either the Workspace - System name > Define Device section of your code (that defines the properties for your panel), or in the Device Addressing/Network Addresses section of the Tools >...
Page 69 Configuring Communication Locate the Wireless Settings section of the Secondary Connection page. Touch the Network Name (SSID) field (FIG. 59). PCMCIA settings FIG. 59 Secondary Connection page (showing default values) From the Service Set Identifier keyboard, enter the SSID name used on your target Wireless Access Point (case sensitive).
Page 70: Configuring The Panel For Secured Access To A Wap
Configuring Communication Configuring the panel for secured access to a WAP Power-down the panel and insert the interface card into the rear PCMCIA slot as described within the Installing the wireless card section on page 20. Power-up the panel (this allows it to detect the card). Select Protected Setup >...
Page 71: Configuring Multiple Wireless Moderos To Communicate With A Target Wap
Configuring Communication In the WEP Keys section, touch the Key # button to launch the WEP Key # keyboard (FIG. 61). This Key value corresponds to the Default WEP Key number used on the Wireless Access Point and selected in the Default Key field described in the previous step.
Page 72: Configuring A Wired Ethernet Connection
Configuring Communication This process begins with setting up a common password within the panels and then associating that password with a 128-bit key on the Wireless Access Point. Rather than replicating the long key on all wireless Modero panels and possibly creating errors in the replication, a less-complex string can be used to ensure security by associating the password with the key on the Wireless Access Point.
Page 73: Ip Settings Section - Configuring A Static Ip Address Over Ethernet
Configuring Communication IP Settings section - Configuring a Static IP Address over Ethernet Select Protected Setup > System Connection (located on the lower-left) to open the System Connection page. Locate the IP Settings section of this page. Check with your System Administrator for a pre-reserved Static IP Address assigned to the panel.
Page 74: Master Connection - Virtual Master Communication Over Ethernet
Verify the panel has been configured to communicate either through an Ethernet cable (connected from either the panel to a valid Ethernet Hub) or wireless to the Wireless Access Point. Launch NetLinx Studio 2.4 (default location is Start > Programs > AMX Control Disc > NetLinx Studio > NetLinx Studio 2.4).
Page 75 Configuring Communication Enter this IP into the Master IP/URL field on the System Connection IP Addresses of computer page (also obtained by using the Start > Run > cmd command) FIG. 63 Assigning Communication Settings and TCP/IP Settings for a Virtual Master Click the Communications Settings button to open the Communications Settings dialog.
Page 76: Master Connection Section - Netlinx Master Ethernet Ip Address - Url Mode
Master (virtual or not). A virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit. Press the Master IP/URL field to open a Keyboard and enter the IP Address of the PC used as the Virtual Master.
Page 77: Master Connection Section - Netlinx Master Ethernet Ip Address - Listen Mode
Configuring Communication Master Connection section - NetLinx Master Ethernet IP Address - Listen Mode In this mode, you must add the Modero panel IP Address into the URL List of the Master (using NetLinx Studio). This mode sets the Modero panel to "listen" for broadcasts from the Master (using the panel IP from its URL list).
Page 78: Using G4 Web Control® To Interact With A G4 Panel
Refer to the G4 Web Control Page section on page 94 for more detailed field information. Verify your NetLinx Master (ME260/64 or NI-Series) has been installed with the latest firmware KIT file from www.amx.com. Refer to your NetLinx Master Instruction Manual for more detailed information on the use of the new web-based NetLinx Security.
Page 79 Configuring Communication The Network Interface Select field is read-only and displays the method of communication to the web. Verify you have selected the proper interface connection as this field does not auto-detect the connection type being used (see below). Wired is used when a direct Ethernet connection is being used for communication to the web. This is the default setting if either no wireless interface card is detected or if both an Ethernet and wireless card connection is detected by the panel.
Page 80: Using Your Netlinx Master To Control The G4 Panel
Both HTTP and HTTPS Ports are enabled by default (via the Manage System > Server page). If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog.
Page 81 Configuring Communication FIG. 69 Web Control VNC installation and Password entry screens Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl application on your computer. This application contains the necessary Active X and VNC client applications necessary to properly view and control the panel pages from your computer.
Page 82 Configuring Communication 12” and 15” Modero Touch Panels...
Page 83: Upgrading Modero Firmware
NetLinx Master instruction manual to use an address. Note the IP Address and Gateway information. Launch NetLinx Studio 2.4 (default location is Start > Programs > AMX Control Disc > NetLinx Studio > NetLinx Studio 2.4). Select Settings > Master Communication Settings, from the Main menu to open the Master Communication Settings dialog (FIG.
Page 84 Upgrading Modero Firmware List of previously saved IP Addresses FIG. 71 Assigning Communication Settings and TCP/IP Settings Click the Communications Settings button to open the Communications Settings dialog. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are working with a NetLinx Master (such as the NXC-ME260/64 or NI-Series of Integrated Controllers).
Page 85: Step 2: Prepare The Panel For Communication Via An Ip
Master (virtual or not). A virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit. Press the blue Master IP/URL field to open a Keyboard and enter the NetLinx Master’s P Address (obtained from the Diagnostics - Networking Address dialog of the NetLinx Studio application).
Page 86 Upgrading Modero Firmware Selected Firmware file Description field for selected KIT file Firmware download status Device value and System number must match the values listed in the Workspace window FIG. 73 Send to NetLinx Device dialog (showing Modero firmware update via IP) Select the panel’s KIT file from the Files section (FIG.
Page 87: Upgrading Accessory Devices Via An Ip Address
Upgrading Modero Firmware Upgrading Accessory Devices via an IP Address The following accessory devices are firmware upgradeable: NXA-BASE/B Battery Base (FG2255-10) This device is not given unique device number which would ordinarily appear within the Online Tree tab of NetLinx Studio. It appears below the target panel which it is a part of as seen below in FIG. 74. Target Panel Device # NXA-BASE/B (base version)
Page 88: Upgrading The Nxa-Base/B Firmware Via An Ip
Master, verify the target panel appears in the OnLine Tree tab of the Workspace window. The default Modero panel value is 10001. The NXA-BASE/B will not appear on the system listing. Locate the latest firmware file from the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero Battery Base section of the website.
Page 89 Upgrading Modero Firmware Selected Battery Base Firmware file Description field for selected KIT file Firmware download status Device value and System number must match the values listed in the Workspace window FIG. 76 Send to NetLinx Device dialog (showing NXA-BASE/B firmware update via IP) Select the battery base’s KIT file from the Files section (FIG.
Page 90 Upgrading Modero Firmware 12” and 15” Modero Touch Panels...
Page 91: Firmware Pages And Descriptions
Firmware Pages and Descriptions Firmware Pages and Descriptions Overview This section describes each firmware page and their specific functional elements. Setup Navigation Buttons These Setup Navigation Buttons (FIG. 77) appear on the left of the panel screen when the Setup page is currently active.
Page 92: Setup Page
Firmware Pages and Descriptions Setup Navigation Button Elements (Cont.) Video Adjustment: Press the Video Adjustment button to access the Video Adjustment page where (CV Modero only) you can set the video properties for incoming video. • This button only appears on Color Video (CV) capable touch panels. •...
Page 93 Firmware Pages and Descriptions Setup Page Elements (Cont.) Connection Status: Displays whether the panel is communicating externally, the encryption status of the communicating Master, what connection type is being used (Ethernet or ICSNet), and what System the panel is a part of. This visual display of the connection status is also reflected at the upper-right of each firmware page.
Page 94: Project Information Page
Firmware Pages and Descriptions Project Information Page The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the selected Modero panel (FIG. 79). Refer to the TPDesign4 Touch Panel Program instruction manual for more specific information on uploading TPDesign4 files to a panel. Sample TPD4 Project Properties dialog FIG.
Page 95: Panel Information Page
Displays the model of the Modero panel being used. Firmware Version: Displays the G4 firmware version being used by the panel. • Verify you have the latest version from www.amx.com. Setup Port: Displays the setup port information/value being used by the panel.
Page 96: Time & Date Setup Page
Firmware Pages and Descriptions Panel Information Page Elements (Cont.) Wake Up String: Displays the wake up string used after an activation from a timeout. Sleep String: Displays the sleep string used during a panel’s sleep mode. File System: Displays the amount of Compact Flash memory available on the Modero panel. RAM: Displays the available RAM (or Extended Memory module) on the Modero panel.
Page 97: Volume Page
Firmware Pages and Descriptions Time & Date Setup Page Elements (Cont.) Set Date/Time: This section provides a user with both UP/DN arrow buttons to alter the Master’s calendar date and time. The blue circle indicates which field is currently selected. •...
Page 98: Supported Sampling Rates For Wav
Firmware Pages and Descriptions Volume Page Elements (Cont.) Default Panel Sounds: Sets the Modero panel to play either the default Button Hit sound (when you touch an active button) and/or the default Button Miss sound (when you touch a non-active button or any area outside of the active button). Internal Sound Level: This section allows you to adjust the current sound level on the internal panel speaker:...
Page 99: Protected Setup Page
Firmware Pages and Descriptions Video Setup Page Elements Back: Saves the changes and returns you to the previously active touch panel page. Connection Status icon: This visual display of the connection status allows the user to have a current update of the panel’s connection status regardless of what page is currently active.
Page 100 Firmware Pages and Descriptions This page is ONLY available on Modero Table Top panels (NXT) using an NXA-BASE/B. The elements of the Battery Base page are described in the table below: Battery Base Page Elements Back: Saves the changes and returns you to the previously active touch panel page. Connection Status icon: This visual display of the connection status allows the user to have a current update of the panel’s connection status regardless of what page is...
Page 101: Protected Setup Navigation Buttons
Firmware Pages and Descriptions Battery Base Page Elements (Cont.) Battery Power Brightness The DISABLE/DISABLED button acts as a power save feature with two Limit: available choices: • Disable - activates the brightness limit set on the Modero panel and is used to conserve battery power.
Page 102: Protected Setup Page
Firmware Pages and Descriptions Protected Setup Navigation Button Elements (Cont.) Passwords: Press the Passwords button to access the Passwords Setup page where you can specify up to five security passwords. Default password is 1988. • Refer to the Password Setup Page section on page 98 for more detailed information.
Page 103 • The Remove User Pages button allows you remove all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages). - Pressing this button launches a Confirmation dialog (FIG. 87) which asks you to confirm your selection.
Page 104: G4 Web Control Page
Firmware Pages and Descriptions Channel Code Channel Port Channel Code Number Channel Port Number 7,10 3,132 Address Slider Address Port Button Level Port Port Level Port 3,50 Channel Code Channel Code Address Code Address Code Number Number Number Number FIG. 88 Button/slider Function Show example G4 Web Control Page The G4 Web Control page (FIG.
Page 105: Sensor Setup Page
Firmware Pages and Descriptions G4 Web Control Page Elements (Cont.) Web Control Name Allows you to enter a unique alpha-numeric string that is used as the display name of the panel within the Manage WebControls window of the new NetLinx Security browser window.
Page 106 Firmware Pages and Descriptions A light level value between the Minimum and Maximum DIM Mode values delivers an average light level. The DIM mode Min Level can never exceed the DIM Mode Max Level. The elements of the Sensor Setup page are described in the table below: Sensor Setup Page Elements Back: Saves the changes and returns you to the previously active touch panel page.
Page 107: Using The Automated Brightness Control Feature (Dim Mode)
Firmware Pages and Descriptions Sensor Setup Page Elements (Cont.) Dim Mode Minimum Allows you to alter the sensitivity of the Modero panel light sensor: Brightness: • Toggle the Enable/Enabled button to either active/inactive the DIM Mode feature: - Enable - activates this feature. Once active (by receiving a value below the Dim Mode Min Level value), the current light level ramps to the DIM Mode value within a few seconds.
Page 108: Password Setup Page
Firmware Pages and Descriptions Set the Minimum brightness of the Dimmer (Dim Mode Max Level) below the detected drop. This will make sure that the panel does not react to variations in the lighting conditions of a normal working environment. The minimum (lower level) of the dimmer should be at least 10% lower than the minimum detected level (ex: lower dimmer level at 30% if the detected lighting of the room is at 40%).
Page 109: Calibration Page
Modero panel. These panels can use the optional NXA-WC80211b AMX Wireless Interface Card for wireless communication. This card also supports Wired Encryption Protocol (WEP) encryption of 64-bit and 128-bit key lengths. Refer to both the Secondary...
Page 110 Firmware Pages and Descriptions Secondary Connection Page Elements Back: Saves the changes and returns you to the previously active touch panel page. Connection Status icon: This visual display of the connection status allows the user to have a current update of the panel’s connection status regardless of what page is currently active.
Page 111 3rd-party Wireless Access Point, it comes back with 1a:2b:3c:4d:etc. Entering the same apple in the Passphrase generator of any Modero panel generates a different key: a1:b2:c3:d4:etc. Only AMX Modero panels generate the same Current Key by using a unique Passphrase key generation technology.
Page 112 Firmware Pages and Descriptions Secondary Connection Page Elements (Cont.) WEP Keys This feature provides you with another level of security by selecting a Key value. • A single button is available for each WEP key up to a maximum of four keys. •...
Page 113: System Connection Page
Firmware Pages and Descriptions Refer to both the Secondary Connection Page - Wireless Access Overview section on page 56 and Configuring a Wireless Access Connection section on page 57 for more detailed information of setting up the Modero panel for wireless network access. System Connection Page The System Connection page (FIG.
Page 114 • Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. MAC Address Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. Master Connection: Sets the NetLinx Master communication values:...
Page 115: Programming
Programming Programming Overview You can program the touch panel, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels).
Page 116: Dpg
Programming Page Commands (Cont.) Syntax: @DPG Delete a specific "'@DPG-<popup page name>;<popup group name>'" popup page from Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the popup page. group if it exists. popup group name = 1 - 50 ASCII characters. Name of the popup group. Example: SEND_COMMAND Panel,"'@DPG-Popup1;Group1'"...
Page 117: Ppa
Programming Page Commands (Cont.) If the page name is empty, the current page is used. Same as the ’Clear Page’ command @PPA in TPDesign4. Close all popups Syntax: on a specified page. "'@PPA-<page name>'" Variable: page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'@PPA-Page1'"...
Page 118: Ppm
Programming Page Commands (Cont.) A Modal popup page, when active, only allows you to use the buttons and features on that @PPM popup page. All other buttons on the panel page are inactivated. Set the modality Syntax: of a specific popup page to "'@PPM-<popup page name>;<mode>'"...
Page 119: Pse
Programming Page Commands (Cont.) Syntax: @PSE Set the show "'@PSE-<popup page name>;<show effect name>'" effect for the Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed page to the named show show effect name = Refers to the popup effect name being used.
Page 120: Programming Numbers
Programming Page Commands (Cont.) If the page name is empty, the current page is used (see example 2). Toggling refers to the PPOG activating/deactivating (On/Off) of a popup page. This command works in the same way Toggle a as the ’Toggle Popup’ command in TPDesign4. specific popup Syntax: page on either a...
Page 121 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Green Blue Dark Yellow Very Dark Yellow Very Light Lime Light Lime Lime Medium Lime Dark Lime Very Dark Lime Very Light Green Light Green Green Medium Green Dark Green Very Dark Green Very Light Mint...
Page 122: Font Styles And Id Numbers
Arial Courier New Arial Courier New Arial Courier New Arial AMX Bold Arial AMX Bold Arial Bold AMX Bold Arial Bold 32 - Variable Fonts start at 32. You must import fonts into a TPDesign4 project file. The font ID numbers are assigned by TPDesign4.
Page 123: Border Styles
The TPDesign4 Touch Panel Design program has pre-set border styles that are user selectable. TPD4 border styles can ONLY be changed by using the name. TPD4 Border Styles by Name Border styles Border styles None Diamond 55 AMX Elite -L Diamond 65 AMX Elite -M Diamond 75 AMX Elite -S Double Bevel -L Bevel -L...
Page 124: Button Commands
Programming TPD4 Border Styles by Name (Cont.) Border styles Border styles Menu Right Rounded 55 Neon Active -L Menu Right Rounded 65 Neon Active -S Menu Right Rounded 75 Neon Inactive -L Menu Right Rounded 85 Neon Inactive -S Menu Right Rounded 95 Oval V 30x60 Menu Right Rounded 105 Oval V 50x100...
Page 125: Apf
Programming "^" Button Commands (Cont.) Syntax: ^APF Add page flip "'^APF-<vt addr range>,<page flip action>,<page name>'" action to a button Variable: if it does not variable text address range = 1 - 4000. already exist. page flip action = Stan[dardPage] - Flip to standard page Prev[iousPage] - Flip to previous page Show[Popup] - Show Popup page Hide[Popup] - Hide Popup page...
Page 126: Bcb
Programming "^" Button Commands (Cont.) Only if the specified border color is not the same as the current color. ^BCB Note: Color can be assigned by color name (without spaces), number or R,G,B value Set the border (RRGGBB or RRGGBBAA). color to the specified color.
Page 127: Bdo
Programming "^" Button Commands (Cont.) Determines what order each layer of the button is drawn. ^BDO Syntax: Set the button draw order. "'^BDO-<vt addr range>,<button states range>,<1-5><1-5><1-5><1- 5><1-5>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 128: Bmc
Programming "^" Button Commands (Cont.) Note that the source is a single button state. Each state must be copied as a separate ^BMC command. The <codes> section represents what attributes will be copied. All codes are Button copy 2 char pairs that can be separated by comma, space, percent or just ran together. command.
Page 129: Bmf
Programming "^" Button Commands (Cont.) Syntax: ^BMF Set any/all button "'^BMF-<vt addr range>,<button states range>,<data>'" parameters by Variables: sending variable text address char array = 1 - 4000. embedded codes button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons and data.
Page 130: Bmi
Programming "^" Button Commands (Cont.) ^BMF (Cont.) ’%GI<bargraph invert>’ = Set the bargraph invert/noninvert or joystick coordinate (0,1,2,3). ^GIV section on page 125 more information. ’%GU<bargraph ramp up>’ = Set the bargraph ramp up time in intervals of 1/10 second. ’%GD<bargraph ramp down>’...
Page 131: Bmp
Programming "^" Button Commands (Cont.) Syntax: ^BMP Assign a picture to "'^BMP-<vt addr range>,<button states range>,<name of bitmap/ those buttons with picture>'" a defined address Variable: range. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 132: Bor
Sets the border by number (#10) to those buttons with the variable text range of 500-504 & 510-515. SEND_COMMAND Panel,"'^BOR-500.504&510,AMX Elite -M'" Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer theTPD4 Border Styles by Name table on page 113 for more information.
Page 133: Bsf
Programming "^" Button Commands (Cont.) Note: Select one button at a time (single variable text address). Do not assign a variable ^BSF text address range to set focus to multiple buttons. Only one variable text address can be Set the focus to in focus at a time.
Page 134: Bvp
Programming "^" Button Commands (Cont.) Syntax: ^BVP Set the network "'^BVP-<vt addr range>,<network password>'" password for the Variable: specified address. variable text address range = 1 - 4000. network password = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^BVP-500,PCLOCK'" Sets the password to PCLOCK for the specific PC control button. Syntax: ^BVT Set the computer...
Page 135: Gdi
Programming "^" Button Commands (Cont.) Syntax: ^ENA Enable or "'^ENA-<vt addr range>,<command value>'" disable buttons Variable: with a set variable text address range = 1 - 4000. variable text command value = (0= disable, 1= enable) range. Example: SEND_COMMAND Panel,"'^ENA-500.504&510.515,0'" Disables button pushes on buttons with variable text range 500-504 &...
Page 136: Glh
Programming "^" Button Commands (Cont.) Syntax: ^GLH Change the "'^GLH-<vt addr range>,<bargraph hi>'" bargraph upper Variable: limit. variable text address range = 1 - 4000. bargraph limit range = 1 - 65535 (bargraph upper limit range). Example: SEND_COMMAND Panel,"'^GLH-500,1000'" Changes the bargraph upper limit to 1000. Syntax: ^GLL Change the...
Page 137: Gsn
Programming "^" Button Commands (Cont.) Slider names and cursor names can be found in the TPDesign4 slider name and cursor ^GSN drop-down list. Change the Syntax: bargraph slider name or joystick "'^GSN-<vt addr range>,<bargraph slider name>'" cursor name. Variable: variable text address range = 1 - 4000. bargraph slider name = See table below.
Page 138: Jsi
Programming "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JSI to the upper left corner of the button. Set icon Syntax: alignment using a numeric keypad "'^JSI-<vt addr range>,<button states range>,<new icon layout for those alignment>'"...
Page 139: Mdc
Programming "^" Button Commands (Cont.) Syntax: ^MDC Turn On the "'^MDC'" ’Mouse Example: double-click’ SEND COMMAND Panel,"'^MDC'" feature for the Sets the mouse double-click for use with the virtual PC. virtual PC. Syntax: ^SHO Show or hide a "'^SHO-<vt addr range>,<command value>'" button with a set Variable: variable text...
Page 140: Text Effect Names
Programming "^" Button Commands (Cont.) For the ^UNI command (%UN and ^BMF command), the Unicode text is sent as ^UNI ASCII-HEX nibbles. Set Unicode text. Syntax: "'^UNI-<vt addr range>,<button states range>,<unicode text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 141: Button Query Commands
Programming Button Query Commands Button Query commands reply back with a custom event. There will be one custom event for each button/state combination. Each query is assigned a unique custom event type. The following example is for debug purposes only: NetLinx Example: CUSTOM_EVENT[device, Address, Custom event type] DEFINE_EVENT CUSTOM_EVENT[TP,529,1001]...
Page 142: Bcb
Programming Button Query Commands Syntax: ?BCB Get the current "'?BCB-<vt addr range>,<button states range>'" border color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 143: Bct
Programming Button Query Commands (Cont.) Syntax: ?BCT Get the current "'?BCT-<vt addr range>,<button states range>'" text color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 144: Bop
Programming Button Query Commands (Cont.) Syntax: ?BOP Get the overall "'?BOP-<vt addr range>,<button states range>'" button opacity. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 145: Bww
Programming Button Query Commands (Cont.) Syntax: ?BWW Get the current "'?BWW-<vt addr range>,<button states range>'" word wrap flag Variable: status. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 146: Ico
Programming Button Query Commands (Cont.) Syntax: ?ICO Get the current "'?ICO-<vt addr range>,<button states range>'" icon index. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 147: Jsi
Programming Button Query Commands (Cont.) Syntax: ?JSI Get the current "'?JSI-<vt addr range>,<button states range>'" icon Variable: justification. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 148: Tec
Programming Button Query Commands (Cont.) Syntax: ?TEC Get the current "'?TEC-<vt addr range>,<button states range>'" text effect color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 149: Panel Runtime Operations
Programming Button Query Commands (Cont.) Syntax: ?TXT Get the current "'?TXT-<vt addr range>,<button states range>,<optional index>'" text information. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 150: Akeyb
Programming Panel Runtime Operation Commands (Cont.) Keyboard string is set to null on power up and is stored until power is lost. AKEYB Syntax: Pop up the keyboard icon and "'AKEYB-<initial text>'" initialize the text Variables: string to that initial text = 1 - 50 ASCII characters. specified.
Page 151: Brit
Programming Panel Runtime Operation Commands (Cont.) Syntax: BRIT Set the panel "'BRIT-<brightness level>'" brightness. Variable: brightness level = 0 - 100. Example: SEND COMMAND Panel,"'BRIT-50'" Sets the brightness level to 50. Syntax: @BRT Set the panel "'@BRT-<brightness level>'" brightness. Variable: brightness level = 0 - 100.
Page 152: Setup
Programming Panel Runtime Operation Commands (Cont.) Syntax: SETUP Send panel to "'SETUP'" SETUP page. Example: SEND COMMAND Panel,"'SETUP'" Sends the panel to the Setup Page. Syntax: SHUTDOWN Shut down the "'SHUTDOWN'" batteries providing Example: power to the SEND COMMAND Panel,"'SHUTDOWN'" panel.
Page 153: Input Commands
Programming Panel Runtime Operation Commands (Cont.) Syntax: @VKB Popup the "'@VKB'" virtual Example: keyboard. SEND COMMAND Panel,"'@VKB'" Pops-up the virtual keyboard. Syntax: WAKE Force the panel "'WAKE'" out of screen Example: saver mode. SEND COMMAND Panel,"'WAKE'" Forces the panel out of the screen saver mode. Input Commands These Send Commands are case insensitive.
Page 154: Embedded Codes
Programming Embedded Codes The following is a list of G4 compatible embedded codes: Embedded Codes Decimal numbers Hexidecimal values Virtual keystroke ($08) Backspace ($0D) Enter ($1B) ($80) CTRL key down ($81) ALT key down ($82) Shift key down ($83) ($84) ($85) ($86) ($87)
Page 155: Panel Setup Commands
Programming Panel Setup Commands These commands are case insensitive. Panel Setup Commands Syntax: ^MUT Set the panel "'^MUT-<mute state>'" mute state. Variable: mute state= 0 = Mute Off and 1 = Mute On. Example: SEND_COMMAND Panel,"'^MUT-1''" Sets the panel’s master volume to mute. @PWD sets the level 1 password only.
Page 156: Dynamic Image Commands
Adds a new resource. • The resource name is ’New Image’ • %P (protocol) is an HTTP • %H (host name) is AMX.COM • %A (file path) is Lab/Test_file • %F (file name) is test.jpg. Note that the %%5F in the file path is actually encoded as %5F.
Page 157: Raf, ^Rmf - Embedded Codes
Programming Dynamic Image Commands (Cont.) Modifies any and all resource parameters by sending embedded codes and data. ^RMF Since the embedded codes are preceded by a '%' character, any '%' character contained Modify an in the URL must be escaped with a second '%' character (see example). existing resource.
Page 158: Escape Sequences
Y resolution of current panel mode/file Current state Address code Address port Channel code Channel port Level code Level port X Resolution of Current button Y Resolution of Current button Name of Button For instance, http://www.amx.com/img.asp?device=$DV would become http://www.amx.com/img.asp?device=10001. 12” and 15” Modero Touch Panels...
Page 159: Troubleshooting
• This is due to the graphics controller settings in the firmware. • Update firmware to the latest v2.XX. firmware. • Visit the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero panels. Then Download the KIT file to your computer.
Page 160 • The NXA-BASE/B Battery base should be updated with the latest firmware (part of the Modero firmware KIT file) from www.amx.com. • The base can only charge batteries while the NXT panel is in Sleep Mode. If the panel parameters are set to their highest values, the priority for the power draw becomes the active panel functions and no power is routed to the base for charging.
Page 161 "graphics hierarchy" errors, etc.… indicating problems with the Compact Flash. • Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Compact Flash.
Page 162 • Click Send to reload the new base KIT file onto the NXA-BASE/B. If this above steps do not cause the base to be recognized by the NXT touch panel on the Setup page, contact AMX Technical Support for further assistance.
Page 163: Appendix
Appendix Appendix Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes would be entered into the text field along with any other text.
Page 164: Text Area Input Masking
Appendix Text Area Input Masking Text Area Input Masking can be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters but, with input masking, you could limit them to 5 mandatory numerical digits and 4 optional numerical digits.
Page 165: Input Mask Ranges
Appendix Input mask ranges These ranges allow a user to specify the minimum and maximum numeric value for a field. Only one range is allowed per field. Using a range implies a numeric entry ONLY. Input Mask Ranges Character Meaning Start range End range Range Separator...
Page 166: Input Mask Output Examples
This URL indicates that the protocol in use is http (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page).
Page 167: Special Escape Sequences
However; the system will parse the URL looking for special escape codes. When it finds an escape code it replaces that code with a particular piece of panel, button, or state information. For example, "http://www.amx.com/img.asp?device=$DV" would become "http://www.amx.com/ img.asp?device=10001". Other used escape sequences include:...
Page 168 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...

This manual is also suitable for:

Nxd-ca15 Nxd-ct12 Nxd-cv15 Nxt-ca15 Nxt-cv12 Nxt-cv15 ... Show all
