Using the Wireless Signal Strength
Test

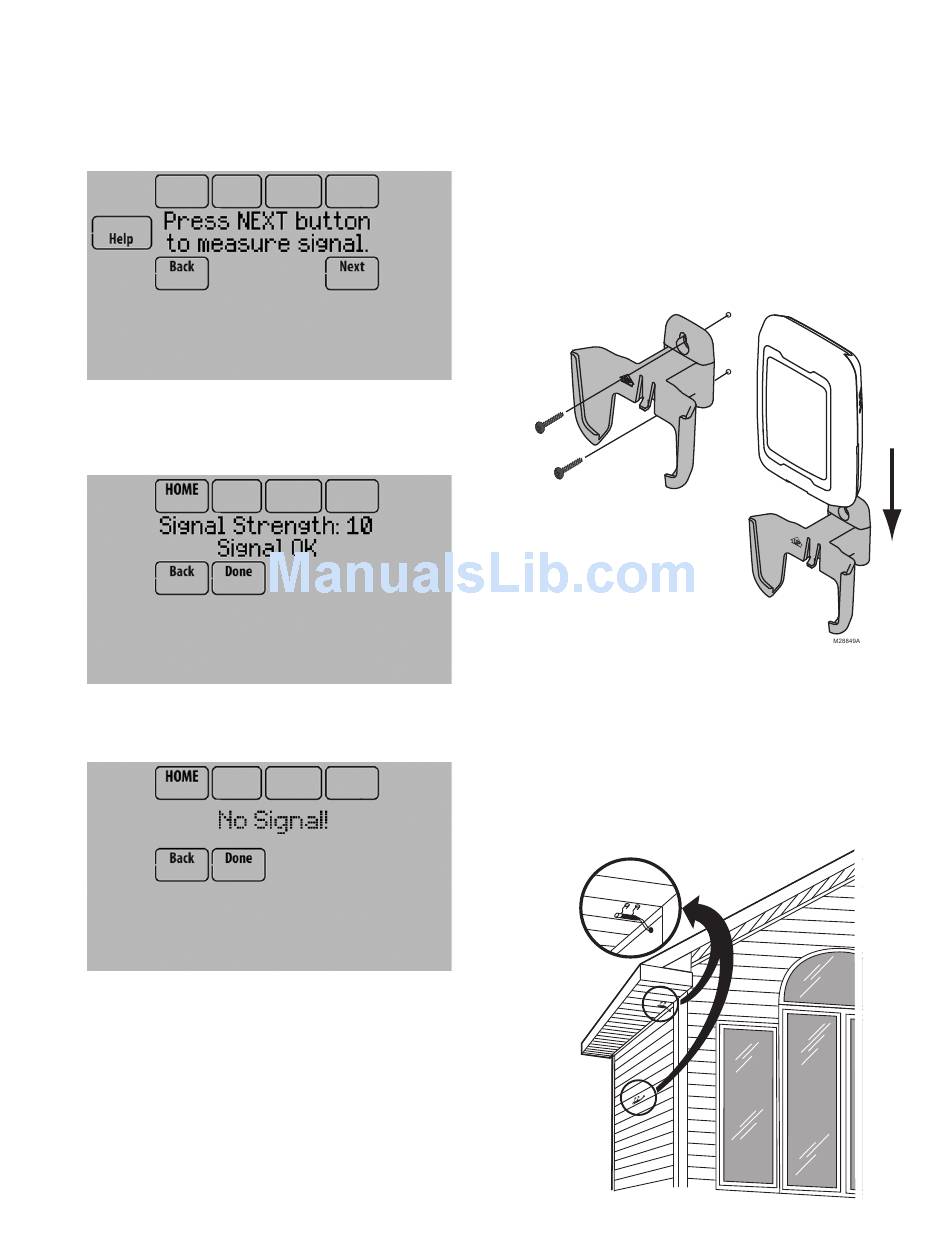

1. Select Installer Test (see Fig. 63), then select Wireless
Test.
2. Press Next to measure the signal strength. After a brief
pause, the thermostat will display test results.
3. A number from 5-10 means communication is good.
4. If the screen displays "No Signal," move the thermostat
to a different location and test again.

Mounting Optional Accessories

Outdoor Sensor
Mount the sensor where:
• it cannot be tampered with.
• there is good air circulation.
• it can measure true outdoor ambient temperature and
humidity.
• wire distance between C7089U1006 and thermostat/EIM is
less than 200 feet (wired sensor only).
Fig. 68.
Fig. 69.
Fig. 70.
Do not mount the sensor:
• in direct sunlight.
• where hot or cold air blows on the sensor. Discharge line
from an outdoor compressor unit, vent or fan causes
inaccurate temperature readings.
• where snow, ice or debris can cover it.
MOUNTING C7089R1013 WIRELESS OUTDOOR SENSOR
Use the following steps to mount the sensor (see Fig. 71):
1. Mount the sensor on a vertical exterior wall, at least 6
inches below any overhang. Choose a location protected
from direct sunlight.
2. Place sensor securely in bracket, facing away from wall.
Fig. 71. Mounting Outdoor Sensor.
MOUNTING C7089U1006 WIRED OUTDOOR
TEMPERATURE SENSOR
Use the following steps to mount the sensor:
1. Remove the sensor from the mounting clip.
2. Mark the area on the location selected for mounting the
sensor mounting clip.
3. Mount the clip.
4. See "Wiring C7089U1006 Outdoor Sensor" on page 133.
Fig. 72. Typical locations for C7089U1006 Outdoor Sensor.
