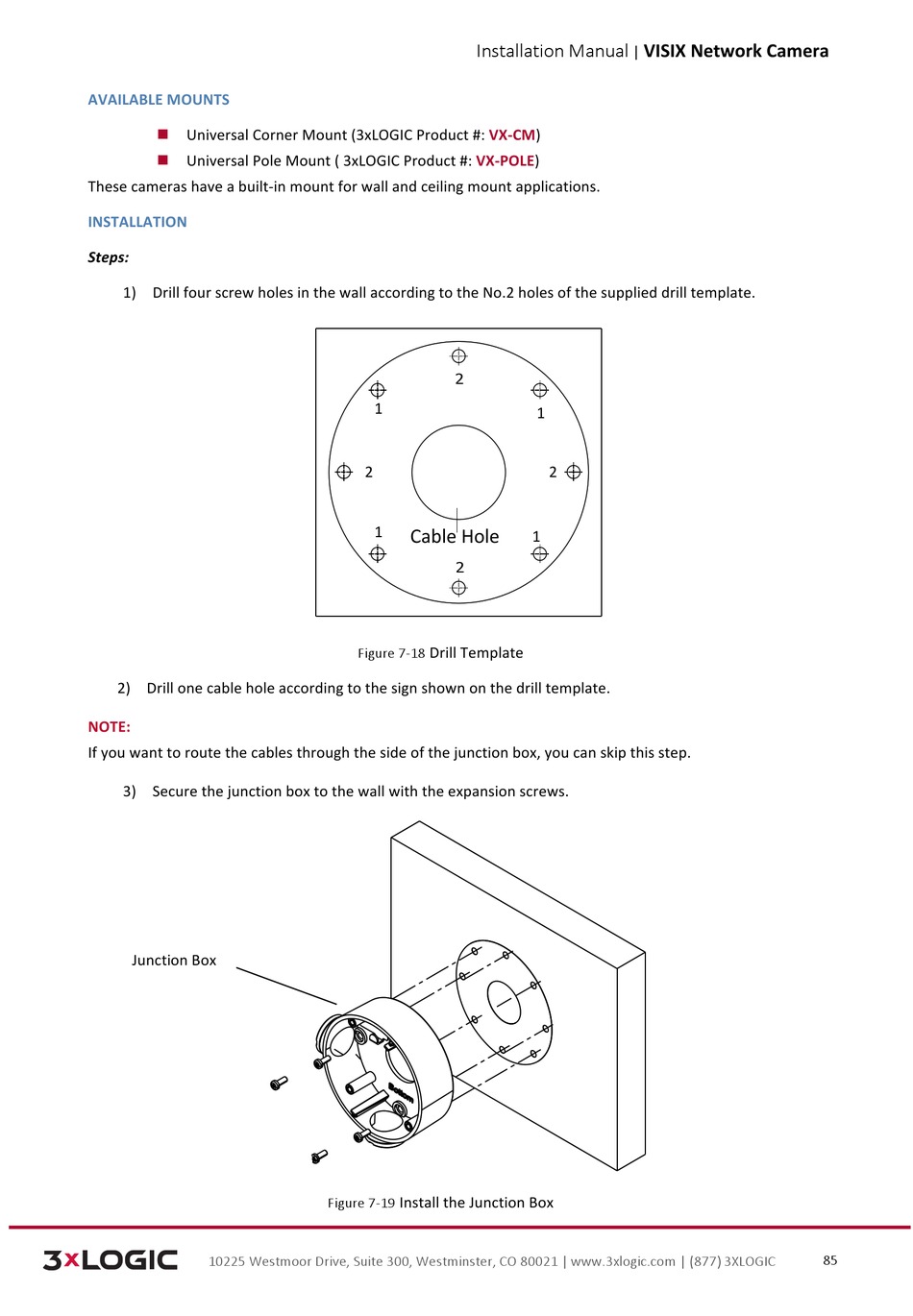

AVAILABLE   M OUNTS
Universal   C orner   M ount   ( 3xLOGIC   P roduct   # :
!
Universal   P ole   M ount   (   3 xLOGIC   P roduct   # :
!
These   c ameras   h ave   a   b uilt-­‐in   m ount   f or   w all   a nd   c eiling   m ount   a pplications.
INSTALLATION
Steps:
1) Drill   f our   s crew   h oles   i n   t he   w all   a ccording   t o   t he   N o.2   h oles   o f   t he   s upplied   d rill   t emplate.
2) Drill   o ne   c able   h ole   a ccording   t o   t he   s ign   s hown   o n   t he   d rill   t emplate.
NOTE:
If   y ou   w ant   t o   r oute   t he   c ables   t hrough   t he   s ide   o f   t he   j unction   b ox,   y ou   c an   s kip   t his   s tep.
3) Secure   t he   j unction   b ox   t o   t he   w all   w ith   t he   e xpansion   s crews.
Junction   B ox

10225  Westmoor  Drive,  Suite  300,  Westminster,  CO  80021  |   w ww.3xlogic.com  |  (877)  3XLOGIC

Installation  Manual
V
X-­‐CM)
V
X-­‐POLE)
2
1
2
1
Cable   H ole
2
Drill   T emplate
Figure  7-­‐18
Install   t he   J unction   B ox
Figure  7-­‐19
V ISIX   N etwork   C amera
  |
1
2
1




85
