3) View t he c amera i mage o ver t he n etwork.
4) Loosen t he s crews o n t he b racket s lightly.
NOTE: Please l oosen t he s crews s lightly u ntil y ou c an a djust t he c amera a nd d o n ot r emove t he s crews f rom
the b racket.
5) Adjust t he c amera t o t he d esired s urveillance a ngle a nd t hen t ighten t he s crews o n b racket t o s ecure
the c amera.
6) Loosen t he l ock s crew o n t he s un s hield a nd s lide t he s un s hield u ntil y ou c an r emove i t. R emove t he
sun s hield.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Table 1-­‐20 Attach the Camera
Rotation
Screw
Tilting

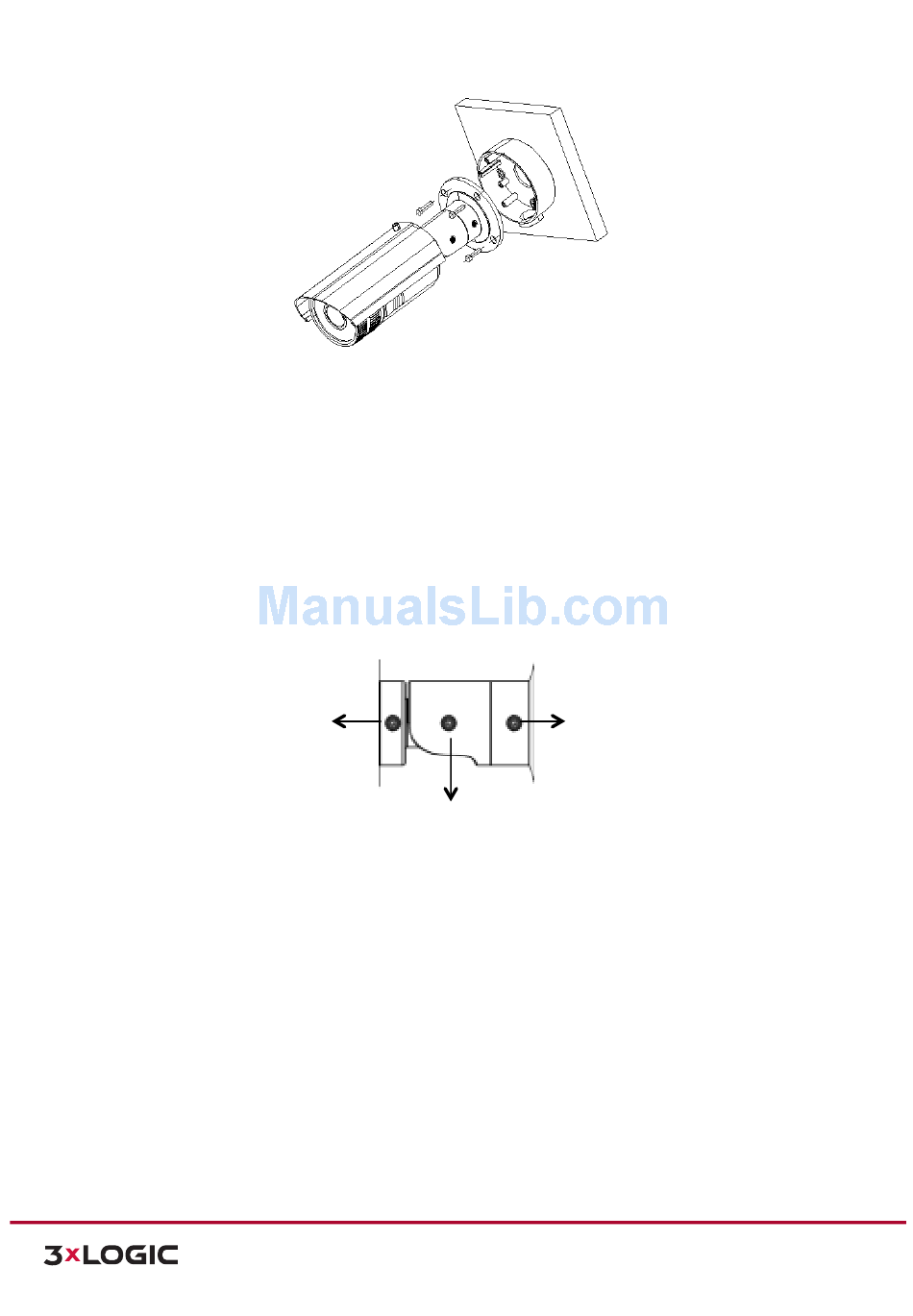

Adjust M onitoring A ngle
Figure 7-­‐4
Installation Manual
Panning
Screw
Screw
V ISIX N etwork C amera
|
