4) Align t he f ront c over t o t he d ome d rive a nd t ighten t he s et s crews o n t he f ront c over t o c omplete t he
installation.
Wall B racket M ounting ( 3xLOGIC P roduct # :
Steps:
1) Install t he w all b racket t o t he w all w ith t he s upplied s crews i n t he w all b racket p ackage.
The m atched c eiling b racket m odel i s D S-­‐1272ZJ-­‐120B, a nd y ou n eed t o p urchases i t s eparately i f
NOTE:
wall b racket m ounting i s a dopted.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Installation Manual
Install t he F ront C over

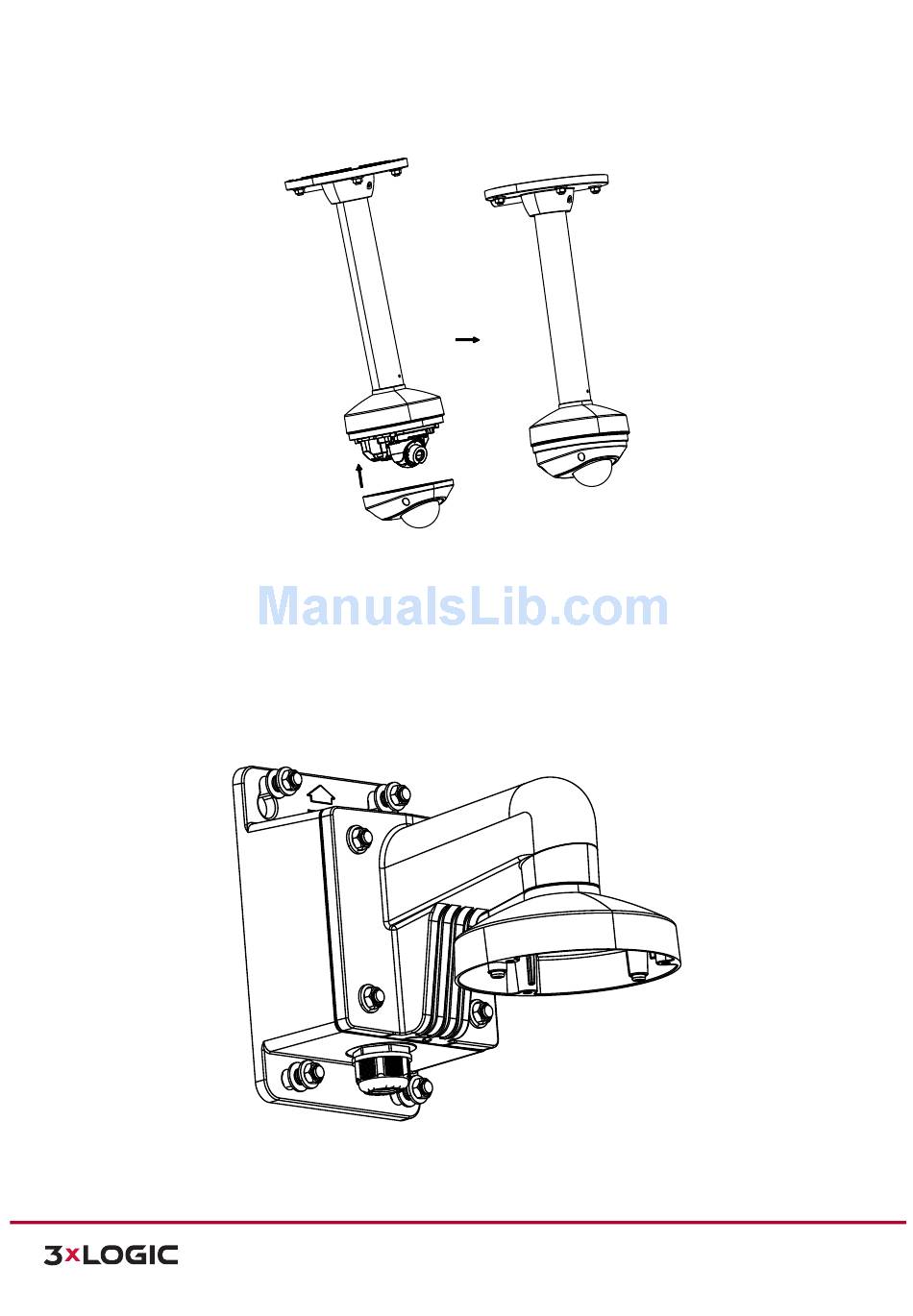

Figure 5-­‐21
V X-­‐WM-­‐MD)
Install W all B racket
Figure 5-­‐22
i. Attach t he a dapter p late t o t he w all b racket.
V ISIX N etwork C amera
|
44
