5) Adjust t he s urveillance a ngle.
a. Loosen t he l ock s crew b esides t he l ens.
b. Hold t he p lastic p late a nd r otate t he c amera t o a djust t he p anning a ngle [ 0~350°].
c. Push t he l ens f orward a nd b ackward t o a djust t he t ilting a ngle [ 0~80°].
d. Rotate t he l ens t o a djust t he a zimuth a ngle o f t he c amera [ 0~350°].
e. Tighten t he l ock s crew.
5) Adjust t he L ens.
a. Connect t he V IDEO O UT i nterface o f t he c amera t o s d ebugging m onitor.
b. To b egin, s et t he i ris t ype t o M ANUAL.
c. Adjust t he N o.2 Z oom L ever ( T~W) t o s elect a p roper a ngle o f v iew.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Dome
Drive

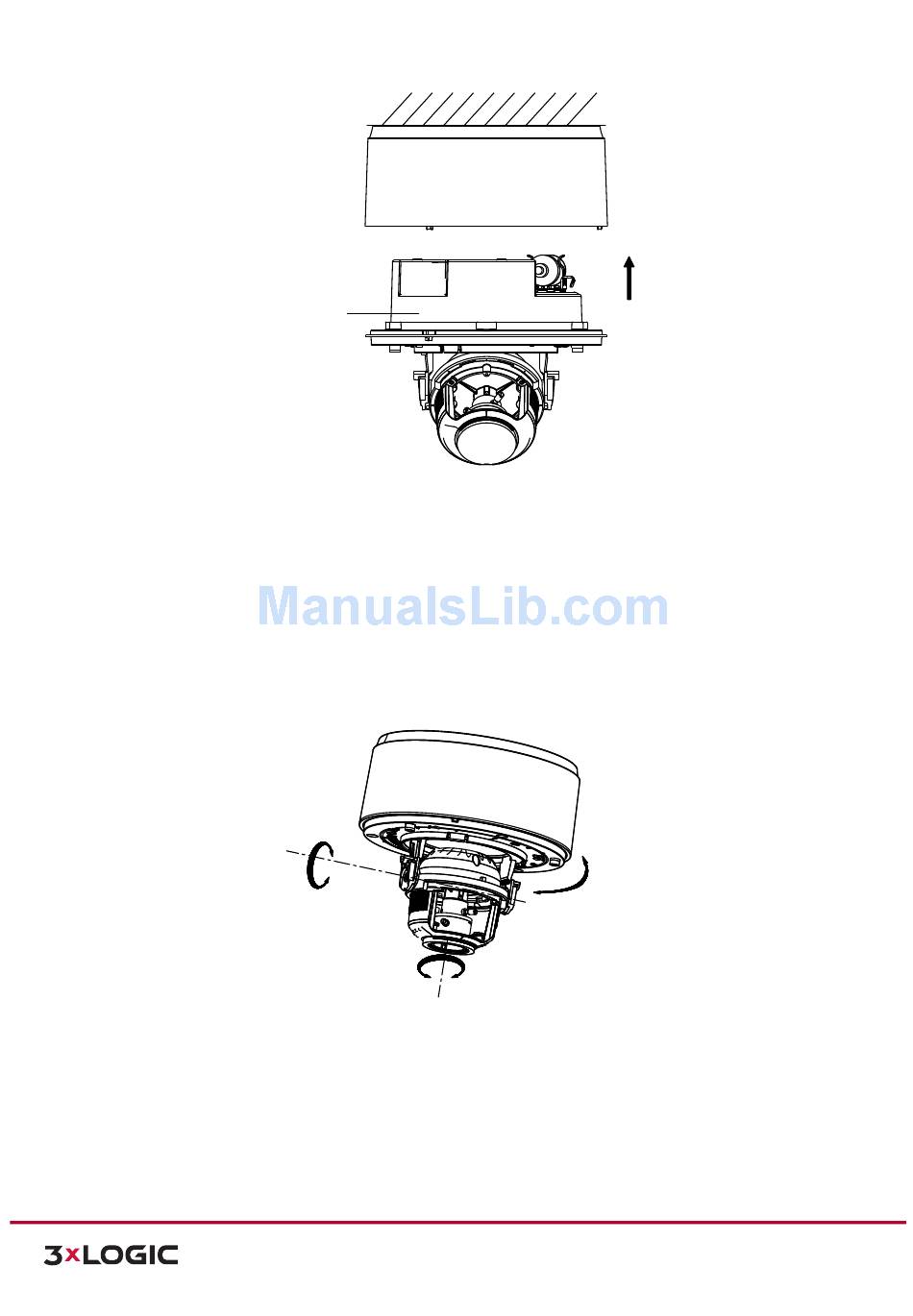

Install t he D ome D rive
Figure 6-­‐15
Tilt 0 ~80°
Rotation 0 ~350°
3-­‐axis A djustment
Figure 6-­‐16
V ISIX N etwork C amera
|
Installation Manual
Pan 0 ~350°
