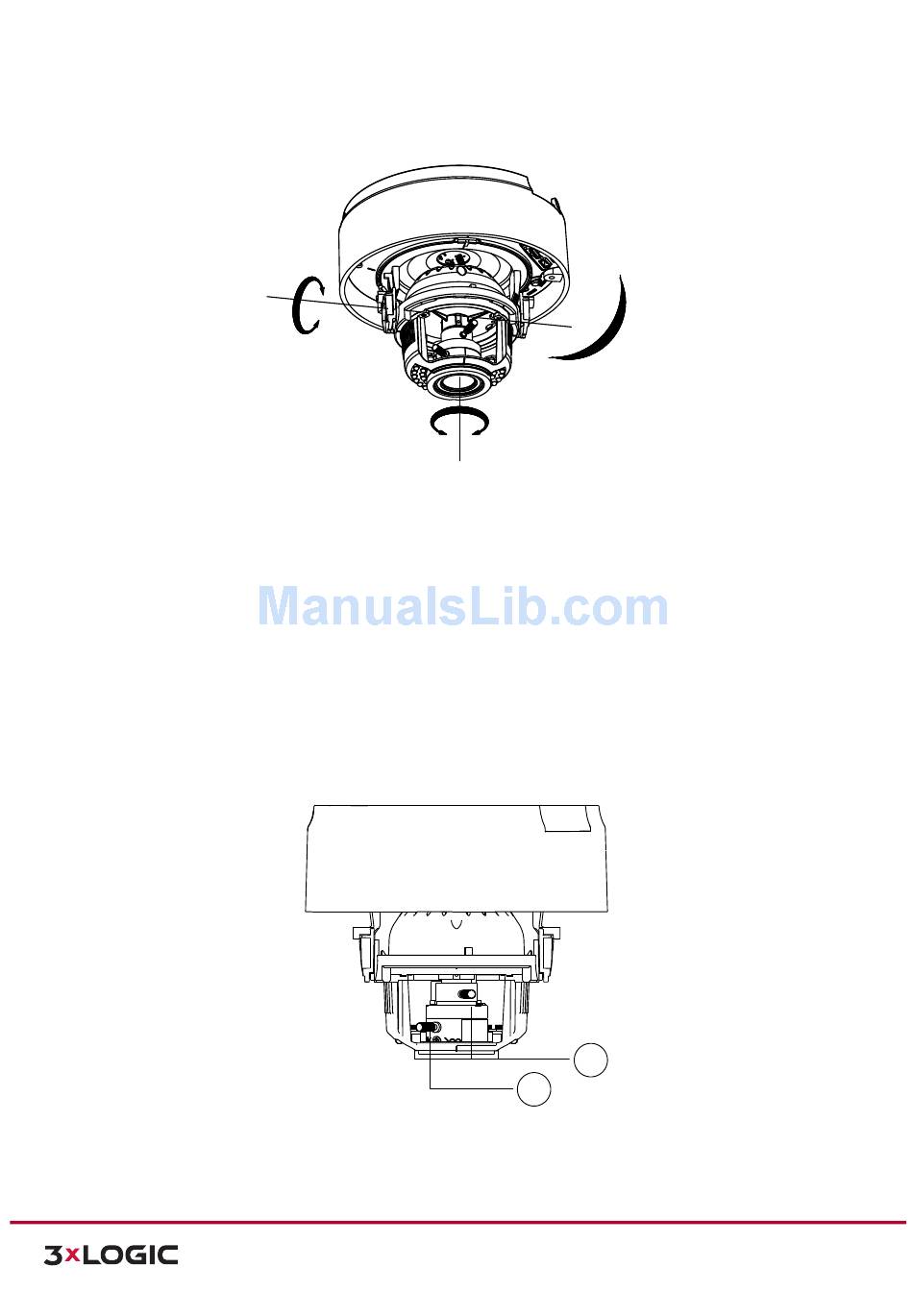

4) Adjust t he s urveillance a ngle a ccording t o t he f igure b elow. P anning a ngle [ 0~80°], t ilting a ngle
[0~355°], a nd a zimuth a ngle o f t he l ens [ 0~355°].
5) Adjust t he f ocus a nd z oom.
a. Connect t he V IDEO O UT i nterface o f t he c amera t o t he d ebugging m onitor.
b. To b egin, s et t he i ris t ype t o M ANUAL.
c. Adjust t he N o.1 Z oom L ever ( T~W) t o s elect a p roper a ngle o f v iew.
d. Adjust t he N O.2 F ocus L ever ( F~N) t o o btain t he d esired i mage o n t he m onitor.
e. Set t he i ris t ype t o M ANUAL i f t he e nvironment h as s table i llumination. Set t he i ris t ype t o A UTO
if t he e nvironment h as v arying l evels o f i llumination.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
0~80°
0~355°
3-­‐axis A djustment
Figure 4-­‐24
Adjust t he L ens
Figure 4-­‐25
V ISIX N etwork C amera
|
Installation Manual
0~355°
