Panning
Zoom a nd F ocus A djusting
Purpose:
You c an u se t he z oom l ever a nd f ocus l ever t o a djust t he z oom v alue a nd f ocus v alue.
Steps:
1) Disassemble t he c amera.
2) View t he c amera i mage u sing t he m onitor.
3) Loosen t he z oom l ever a nd m ove t he l ever b etween T ( Tele) a nd W ( Wide) t o o btain t he d esired
angle o f v iew.
4) Tighten t he z oom l ever.
5) Loosen t he f ocus l ever a nd m ove t he s crew b etween F ( Far) a nd N ( Near) t o o btain t he o ptimum
focus.
6) Tighten t he f ocus l ever.
7) Assemble t he c amera.
Zoom/Focus L ever
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
1
2
3
Tilting

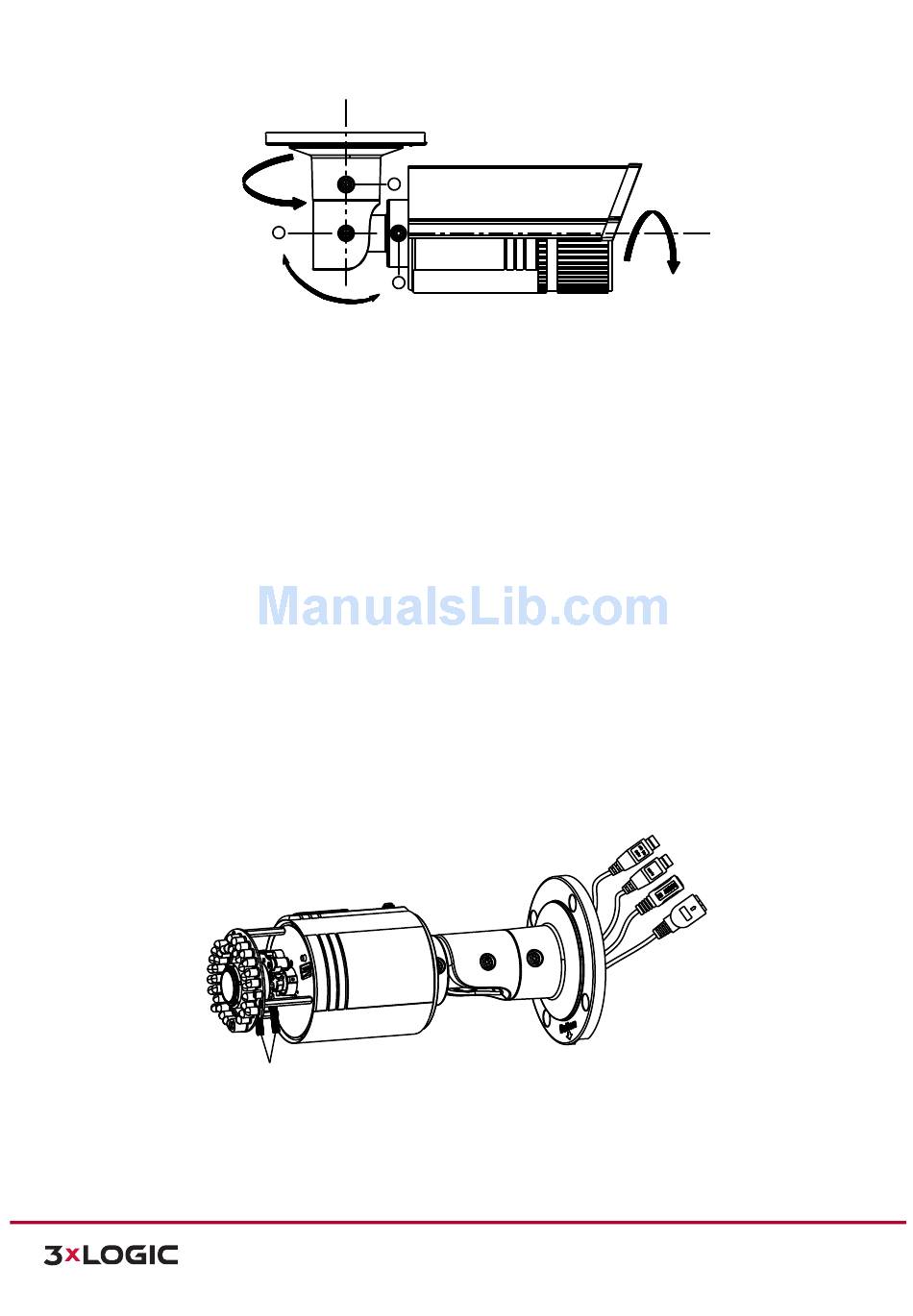

Lens A djustment
Figure 7-­‐15
Zoom a nd F ocus A djustment
Figure 7-­‐16
V ISIX N etwork C amera
|
Installation Manual
Rotation
