Wall M ounting
Steps:
1) Drill t he s crew h oles a nd t he c able h ole o n t he w all a ccording t o t he s upplied d rill t emplate.
2) Secure t he b ack b ox t o t he w all w ith t he s upplied s crews.
NOTE: Position t he s ide c able o utlet d irectly b elow t o p revent m oisture f rom g etting i nside t he c amera.
3) Loosen t he s et s crews w ith t he h ex k ey ( supplied) t o r emove t he b ubble; r emove t he b lack l iner.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Installation Manual
Drill T emplate
4
2 1
3
Screw h ole 3 : f or
Mounting B ase
3
2 1
4

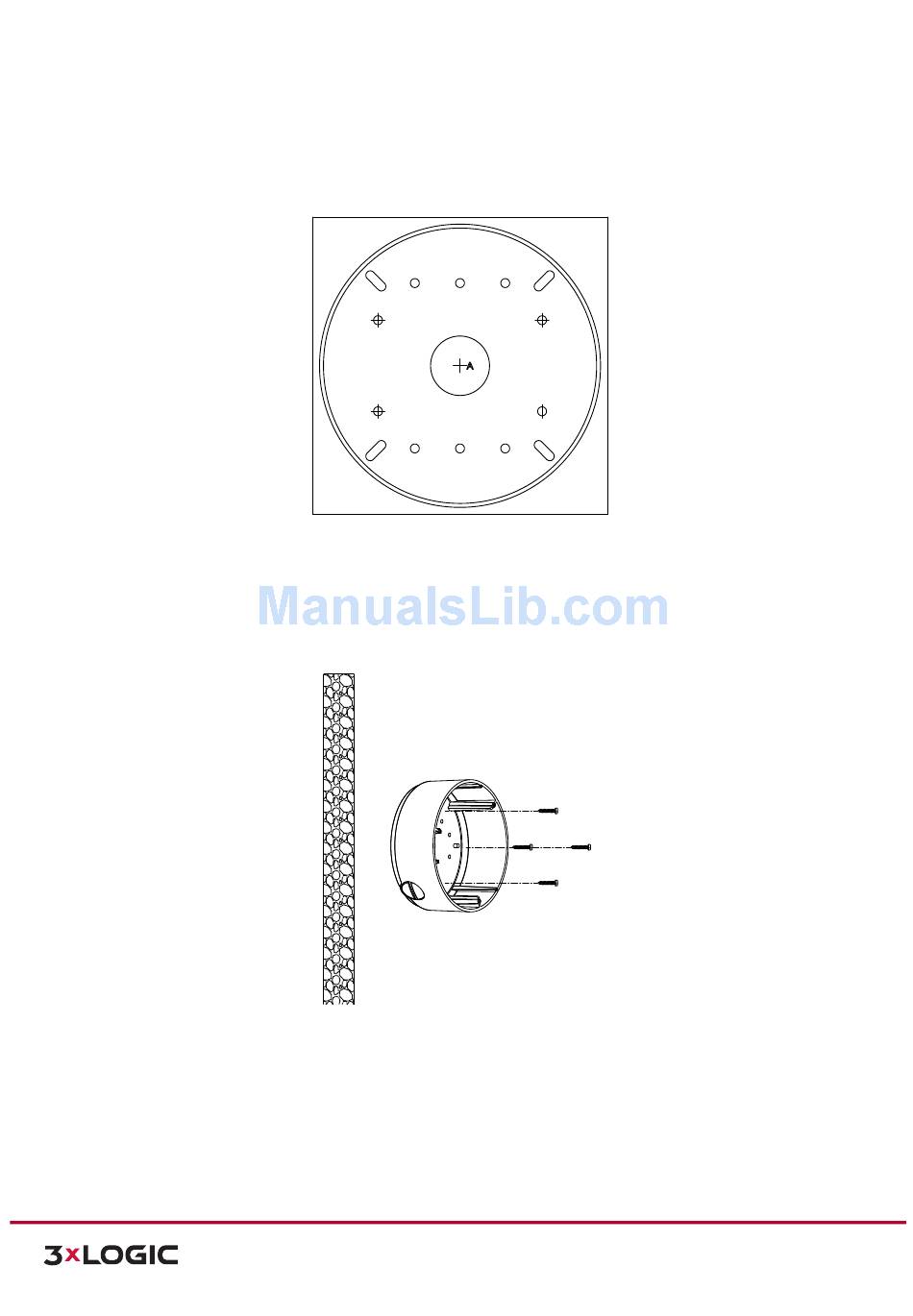

Drilling T emplate
Figure 6-­‐29
Secure B ack b ox
Figure 6-­‐30
V ISIX N etwork C amera
|
4
2
3
Hole A : f or c ables r outed
through t he c eiling
3
2
4
