4) Install t he d ome d rive t o t he b ack b ox a nd p ull t he c ables t hrough t he c able o utlet o n t he b ottom o f
the b ack b ox.
NOTE:
If y ou n eed t o p ull t he c able t hrough t he s ide o utlet o f t he c amera, p lease r emove t he c over a nd u se
water-­‐proof j oints a nd w ater-­‐proof p ipe t o r oute t he c ables.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Installation Manual
Disassembling

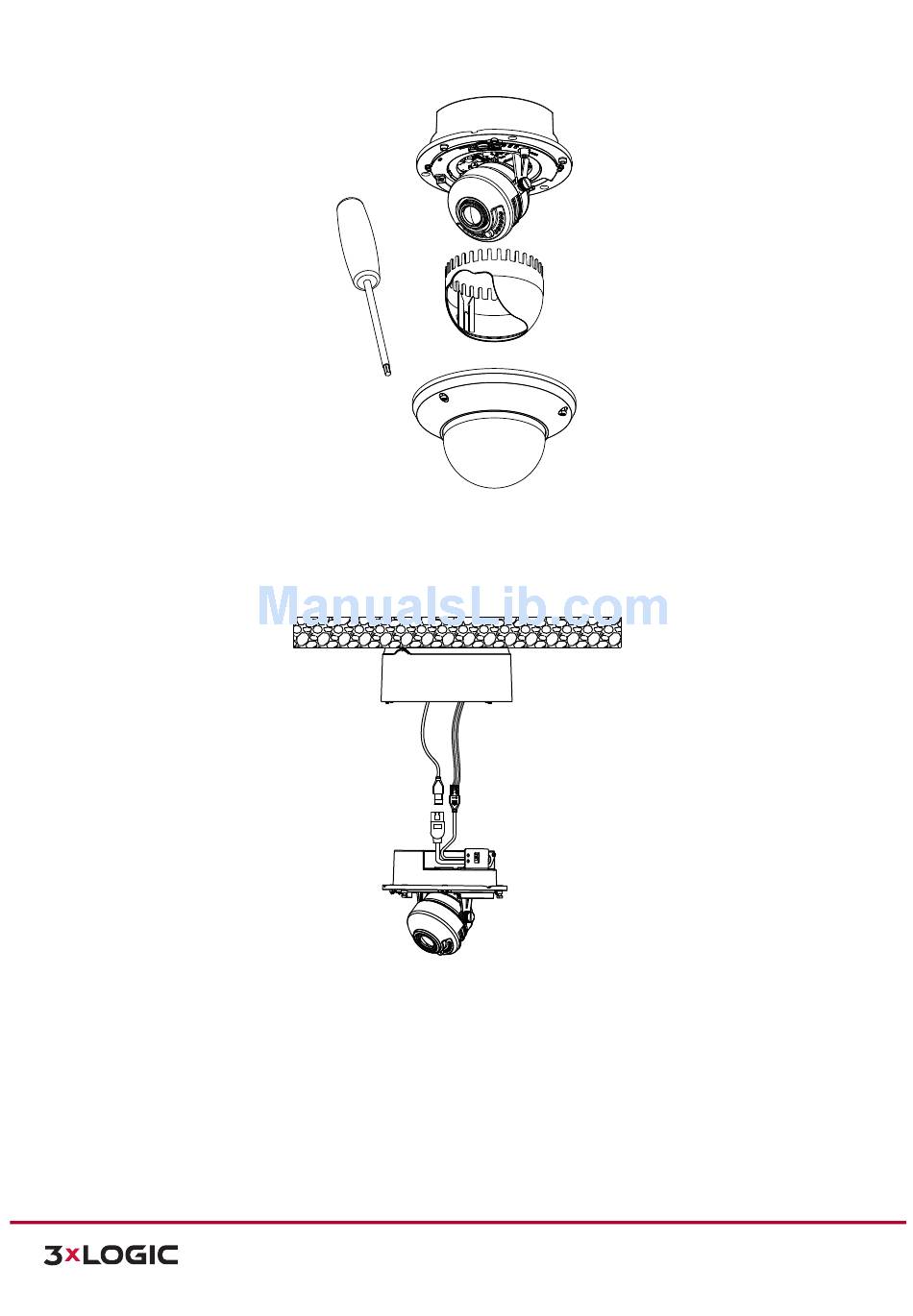

Figure 6-­‐21
Dome D rive I nstalling
Figure 6-­‐22
V ISIX N etwork C amera
|
