Press a nd h old R ESET f or 1 0s w hen t he c amera i s p owering o n o r r ebooting t o r estore t he
NOTE:
default s ettings, i ncluding t he u ser n ame, p assword, I P a ddress, p ort N o., e tc.
WPS S etup
WPS ( Wi-­‐Fi P rotected S etup, a lso k nown a s A OSS o r Q SS) i s a c omputing s tandard t hat a ttempts t o a llow e asy
establishment o f a s ecure w ireless n etwork. R efer t o u ser m anual f or d etails.
A w ireless r outer w ith t he W PS f unction i s r equired t o e nable t he W PS f unction o f t he c amera. R efer t o t he
!
steps b elow.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC

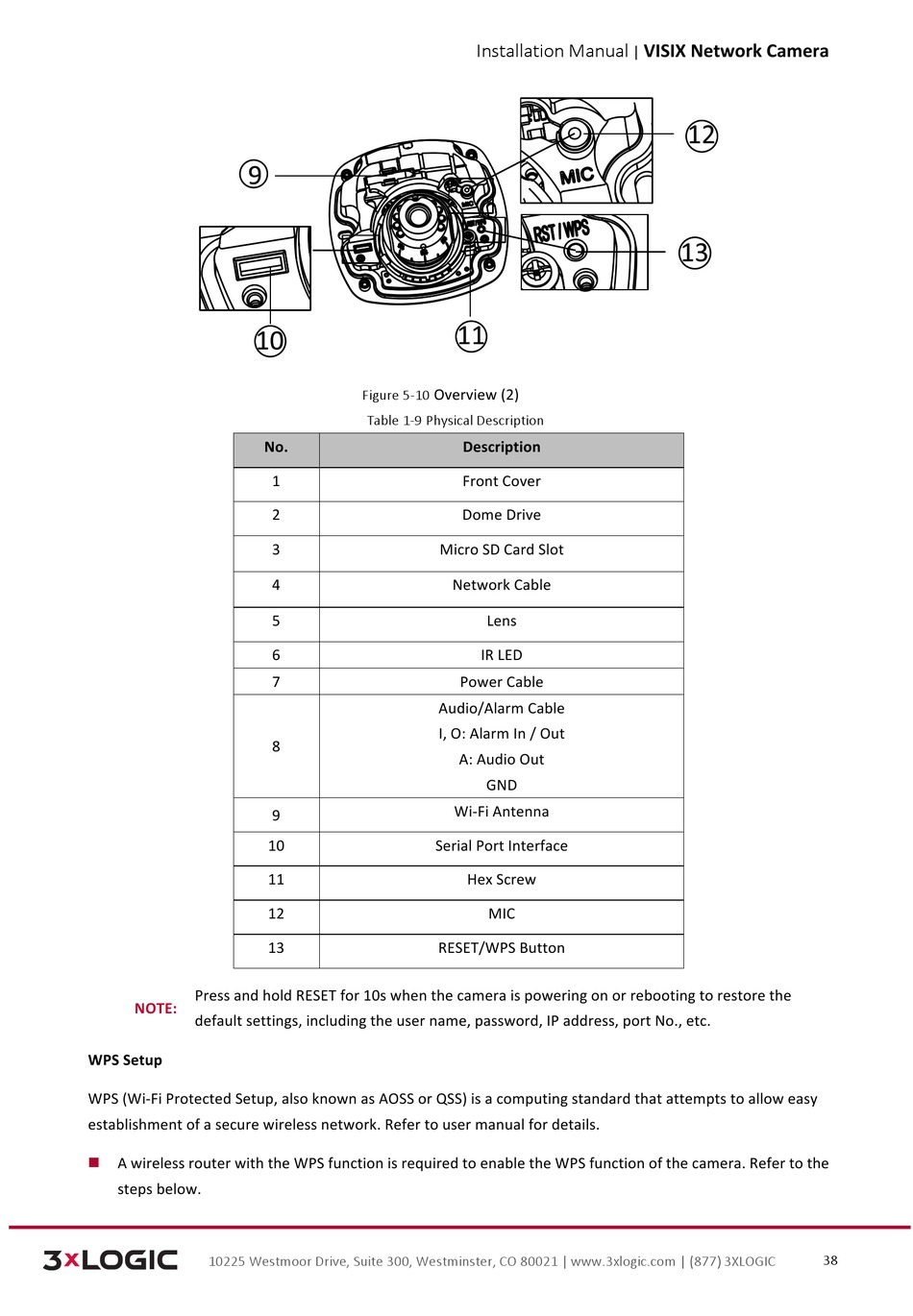

Overview ( 2)
Figure 5-­‐10
Table 1-­‐ 9 Physical Description
No.
1
2
3
4
5
6
7
8
9
10 Serial P ort I nterface
11
12
13
Installation Manual
Description
Front C over
Dome D rive
Micro S D C ard S lot
Network C able
Lens
IR L ED
Power C able
Audio/Alarm C able
I, O : A larm I n / O ut
A: A udio O ut
GND
Wi-­‐Fi A ntenna
Hex S crew
MIC
RESET/WPS B utton
