Table of Contents
No.
1
2
3
4
5
AVAILABLE   M OUNTS
Universal   C orner   M ount   ( 3xLOGIC   P roduct   # :
!
Universal   P ole   M ount   (   3 xLOGIC   P roduct   # :
!
These   c ameras   h ave   a   b uilt-­‐in   m ount   f or   w all   a nd   c eiling   m ount   a pplications.
INSTALLATION
Steps:
1) Attach   t he   m ounting   b ase   t o   t he   w all.
2) Attach   t he   m ounting   b racket   w ith   t he   c amera   t o   t he   m ounting   b ase.
NOTE:
The   " bottom"   m ark   o n   t he   m ounting   b ase   s hould   a lign   w ith   t he   " bottom"   m ark   o n   t he   m ounting
bracket.

10225  Westmoor  Drive,  Suite  300,  Westminster,  CO  80021  |   w ww.3xlogic.com  |  (877)  3XLOGIC

Installation  Manual
Table  1-­‐ 1 9
Physical  Description
Description
10M/100M   S elf-­‐adaptive   E thernet   I nterface
Power   S upply   I nterface
IN,   G :   A larm   i nput   i nterface
1A,   1 B:   A larm   o utput   i nterface
D+,   D -­‐:   R S-­‐485   i nterface
AUDIO   I N,   G :   A udio   i nput   i nterface
AUDIO   O UT,   G :   A udio   o utput   i nterface
V
V
X-­‐POLE)

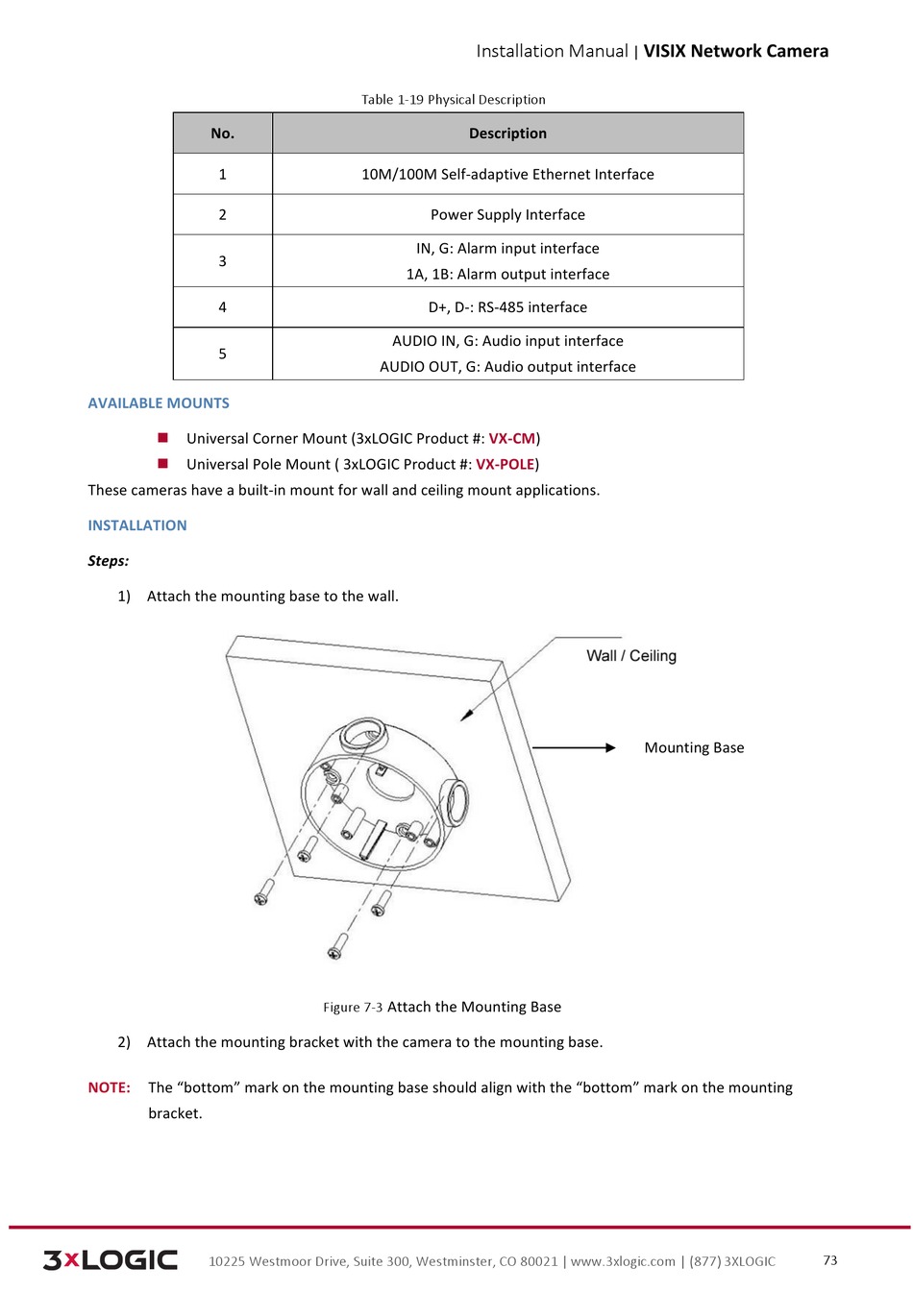

Attach   t he   M ounting   B ase
Figure  7-­‐3
V ISIX   N etwork   C amera
  |
X-­‐CM)
Mounting   B ase



73
