View A ngle A djusting
Purpose:
3-­‐axis ( pan/tilt/rotation) a djusting a llows a djustment f or o ptimum c amera r otation a nd p lacement.
Pan A djustment
Steps:
1) Loosen t he l ock s crew-­‐1.
2) Adjust t he p anning p osition o f t he c amera. T he a djusting r ange i s f rom 0 d egrees t o 3 60 d egrees.
3) Tighten t he l ock s crew-­‐1.
Tilt A djustment
Steps:
1) Loosen t he l ock s crew-­‐2.
2) Adjust t he t ilting p osition o f t he c amera. T he a djusting r ange i s f rom 0 d egrees t o 9 0 d egrees.
3) Tighten t he l ock s crew-­‐2.
Rotation A djustment
Steps:
1) Loosen t he l ock s crew-­‐3.
2) Rotate t he r otation p osition t o a djust t he a zimuth a ngle o f t he i mage. T he a djusting r ange i s f rom 0
degrees t o 3 60 d egrees.
3) Tighten t he l ock s crew-­‐3.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Installation Manual

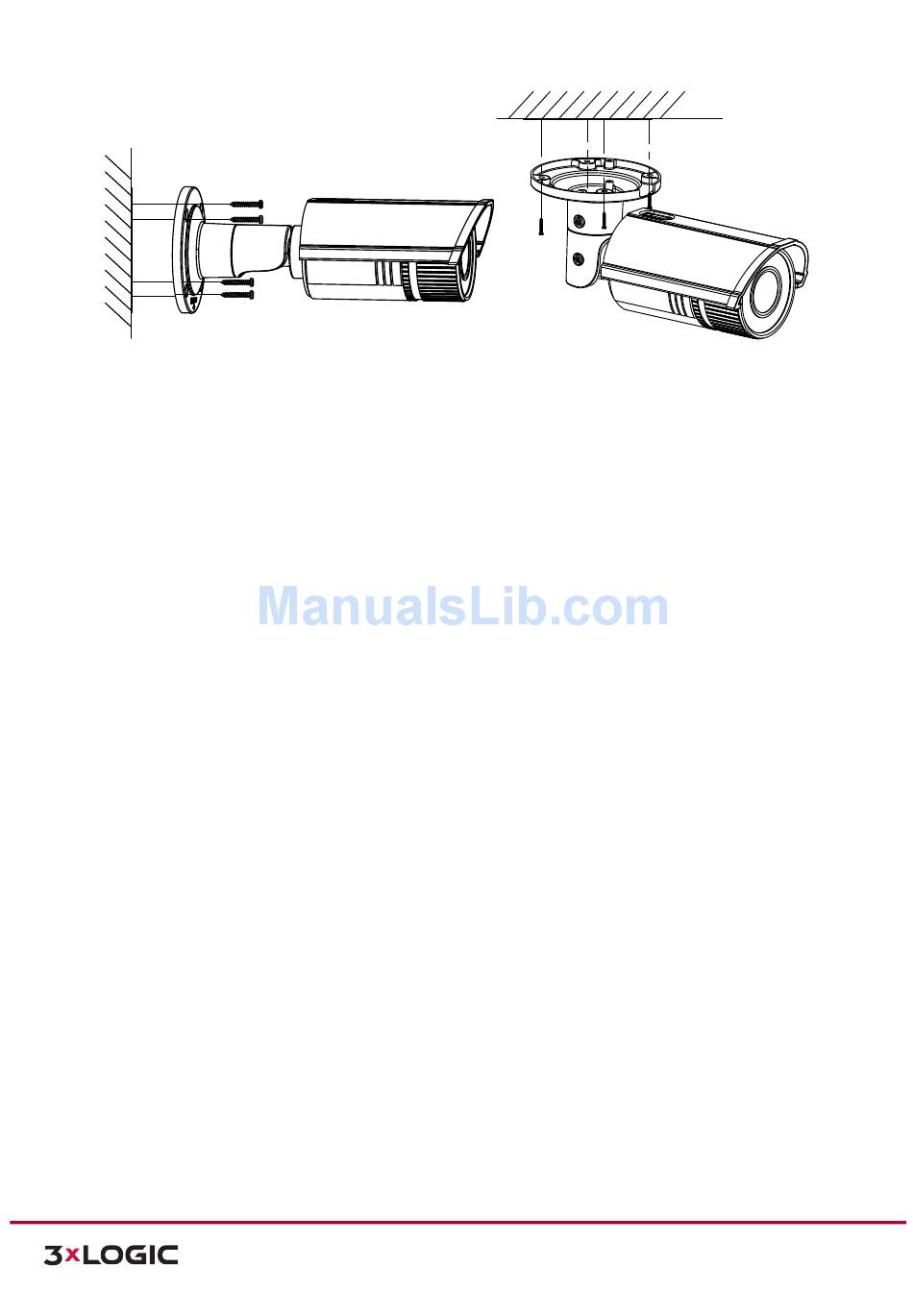

Secure t he C amera
Figure 7-­‐14
