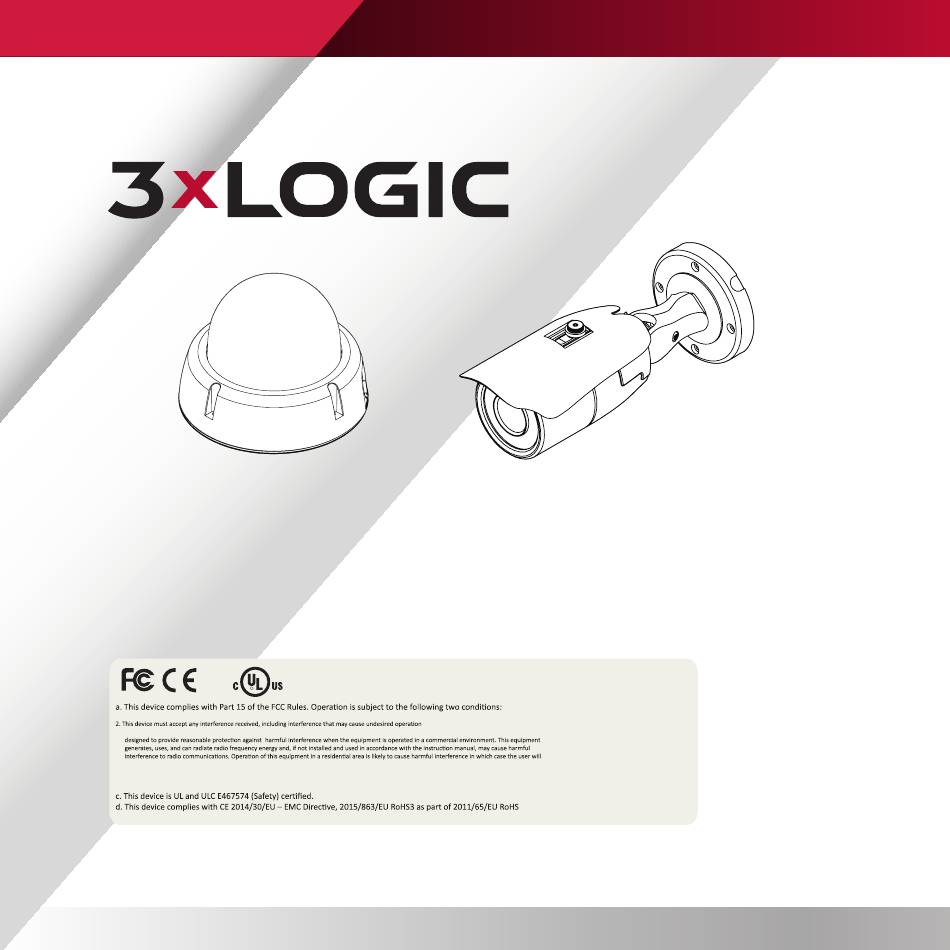

VISIX Gen III HD Analog Cameras
OSD Settings Menu Guide
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
R
1. This device may not cause harmful interference.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
be required to correct the interference at his own expense.
b. This device complies with CAN ICES-3 (A)/NMB-3(A)
e. This device complies with WEEE
VA-2MD-OD-RIWH-02
Ver. 1.0 / 2020.05
VA-2MB-OD-RIWH-02
(877) 3xLOGIC | www.3xlogic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISIX Gen III Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3xLogic VISIX Gen III Series

Summary of Contents for 3xLogic VISIX Gen III Series

  • Page 1 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are be required to correct the interference at his own expense. b. This device complies with CAN ICES-3 (A)/NMB-3(A) e. This device complies with WEEE (877) 3xLOGIC | www.3xlogic.com...

  • Page 2: Table Of Contents

    Contents OSD MENU OSD Menu Tree Exposure Settings Color Settings Day & Night Settings Function Settings Motion Settings Privacy Settings Setup Mebnu Exit Menu Pg. 2...

  • Page 3: Osd Menu Tree

    Settings can be adjusted using the built-in OSD joystick. Refer to your camera's quick start guide for details on the location and operation of the OSD joystick. Product documentation is available at the www.3xlogic.com Product Documentation library . EXPOSURE DAY & NIGHT EXPO D&N...
  • Page 4 OSD Menu Tree MOTION MOTI MOTION OFF / ON TRANS 0 ~ 3 DET WINDOW EXIT JUMP DET TONE 0 ~ 4 MDRECT FILL OFF / ON SETUP S ET SENSITIVITY 0 ~ 10 COMMUNICA MOTION OSD OFF / ON OFF / RIGHT UP / LEFT TEXT ALARM OFF / ON...

  • Page 5: Exposure Settings

    Exposure Settings LENS MANUAL : Manual mode supports the fixed board lens or the manual iris lens. AUTO : AUTO mode sets the camera’s iris automatically. EXPOSURE LENS EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO LEVEL BACKLIGHT BRIGHTNESS SHUTTER AUTO DEFOG 2-MOTOR...
  • Page 6 Exposure Settings 4. 2-MOTOR Set the 2-Motor Lens sub-menu. EXPOSURE LENS 2-MOTOR LEVEL AF MODE AUTO EXPO D&N FUNC MOTI PRIV EXIT BRIGHTNESS ZOOM SET STOP LENS AUTO SHUTTER AUTO FOCUS SET ____ BACKLIGHT 2-MOTOR SCANNING HALF RETURN ONEPUSHAF DEFOG SYNC TDN INITIAL SENS-UP...
  • Page 7 Exposure Settings BACKLIGHT EXPOSURE HME (HIGHLIGHT MASKING EXPOSURE) EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO HME allows objects to appear clearly on the screen by BACKLIGHT masking extremely bright areas. DEFOG To setup HME, set the level and color. SENS-UP The lower the setting, the darker the masking areas have to be.
  • Page 8 Exposure Settings EXPOSURE DEFOG MODE AUTO EXPO D&N FUNC MOTI PRIV EXIT LEVEL MIDDLE LENS AUTO RETURN BACKLIGHT ____ DEFOG SENS-UP 3D DNR HIGH EXIT JUMP DRC (DYNAMIC RANGE COMPRESSOR) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image.

  • Page 9: Color Settings

    Color Settings WB MODE COLOR WHITE BAL. C-TEMP 5000K EXPO D&N FUNC MOTI PRIV EXIT R-GAIN WHITE BAL. AUTO B-GAIN COLOR GAIN RETURN RETURN AUTO Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K˚ and 12000K˚. AUTO-EX Auto White Balance Control mode compensates for color temperature changes lower than 2500K˚...

  • Page 10: Day & Night Settings

    Day & Night Settings DAY / NIGHT EXPO D&N FUNC MOTI PRIV EXIT MODE AUTO AGC THRES ____ AGC MARGIN ____ CDS THRES CDS MARGIN EXTERN SW EXT LED AUTO DELAY SMART IR EXIT JUMP MODE AUTO : Day/ Night switch will be based on the CDS levels. COLOR : The camera always stays in day/color mode.
  • Page 11 Day & Night Settings DAY / NIGHT EXPO D&N FUNC MOTI PRIV EXIT MODE AUTO AGC THRES ____ AGC MARGIN ____ CDS THRES CDS MARGIN EXTERN SW EXT LED AUTO DELAY SMART IR EXIT JUMP EXT LED AUTO : The LEDs are enabled/ disabled by the CDS Sensor on the LED Board. OFF : The camera’s LEDs are disabled manually.

  • Page 12: Function Settings

    Function Settings FUNCTION EXPO D&N FUNC MOTI PRIV EXIT SHARPNESS GAMMA 0.55 MIRROR FLIP RETURN SHARPNESS 0 ~ 10 - Sets the image sharpness. The higher the number, the sharper the image. GAMMA 0.45 ~ 0.75 - Select the desired gamma level. 0.55 is default setting. MIRROR / FLIP MIRROR : Reflects the camera horizontally.

  • Page 13: Motion Settings

    Motion Settings The camera can detect movement and display an alarm on the screen, when movement is detected. MOTION DET WINDOW EXPO D&N FUNC MOTI PRIV EXIT MOTION WINDOW USE DET WINDOW WINDOW ZONE DET TONE ____ DET H-POS MDRECT FILL ____ DET V-POS SENSITIVITY...
  • Page 14 Motion Settings The camera can detect movement and display an alarm on the screen, when movement is detected. MOTION DET WINDOW EXPO D&N FUNC MOTI PRIV EXIT MOTION WINDOW USE DET WINDOW WINDOW ZONE DET TONE ____ DET H-POS MDRECT FILL ____ DET V-POS SENSITIVITY...

  • Page 15: Privacy Settings

    Privacy Settings You can hide some parts of the screen for privacy masking. A total of 16 dierent privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. PRIVACY EXPO D&N FUNC MOTI PRIV EXIT PRIVACY ZONE NUM ZONE DISP...

  • Page 16: Setup Mebnu

    Setup Menu SETUP COMMUNICA EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA CAM ID CAM TITLE BAUDRATE 9600 IMAGE RANGE FULL SET DONE FREQ 60Hz RETURN LANGUAGE INITIAL EXIT JUMP COMMUNICATION Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. - CAM ID : Provide an ID number for the camera (0 ~ 255).
  • Page 17 Setup Menu SETUP EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA CAM TITLE IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP FREQ When the camera’s image appears to have flickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Korean.

  • Page 18: Exit Menu

    Exit Menu EXIT EXPO D&N FUNC MOTI PRIV EXIT SAVE&EXIT EXIT SAVE & EXIT Exit the OSD menu after saving the recent changes. EXIT Exit the OSD menu without saving any changes. Pg. 18...
  • Page 19 (877) 3XLOGIC | www.3xlogic.com Simple. Scalable. Secure. 3xLOGIC 2020 © Pg. 19...
