NOTE: As t he l ens h as a lready b een f actory a djusted t o t he b est i mage, y ou j ust n eed t o a djust t he
panning p osition a nd t ilting p osition t o g et t he d esired s urveillance a ngle.
6) Reinstall t he b ubble a nd t ighten t he s crews.
Micro S D C ard I nstallation
Steps:
1) Loosen t he l ock s crews o n t he b ubble t o d isassemble t he c amera.
2) Insert t he M icro S D c ard t o t he c ard s lot.
3) (Optional) P ush t he i nserted M icro S D c ard i nside, a nd t he M icro S D c ard w ill b e s prung o ut.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | w ww.3xlogic.com | (877) 3XLOGIC
Installation Manual
Bubble R einstallation

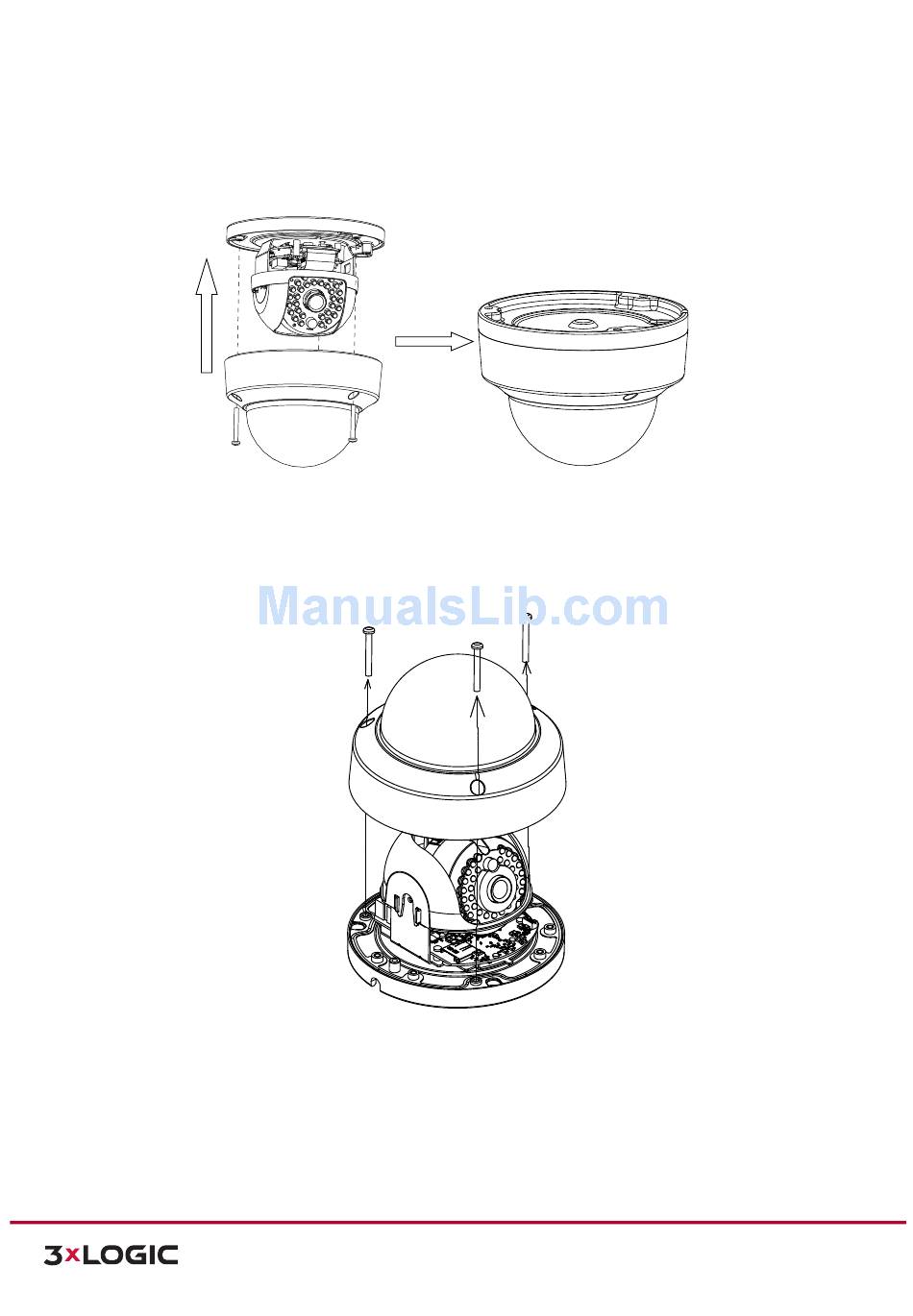

Figure 6-­‐7
Disassemble t he C amera
Figure 6-­‐8
