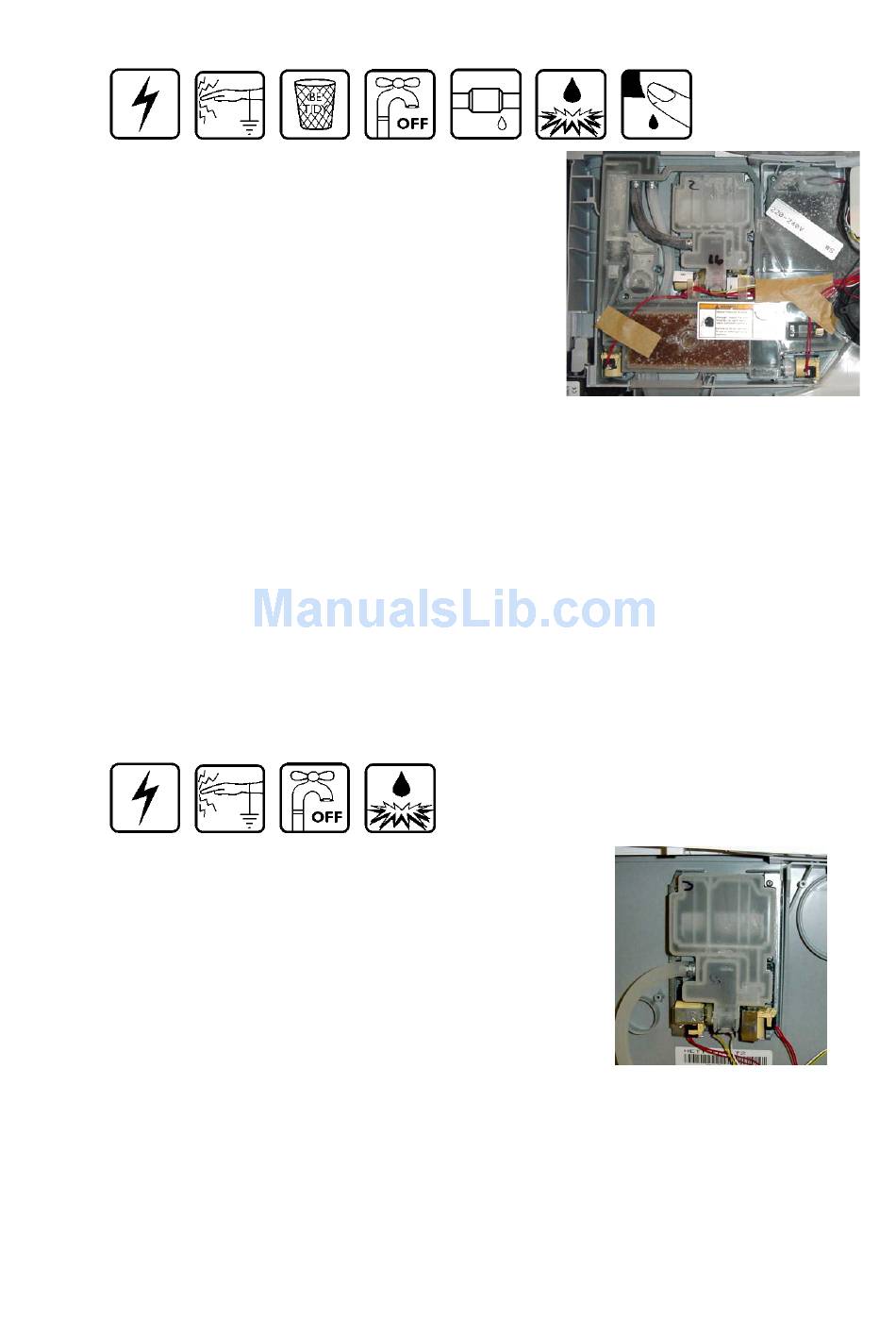

Water Softener (where fitted)

8.8.1 Remove the drawer front (refer Section 8.1).
8.8.2 Disconnect the wiring loom connections to the water softener diverter
valve, brine pump and salt level detector, and remove the dispenser
wiring loom connection to the electronic controller.
8.8.3 Use a flat blade screwdriver to open the salt level indicator LED
cover, and remove the LED from the water softener.
8.8.4 Unclip the fill hose and the dispenser hose form the water softener.
8.8.5 Remove the four T10 torx drive screws securing the water softener to
the tub.
8.8.6 The water softener can now be removed from the product.
8.8.7 To refit, place the overflow 'O' ring on the water softener and lubricate
the tub overflow with a water-soluble lubricant e.g. Glycerol or similar.
8.8.8 Place the salt tank 'O' ring in the tub. Lubricate the salt tank
flange on the water softener.
through the water softener and plug it into the electronic
controller.
8.8.10 Place the water softener in the tub and apply enough pressure to seat
the 'O' rings.
The overflow should sit almost flush with the inside of the tub.
The salt tank should be recessed by approx. 1mm from the inside of
the tub.
8.8.11 Refit the screws, hoses, harness connectors and LED.
Important: Whenever a water softener is replaced for a blocked pipe
interrupter, replace the fill hose.
8.9

Detergent Dispenser

8.9.1 Remove the drawer front (refer Section 8.1).
8.9.2 Disconnect the two wiring loom connections from the dispenser coils.
Note: Push back the locking tabs to allow the connectors to release.
8.9.3 With a small bladed screwdriver, carefully release the small plastic clips
holding the rinse aid indication LED in place and remove the LED.
8.9.4 Use pliers to release the clamp and remove the fill hose from the dispenser.
8.9.5 While holding the dispenser, unscrew the six T10 Torx drive screws securing
the two brackets to the dispenser.
8.9.6 The dispenser can now be removed from inside the tub.
8.9.7 To open up the dispenser door fully, first open the door using the release
catch, then squeeze the top sides of the door together. This will release the
door to the fully open position. This can be done with the dispenser in place.
Refit in reverse manner ensuring the dispenser gasket is located correctly.
Pass the dispenser wiring loom
