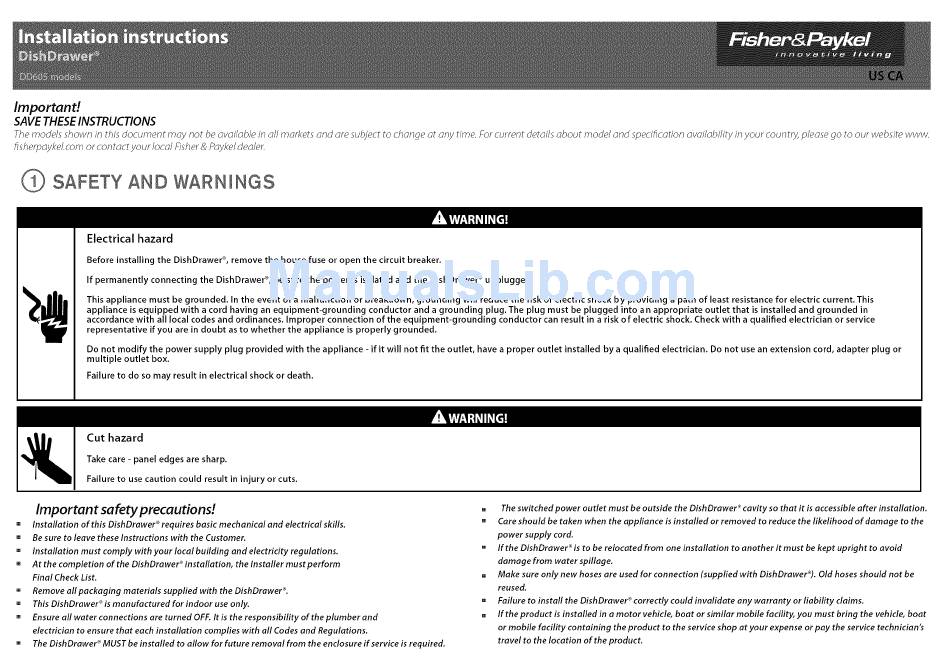

Fisher & Paykel DishDrawer DD605 Prefinished LCD Installation Instructions Manual

Important!
SAVE THESEINSTRUCTIONS
The models shown in this documen_ moy not be _vaildble in all markets and are subject to _hange a_ any time. For _urren_ details about model and specification availability in your _ountry, please go to our website www.
_sherpaykel.com or _onta_ t your lo_ al Fisher& Paykel dealer.
SAFETY AND WARNINGS
Electrical hazard
Before installing the DishDrawer ®, remove the house fuse or open the circuit breaker.
If permanently connecting the DishDrawer ®, be sure the power is isolated and the DishDrawer ® unplugged.
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances. Improper connection of the equipment-grounding conductor can result in a risk o f electric shock. Check with a qualified electrician or service
representative if you are in doubt as to whether the appliance is properly grounded.
Do not modify the power supply plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Do not use an extension cord, adapter plug or
multiple outlet box.
Failure to do so may result in electrical shock or death.
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Important safety precautions!
[] Installation of this DishDrawer ®requires basic mechanical and electrical skills.
[] Be sure to leave these Instructions with the Customer.
u Installation must comply with your local building and electricity regulations.
[] At the completion of the DishDrower ®installation, the Installer must perform
Final Check List.
u Remove all packaging materials suppfied with the DishDrawer ®.
[] This DishDrawer ®is manufactured for indoor use only.
[] Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
[] The DishDrawer ®MUST be installed to allow for future removal from the enclosure if service is required.
u The switched power outlet must be outside the DishDrawer ®cavity so that it is accessible after installation.
[] Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to the
power supply cord.
u If the DishDrawer ®is to be relocated from one installation to another it must be kept upright to avoid
damage from water spillage.
[] Make sure only new hoses are used for connection (supplied with DishDrawer®). Old hoses should not be
reused.
u Failure to install the DishDrawer ®correctly could invalidate any warranty or liability claims.
[] If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle, boat
or mobile facility containing the product to the service shop at your expense or pay the service technician's
travel to th e location of the product.
