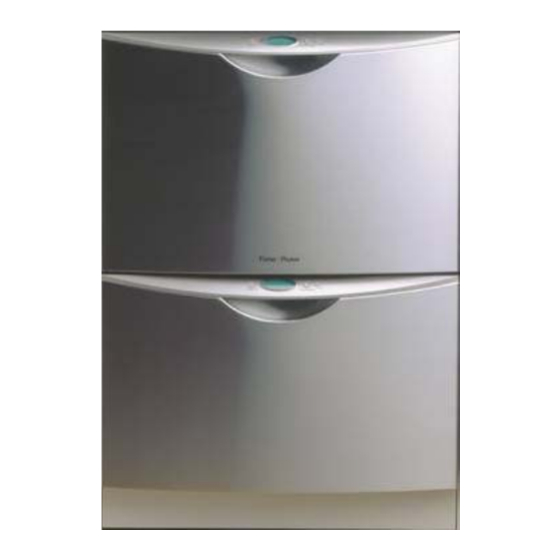

- Page 1 User guide DishDrawer DS605 and DD605 models GB IE...
-
Page 3: Table Of Contents
Contents Electrical connection Safety and warnings Controls (Integrated and Prefinished - no LCD) Controls (Prefinished models with LCD) Operation Wash programme chart Caring for your dinnerware Dishwasher standards test Accessories Loading Detergent dispenser Detergent detergent Water softener Rinse aid dispenser Option adjustments Care and cleaning Troubleshooting... -
Page 4: Electrical Connection
Electrical connection For Great Britain only Fuse cover Important! Fuse This appliance must be earthed. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13 amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows: Remove the fuse cover and fuse. -
Page 5: Safety And Warnings
Safety and warnings Your DishDrawer has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following guidelines in mind when you are using your DishDrawer®. Please read all instructions before operating the DishDrawer®. Important safety precautions The information in this manual must be followed to minimise the risk of fire or explosion or to prevent property damage, personal injury or loss of life. - Page 6 Safety and warnings Important safety precautions Installation This DishDrawer® must be installed and located in accordance with the Installation Instructions before it is used. If you did not receive Installation Instruction sheets with your DishDrawer®, you can order them by calling your Authorised Service Agent or from the Fisher & Paykel website, www.fisherpaykel.com.
- Page 7 Safety and warnings Important safety precautions Important! Under no circumstances should you open the drawer whilst the DishDrawer® is in operation. Operational Always press the button to pause and wait until you hear the three additional beeps before opening the drawer. The DishDrawer®...
-
Page 8: Controls (Integrated And Prefinished - No Lcd)
Controls (Integrated and Prefinished - no LCD) If you have a double DishDrawer®, each drawer has its own controls and can run independently of the other. Power button button turns the DishDrawer® on or off. Opening the drawer will automatically turn the DishDrawer® on for 30 seconds. - Page 9 Controls (Integrated and Prefinished - no LCD) Childlock The Childlock feature locks the drawer and disables all the buttons on the integrated badge. To activate, press and hold the button until you hear two beeps (5 seconds). The light above the button is lit when Childlock is activated.
-
Page 10: Controls (Prefinished Models With Lcd)
Controls (Prefinished models with LCD) If you have a double DishDrawer®, each drawer has its own control panel and can run independently of the other. Time remaining (Delay Start) Wash programme Delay Start symbol progress symbol Power button Lock button Start/Pause button Electronic display... - Page 11 Controls (Prefinished models with LCD) Keylock The Keylock feature disables all the buttons on the control panel. To activate, press and hold the button until you hear one beep (3 seconds). The symbol appears in the electronic display when the Keylock feature is activated. Childlock The Childlock feature locks the drawer and disables all the buttons on the control panel.
-
Page 12: Operation
Operation Load dishes Start Remove all food scraps and load the dishes. Close the drawer and press the button. Add detergent Finish Check rinse aid The DishDrawer® will beep six times to Press the button indicate the end of the wash programme. At Select a wash programme the end of the wash programme the drying The length of the wash programme will... -
Page 13: Wash Programme Chart
Wash programme chart Standard Wash Programme - when to use Heavy Normal Fast Delicate Rinse Heavily soiled Dishes with Lightly soiled Lightly soiled and Prevents odours and pots, pans and normal soils dishes. heat sensitive soils drying on dishes. dishes. for optimum crockery. -
Page 14: Caring For Your Dinnerware
Caring for your dinnerware The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in the DishDrawer®. Remember, if in any doubt about any aspect concerning items washed in the DishDrawer®, follow the instructions from the manufacturer of the items, or wash the item by hand. -
Page 15: Dishwasher Standards Test
Dishwasher standards test The DishDrawer®s are tested to EN50242 standards for both wash and dry performance. The following are loading pattern diagrams, detergent quantities and rinse aid quantities used for the DishDrawer®. Wash Programme Normal Eco Detergent Quantities 2.5g (pre wash) 15.5g (main wash) Rinse Aid Setting Water Softener setting... -
Page 16: Accessories
Accessories The inserts and racks can be added or removed to suit your individual needs. If you have the double DishDrawer® model, some of the accessories are interchangeable between the two drawers. For example you can combine the two Mega Racks into one drawer and wash all cups and glasses, leaving the other drawer for plates and larger items. - Page 17 Accessories Cup racks Cups, glasses and kitchen utensils can be placed on the left and right hand side of the cup racks. For best performance ensure there are no large items below, blocking the wash water from reaching the cup racks.
-
Page 18: Loading
Loading Wash water for the DishDrawer® comes from the spray arm which is situated inside the base of the drawer. The spray arm rotates, providing wash water to all areas of the wash compartment so care needs to be taken when loading dishes to ensure there is enough space for the water to reach all areas, particularly the cup racks. - Page 19 Loading How NOT to load your DishDrawer® Overcrowded and wash water will not The plates are nesting together and wash reach some of the dinnerware. water may not get through. Cups, glasses and bowls must have their Ensure cutlery items are not nesting or stuck openings facing down.
-
Page 20: Detergent Dispenser
Detergent dispenser Important! Only use powdered detergent recommended for domestic automatic dishwashers in the detergent dispenser. Dishwasher detergents are strongly alkaline and can be dangerous if swallowed. Avoid contact with skin and eyes. Keep children and infirm persons away from the DishDrawer® when the drawer is open. Check that the detergent receptacle is empty after completion of the wash cycle. -
Page 21: Detergent Detergent
Dishwasher detergent Detergent quantities The detergent quantities recommended below are for individual drawers. Wash programmes main wash (g)* Heavy Normal Delicate Fast * 5g equates to approximately 1 teaspoon, 15g equates to approximately 1 tablespoon. Dishwasher tablets Dishwasher tablets can be used instead of powdered detergent. Tablets can either be placed in the cutlery basket or alternatively, placed directly in the wash compartment as below. -
Page 22: Water Softener
Water softener Setting up the water softener Using hard water (above 100ppm) for dishwashing can be detrimental to the performance of your DishDrawer®. Glasses will become opaque and dishes will become spotted or covered in a white film. Determine the water hardness in your local area Your local water company will be able to provide you with information. - Page 23 Water softener Important! The water softener must always be filled with granular salt made especially for dishwasher water softening systems. We do not recommend the use of cooking salt like table salt, rock salt or pellets as they may contain impurities that will impair or diminish the life of the water softener. The salt reservoir Water softening can only take place when there is salt in the reservoir.
-
Page 24: Rinse Aid Dispenser
Rinse aid dispenser We highly recommend the regular use of liquid rinse aid to give the best drying results. Rinse aid gives a streak free, sparkling clean look to glass and chinaware. In addition it prevents metal from tarnishing. The rinse aid dispenser is on the inside of the drawer, located underneath the detergent dispenser. -
Page 25: Option Adjustments
Reduce the Rinse aid setting if there is excess foam after a wash programme. Increase the Rinse aid setting if dishes are wet or streaky after a wash programme. Water Softener setting (DS605H and DD605H only) Refer to the Water Softener section. - Page 26 Option adjustments...
- Page 27 Option adjustments...
-
Page 28: Care And Cleaning
Care and cleaning Cleaning the surfaces Important! We do not recommend the use of the following cleaning aids on your DishDrawer® as they may damage the surfaces: Plastic or stainless steel scouring pads Abrasive, solvent, household cleaners Acid or alkaline cleaners Hand washing liquids or soap Laundry detergents or disinfectants Proprietary ‘Stainless Steel’... - Page 29 Care and cleaning Cleaning the drain filter, spray arm and filter plate We recommend that the drain filter is cleaned whenever there is evidence of food particles. The spray arm and filter plate may need cleaning about once a month in normal use or more often should the need arise.
- Page 30 Care and cleaning Cleaning the spray arm and filter plate Ensure the DishDrawer® is cool before you start cleaning and follow the instructions for removing the drain filter and spray arm. Remove the basket carefully. Lift from the back end first to prevent knocking the detergent and rinse aid dispenser.
-
Page 31: Troubleshooting
Mega rack incorrectly Refer to the accessories section for correct installed. installation. Insufficient salt in the Ensure there is enough salt in the water water softener (DD605H or softener and/or increase the water DS605H). softener setting. Foaming Incorrect amount of Refer to the detergent section or consult the detergent. - Page 32 DishDrawer® overloaded/ Refer to the section on loading. incorrectly loaded. Insufficient or no salt in the Ensure there is enough salt in the water water softener (DD605H or softener and/or increase the water DS605H). softener setting. DishDrawer® Some foods, like tomato...
-
Page 33: Fault Codes
Fault codes How to recognise a fault code When a fault has occurred, the DishDrawer® will continuously beep every second. The fault code will be displayed on the electronic display for prefinished models and on the wash program selector for integrated models. Each fault code is shown in the following chart for prefinished and integrated models. - Page 34 Fault codes Fault Codes Possible Causes What to Do Flood switch has been Turn the water and power supply to the activated. DishDrawer® off and call your Authorised Service Centre. Motor problem. Call your Authorised Service Centre. Temperature sensor Ensure water coming in through the inlet failed.
- Page 35 Fault codes Fault Codes Possible Causes What to Do Fill Fault Turn the DishDrawer® water supply on. Ensure the spray arm is on and can rotate about the centre. If the DishDrawer® is full of water, it will need to be emptied manually. The water block has been tripped (if present).
-
Page 36: Warranty And Service
Warranty and service Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to the Service &... - Page 40 Copyright © Fisher & Paykel 2007. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
