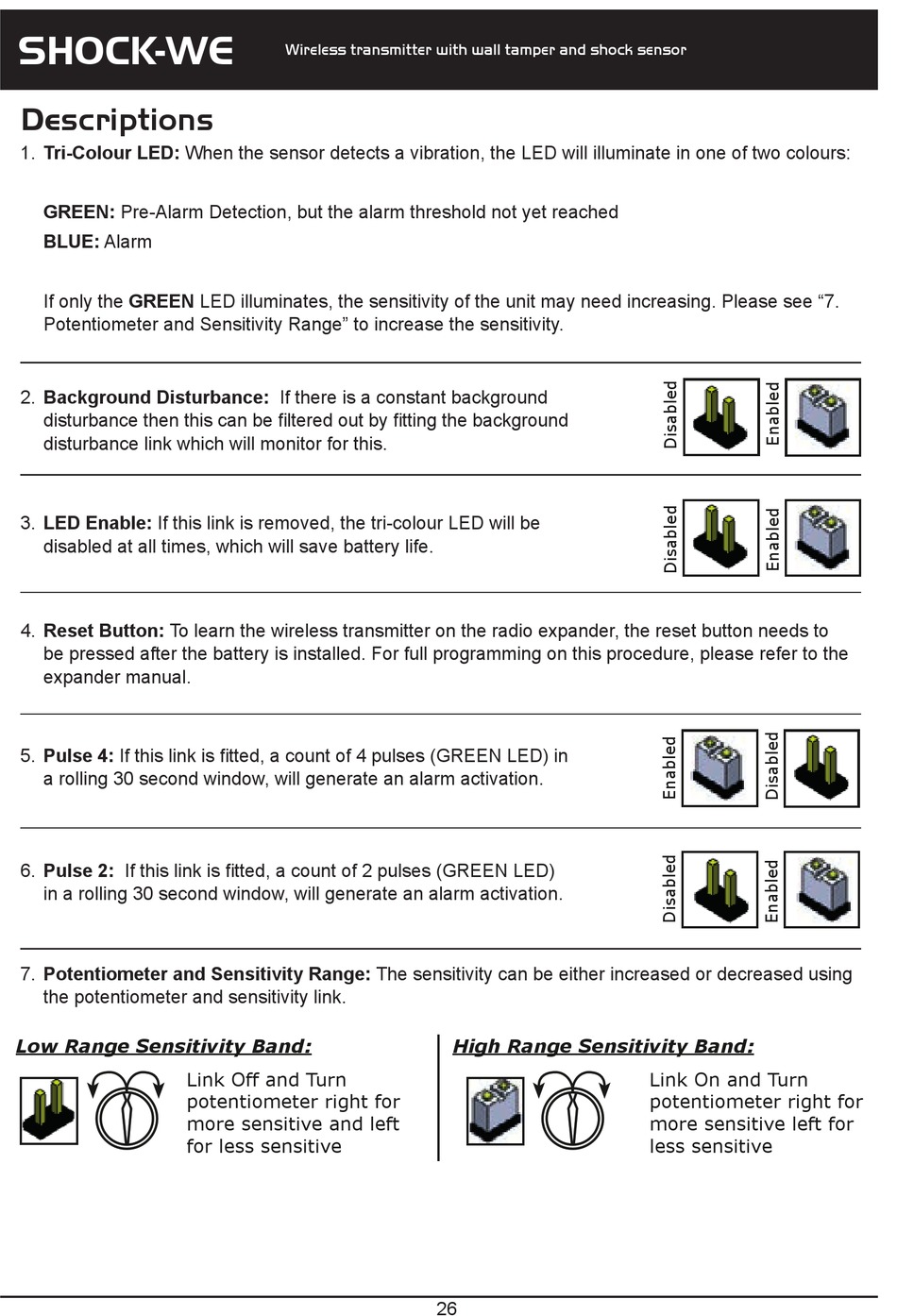

SHOCK-WE
Descriptions
Electrical Specification
1. Tri-Colour LED: When the sensor detects a vibration, the LED will illuminate in one of two colours:
Voltage: >2.5V
Current: 12uA
GREEN: Pre-Alarm Detection, but the alarm threshold not yet reached
BLUE: Alarm
Battery
If only the GREEN LED illuminates, the sensitivity of the unit may need increasing. Please see "7.
Life: Greater than 2 years
Potentiometer and Sensitivity Range" to increase the sensitivity.
CR2 3.0 Volt
LEDs
2. Background Disturbance: If there is a constant background
disturbance then this can be filtered out by fitting the background
disturbance link which will monitor for this.
LEDs
Battery
3. LED Enable: If this link is removed, the tri-colour LED will be
Learn Button
disabled at all times, which will save battery life.
Front Tamper
+
Learn Button
4. Reset Button: To learn the wireless transmitter on the radio expander, the reset button needs to
Front Tamper
be pressed after the battery is installed. For full programming on this procedure, please refer to the
expander manual.
5. Pulse 4: If this link is fitted, a count of 4 pulses (GREEN LED) in
a rolling 30 second window, will generate an alarm activation.
6. Pulse 2: If this link is fitted, a count of 2 pulses (GREEN LED)
in a rolling 30 second window, will generate an alarm activation.
7. Potentiometer and Sensitivity Range: The sensitivity can be either increased or decreased using
the potentiometer and sensitivity link.
Low Range Sensitivity Band:
Sensitivity
Low/High
Band
Pulse
Sensitivity
Count 2
Sensitivity
High range sensitivity band
Low range sensitivity band
Wireless transmitter with wall tamper and shock sensor
Disturbance: Rolling 30s period
Sensitivity
High range sensitivity band
Operating Environment
Low range sensitivity band
-10 to 50°C
Disturbance: Rolling 30s period
Operating Environment
-10 to 50°C
-
LEDs
Learn Button
Front Tamper
Rear Tamper
High Range Sensitivity Band:
High Range Sensitivity Band:
Link Off and Turn
potentiometer right for
more sensitive and left
for less sensitive
Pulse
LED Enable
Count 4
Sensitivity
High range sensitivity band
Low range sensitivity band
Disturbance: Rolling 30s period
Operating Environment
-10 to 50°C
Link On and Turn
potentiometer right for
more sensitive left for
less sensitive
Link On and Turn
potentiometer right for
High Range Sensitivity Band:
more sensitive left for
less sensitive
26
