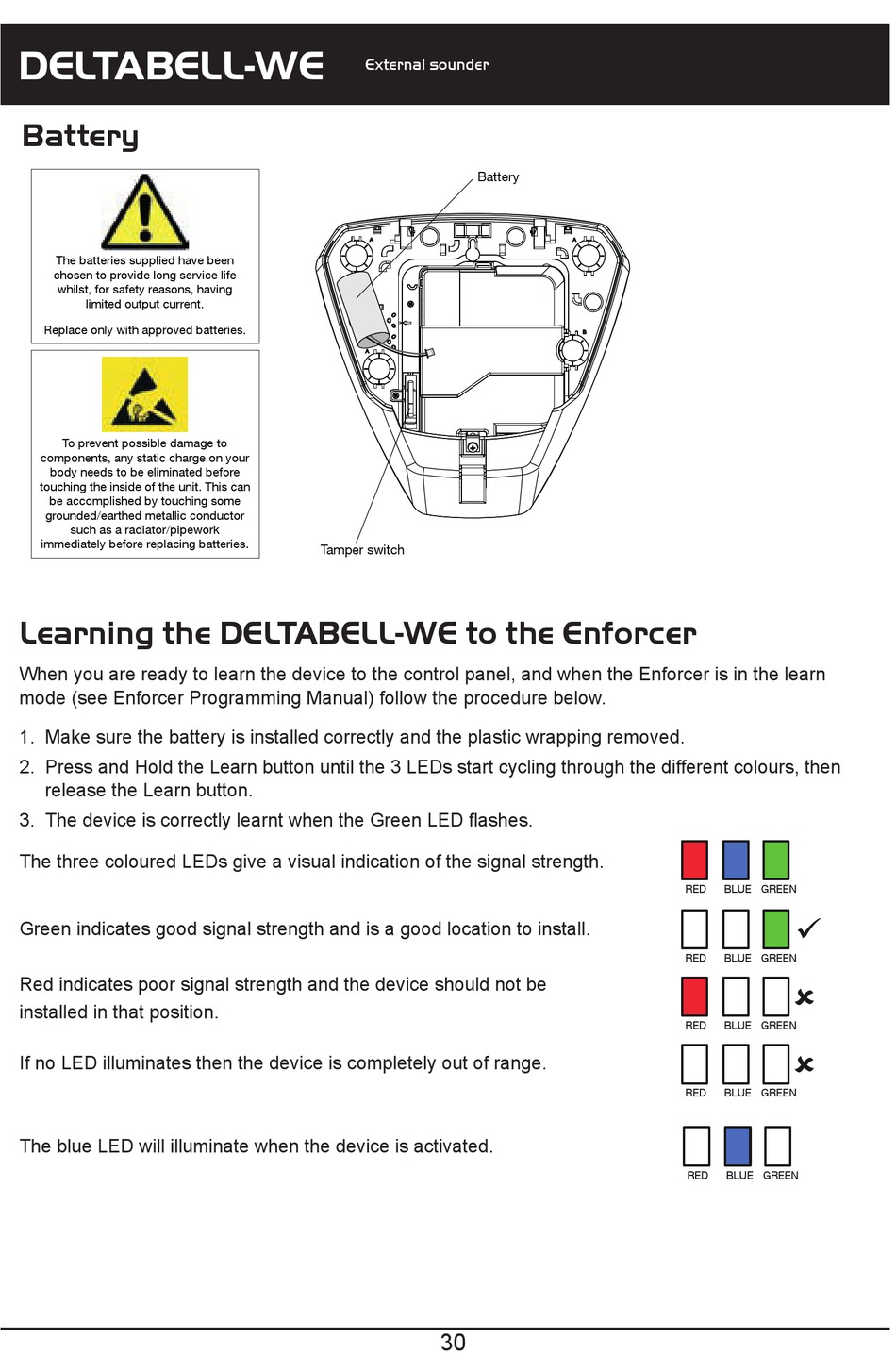

DELTABELL-WE
Battery
The batteries supplied have been
chosen to provide long service life
whilst, for safety reasons, having
limited output current.
Replace only with approved batteries.
WINDOW
To prevent possible damage to
components, any static charge on your
body needs to be eliminated before
touching the inside of the unit. This can
be accomplished by touching some
grounded/earthed metallic conductor
such as a radiator/pipework
immediately before replacing batteries.
Learning the DELTABELL-WE to the Enforcer
Example:
When you are ready to learn the device to the control panel, and when the Enforcer is in the learn
mode (see Enforcer Programming Manual) follow the procedure below.
1. Make sure the battery is installed correctly and the plastic wrapping removed.
2. Press and Hold the Learn button until the 3 LEDs start cycling through the different colours, then
release the Learn button.
3. The device is correctly learnt when the Green LED flashes.
The three coloured LEDs give a visual indication of the signal strength.
Green indicates good signal strength and is a good location to install.
Red indicates poor signal strength and the device should not be
installed in that position.
S1 Enable
T
If no LED illuminates then the device is completely out of range.
CR2 Battery
Learn
The blue LED will illuminate when the device is activated.
-
+
CR2 Battery
External sounder
Door Frame
Tamper switch
Universal Transmitter
Z T
T
C
Z
Test Result
If the battery needs to be replaced, the
correct battery type (CR2) must be
installed
Using Magnetic Contact 1 (S1)
Battery
Door
Zone
Enable/
Disable
TAMPER
ZONE
30
To enable Magnetic Contact 1 you must remove
jumper link from the S1 enable pins:
Reed Switch
S1 S1 Enable
Z T
T
C
Learn
S2 Enable
Z
Magnetic
Contact 1
Tamper
Enable/
Enable/
Disable
Disable
S1 S1 Enable
Z T
T
C
Learn
Z
Learn
Button
RED BLUE GREEN
RED BLUE GREEN
RED BLUE GREEN
RED BLUE GREEN
RED BLUE GREEN
B
Test Result
S
S
S
Status LEDs
D
Test Result
