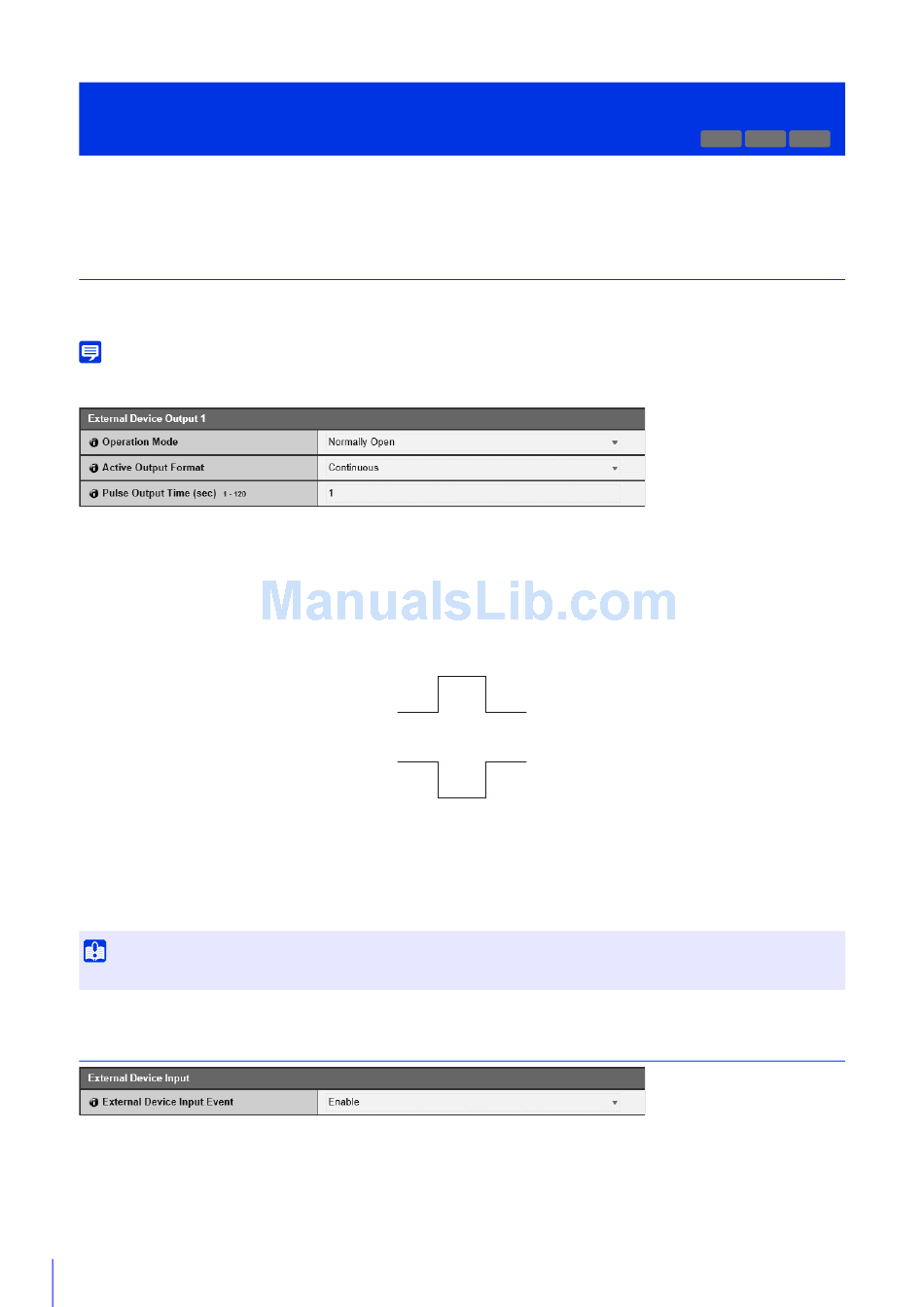

External Device Input Triggered Operation Settings
[Event] > [External Device]
Operation settings for external device output and for external device input triggered events.

External Device Output 1, 2

Set the operation for output to the external device.
The camera has two external device outputs. You can set the output for each of them.
Note
The output for an external device can be switched between active and inactive with [Control for Admin] > [External Device Output]
(P. 167).
[Operation Mode]
Select whether the output terminals are normally open or closed.
When [Normally Open] is set, the output terminals remain in the open state (non-conducting circuit) during normal
operation, and the terminals close upon an active event and open upon an inactive event.
When [Normally Close] is selected, the output terminals remain in the closed state (conducting circuit) during normal
operation, and the terminals open upon an active event and close upon an inactive event.
[Active Output Format]
Select the output format when the external device output is active.
[Pulse Output Time (sec)]
Enter the output duration time (sec.) when [Active Output Format] is set to [Pulse].
Important
When [Active Output Format] is set to [Pulse] and a timer is used (P. 110), a single contact output is controlled when the timer starts.

External Device Input

[External Device Input Event]
Select whether to use the input from an external device, such as a connected sensor, as an event.
104
Normally Open
Active Event Status
Inactive Event Status
Normally Close
Inactive Event Status
Active Event Status
1 (The contact is closed.)
0 (The contact is open.)
1 (The contact is closed.)
0 (The contact is open.)
