Configure Radio Transmit (Tx) Power; Ap3935E Radio 1 Properties: Channel Plan Setting - Extreme Networks ExtremeWireless AP3935i Installation Manual

Figure 2-8
5. Repeat the process for Radio 2.

Configure Radio Transmit (Tx) Power

Based on the configured mode, channel, channel plan, and channel width for the specific antenna,
the professional installer must enter the corresponding Transmit Power (Tx Power) for the desired
Radio using the Extreme Networks Wireless Assistant.
1. Log into the Wireless Assistant.
2. From the top menu, click AP. The Wireless AP screen is displayed.
3. Click the AP button in the left pane, then in the Wireless AP list, click the Wireless AP whose
properties you want to modify. The AP Properties tab displays Wireless AP information.
4. Click the Radio 1 tab.
5. Max Tx Power is automatically determined based on regulatory domain/country, antenna
selected, line attenuation configured, channel and certification testing.
16 Configuring AP3935e Channel Settings

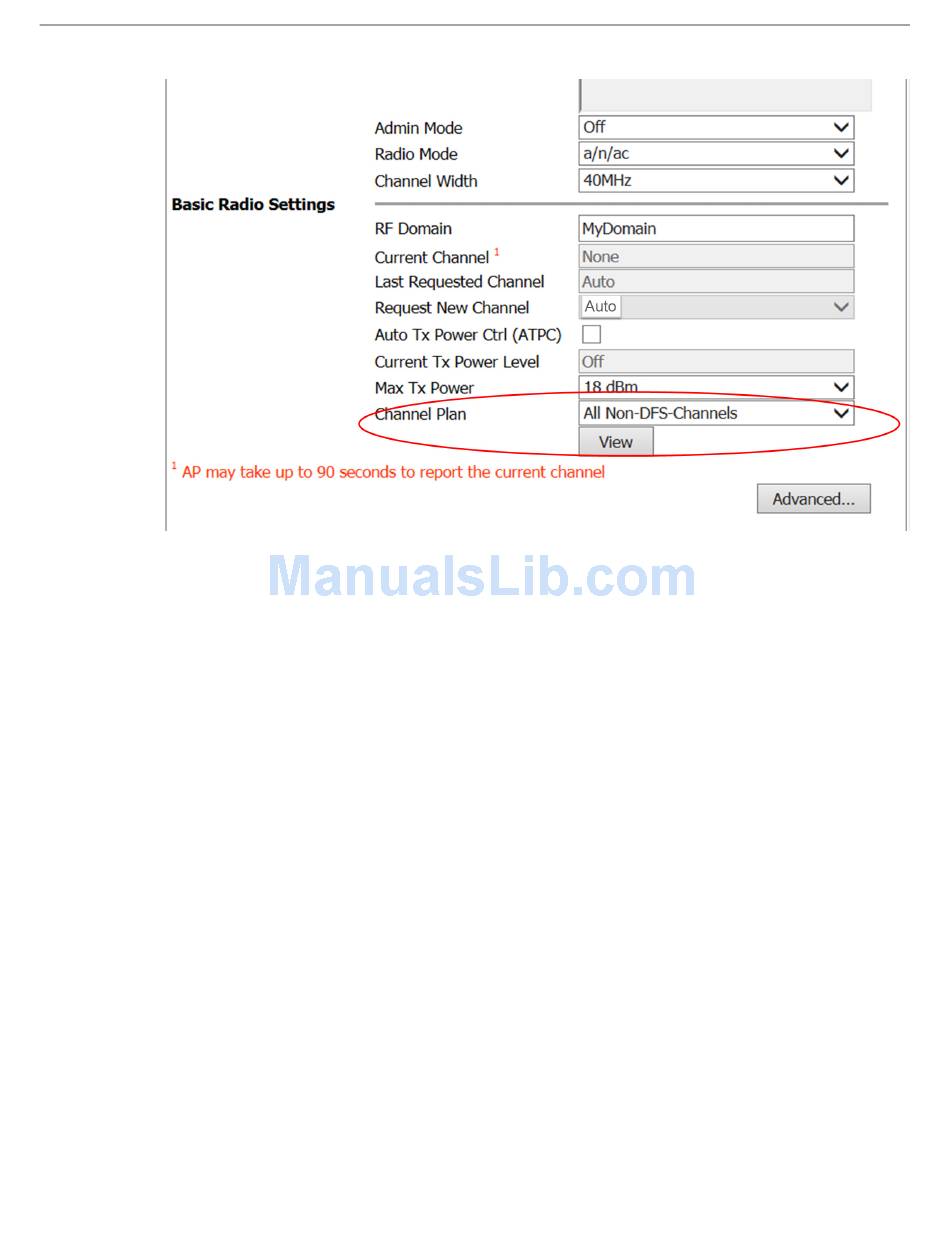

AP3935e Radio 1 Properties: Channel Plan setting
