Installation
Figure 2-13
5.
Repeat the process for Radio 2.
Configure Radio Transmit (Tx) Power
Based on the configured mode, channel, channel plan, and channel width for the specific antenna,
the professional installer must enter the corresponding Transmit Power (Tx Power) for the desired
Radio using the ExtremeWireless™ Assistant.
1.
Log into the Wireless Assistant.
2.
From the top menu, click AP. The Wireless AP screen is displayed.
3.
Select AP in the left pane, then in the Wireless AP list, click the Wireless AP whose properties
you want to modify. The AP Properties tab displays Wireless AP information.
4.
Click the Radio 1 tab.
5.
Max Tx Power is automatically determined based on regulatory domain/country, antenna
selected, line attenuation configured, channel and certification testing. Max Tx Power refers
to:
•
•
•
24

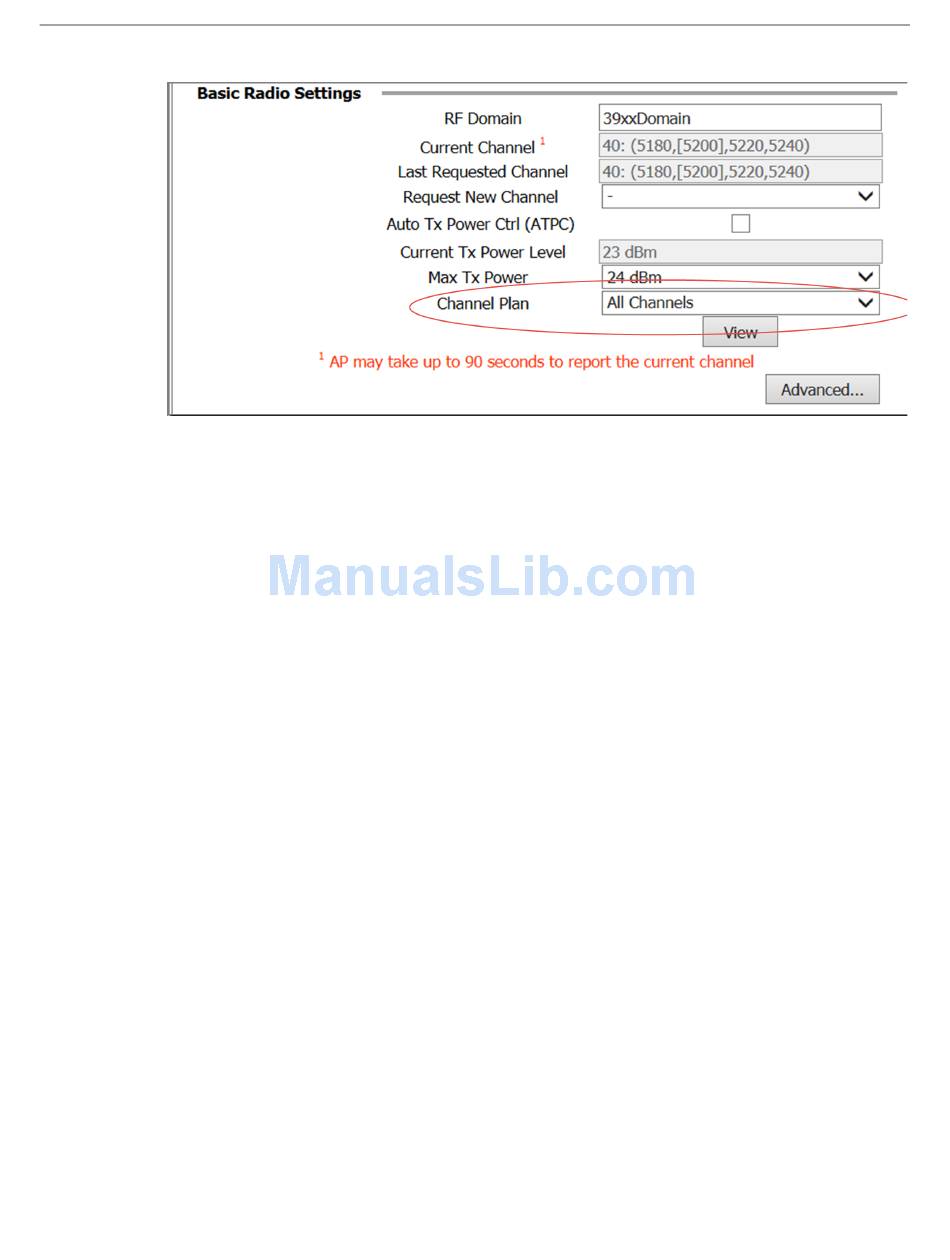

AP3965e Radio 1 Properties: Channel Plan setting
Current channel if the radio is up and Request New Channel is not set
Request Channel if it is set to a supported channel
If Request Channel is set to Auto, then Max Tx Power is limited to the lowest power
channel configured in the Channel plan.
Configuring AP3965 Channel Settings
