Extreme Networks AP305C Hardware User's Manual

AP305C and AP305CX
Hardware User Guide
Read about and view specifications and compliance information for the AP305C and AP305CX in this topic. Install the
AP305C and AP305CX using this topic.

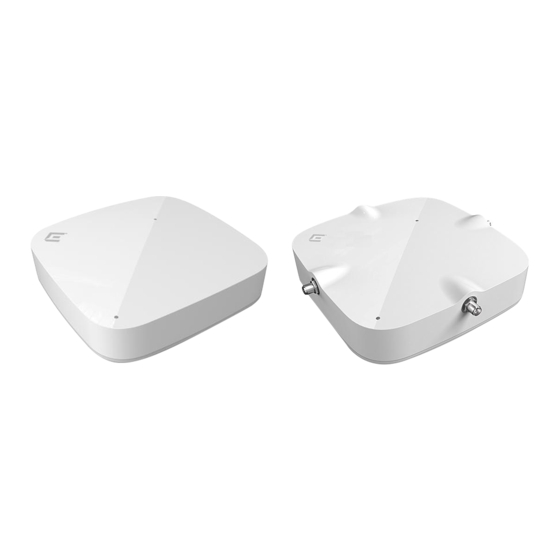

The AP305C and AP305CX are high-performance 802.11ax dual-5G. dual band access points.
Both are designed for indoor high-density environments that require HD video streaming and large file transfers. The AP305CX
has external antennas (sold separately), and an extended temperature range for industrial environments. These devices
support IEEE 802.11ax Orthogonal Frequency-Division Multiple Access (OFDMA) multi-user access.
For regulatory and compliance information, see
Important! Change the Country Code

Safety Guidelines

Safety Guidelines

Install the AP

You can mount the AP305C and AP305CX on a flat surface or wall, or on the rails of a standard dropped ceiling grid. If you
need to install your device in a non-standard ceiling, such as an Armstrong or Silhouette ceiling, you can order a separate
bracket kit. The bracket kits available for these devices are listed below.
The following sections describe how to install your AP305C and AP305CX devices and connect them to the network.

Shipping Carton Contents

Install the AP on a Ceiling Track
The AP305C and AP305CX have built-in hardware that lets you easily install them on the T-rail of a standard (15"/16") dropped
ceiling grid. For standard ceiling mounts, place the built-in brackets onto the ceiling track and rotate the device until it clicks
into place. The illustration shows an AP305C but the procedure is the same for both models.
You can also install these devices on non-standard ceiling tracks or directly to a wall using accessory brackets. See
"Accessory Brackets for Non-standard Ceiling and Wall Installation"
"Regulatory Compliance Statements".
