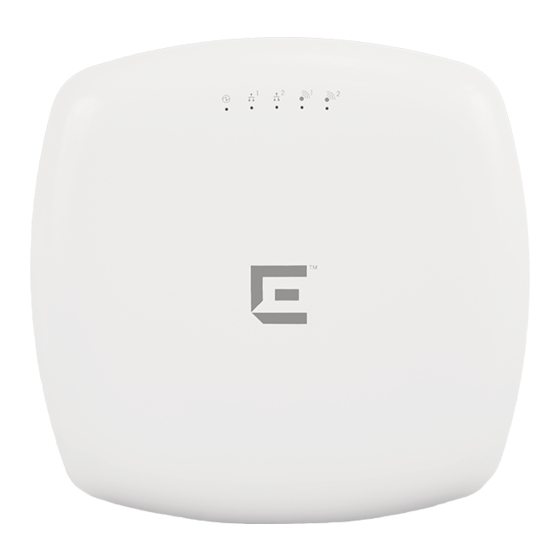

Extreme Networks ExtremeWireless AP3935i Installation Manual
  1. Manuals
  2. Brands
  3. Extreme Networks Manuals
  4. Wireless Access Point
  5. ExtremeWireless AP3935i
  6. Installation manual

Extreme Networks ExtremeWireless AP3935i Installation Manual

Hide thumbs Also See for ExtremeWireless AP3935i:
Table of Contents

Advertisement

Quick Links

™
ExtremeWireless
AP3935i &
AP3935e Installation Guide
9034915-02
Published July 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExtremeWireless AP3935i and is the answer not in the manual?

Questions and answers

Related Manuals for Extreme Networks ExtremeWireless AP3935i

Summary of Contents for Extreme Networks ExtremeWireless AP3935i

  • Page 1 ™ ExtremeWireless AP3935i & AP3935e Installation Guide 9034915-02 Published July 2016...
  • Page 2 Copyright © 2016 Extreme Networks All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.

  • Page 3: Table Of Contents

    Unpacking the AP3935..............................14 Accessories.....................................14 Access Point Installation Procedures......................... 15 Configuring AP3935e Channel Settings........................19 Appendix A: Specifications....................26 External Power Supplies..............................26 Internal Antenna APs................................ 27 External Antennas................................33 Appendix B: Regulatory Information..................35 ExtremeWireless AP3935i and AP3935e........................35 ExtremeWireless™ AP3935i & AP3935e Installation Guide...

  • Page 4: Preface

    Preface Text Conventions The following tables list text conventions that are used throughout this guide. Table 1: Notice Icons Icon Notice Type Alerts you to... General Notice Helpful tips and notices for using the product. Note Important features or instructions. Caution Risk of personal injury, system damage, or loss of data.

  • Page 5: Providing Feedback To Us

    Ideas for improvements to our documentation so you can find the information you need faster. • Broken links or usability issues. If you would like to provide feedback to the Extreme Networks Information Development team about this document, please contact us using our short online feedback form.
  • Page 6 Preface • ExtremeWireless AP3935i & AP3935e Installation Guide • ExtremeWireless AP3965i & AP3965e Installation Guide • ExtremeWireless Appliance C5210 Quick Reference • ExtremeWireless Appliance C5110 Quick Reference • ExtremeWireless Appliance C4110 Quick Reference • ExtremeWireless Appliance C25 Quick Reference •...

  • Page 7: Chapter 1: About This Guide

    This preface provides an overview of this guide, defines the conventions used in this document, and instructs how to obtain technical support from Extreme Networks . ExtremeWireless™ AP3935i & AP3935e Installation Guide...

  • Page 8: Chapter 2: Introduction

    Introduction About the AP3935i and AP3935e AP3935 Overview Architectural Features This installation guide provides an overview and installation instructions for the ExtremeWireless Access Points AP3935i and AP3935e. About the AP3935i and AP3935e The AP3935 is designed to extend your Wireless LAN around indoor locations. The AP3935 supports the 802.11ac and 802.11n wireless standards, with full backward compatibility with legacy 802.11a, and 802.11b/g devices.
  • Page 9 Introduction Figure 1: ExtremeWireless AP3935i Top View Figure 2: ExtremeWireless AP3935e Top View on page 10 show the top view of each model. Figure 3: AP3935 Bottom View on page 11 shows the location of the LAN ports, console port, external power supply connector, and reset switch.The bottom panel is the same for both models, but there are...
  • Page 10 Introduction Figure 2: ExtremeWireless AP3935e Top View ExtremeWireless™ AP3935i & AP3935e Installation Guide...
  • Page 11 Introduction Figure 3: AP3935 Bottom View Reset Button LAN Ethernet Ports 1 and 2 Console Port External Power DC 12V AP3935 LED Indicators Both models of the AP3935 have the LED indicators, shown in Figure 4: AP3935 LEDs on page 11 below.

  • Page 12: Architectural Features

    Introduction Table 3: AP3935 LED Indications Status Description 1 (AP status) On Green Indicates the AP3935 is working normally. Flashing Green Indicates: • running a self test • loading software program On Amber Indicates a CPU/system failure. 2 (Ethernet link state) LAN 1 On Green Indicates a valid 10Mbps or 100Mbps Ethernet link.
  • Page 13 Introduction Reset Switch The AP3935 provides a Reset Switch to reset or restore factory default configurations. Use a pointed object to press the switch button through the hole. (See Figure 3: AP3935 Bottom View on page 11.) If you hold down the button for less than five seconds, the AP performs a software interrupt, causing it to drop all connections and reset.

  • Page 14: Chapter 3: Installation

    Refer to Getting Help on page 5 for details. Accessories The following accessories are available for the ExtremeWireless AP3935. For ordering information, contact your Extreme Networks sales representative. • 12V DC power supply (see External Power Supplies on page 26) •...

  • Page 15: Access Point Installation Procedures

    Installation Access Point Installation Procedures Warning Electrical Hazard: Only qualified personnel should install or service this unit. Riesgo Electrico: Nada mas personal capacitado debe de instalar o darle servicio a esta unida. Elektrischer Gefahrenhinweis: Installationen oder Servicearbeiten sollten nur durch ausgebildetes und qualifiziertes Personal vorgenommen werden.
  • Page 16 Installation 3 Slightly lift the movable T-bar locking tab to increase the space between the stationary and the movable T-bar sides of the bracket. Then hook the stationary end of the T-bar bracket onto the T- bar, as shown in Figure 7: Attaching the AP3935i on a Drop Ceiling T-bar Rail on page 16.
  • Page 17 Installation Determine the spot on the wall to mount the AP. Pick a spot near the ceiling, but in reach of the Ethernet cable and if you are using external power, near a wall power outlet. 2 To mount the AP directly on the wall with two screws, use the provided template and mark the two drill holes on the wall.
  • Page 18 Installation 7 When mounting the AP on a wall or flat ceiling, a Kensington lock provides extra stability. Note The mounting bracket (30513, WS-MBI-WALL03) is optional when mounting the AP on a wall. If mounting the AP on a flat ceiling, we recommend using the mounting bracket (30513, WS-MBI-WALL03) for added security.

  • Page 19: Configuring Ap3935E Channel Settings

    Installation Power is provided through the RJ45 Ethernet port (LAN port) on the top of the AP. This is the preferred method of powering the AP on ceiling and high wall installations. • Power by external power supply Where a PoE-capable Ethernet connection is unavailable or impractical, an external 12 VDC power supply may be ordered separately to power the AP from a standard AC wall outlet.
  • Page 20 Installation • Determining the Antenna Model on page 20 • Configuring Radio RF Port on page 20 • Configuring Radio Channel on page 23 • Configuring Radio Transmit (Tx) Power on page 24 Determining the Antenna Model The professional installer needs to determine antenna models and the number of antenna ports for that model.
  • Page 21 Installation 3 Select APs in the left pane, then in the Wireless AP list, click the Wireless AP whose properties you want to modify. The AP Properties tab displays Wireless AP information. Figure 11: AP Properties for the AP3935e ExtremeWireless™ AP3935i & AP3935e Installation Guide...
  • Page 22 Installation 4 When configuring the AP3935e, click Professional Install. The Professional Install dialog displays to configure the external antennas. Figure 12: Professional Install Dialog for the AP3935e 5 Modify the Radio Antenna Type as follows: • If attaching quad port antennas, configure all four RF ports with the same antenna type. •...
  • Page 23 Installation Configuring Radio Channel Click APs in the left pane, then in the Wireless AP list, click the Wireless AP whose properties you want to modify. The AP Properties tab displays Wireless AP information. 2 Click the Radio 1 tab. 3 Configure the desired Radio Mode, and Channel Width.
  • Page 24 Based on the configured mode, channel, channel plan, and channel width for the specific antenna, the professional installer must enter the corresponding Transmit Power (Tx Power) for the desired Radio using the Extreme Networks Wireless Assistant. Log into the Wireless Assistant.
  • Page 25 Installation 3 Click the AP button in the left pane, then in the Wireless AP list, click the Wireless AP whose properties you want to modify. The AP Properties tab displays Wireless AP information. 4 Click the Radio 1 tab. 5 Max Tx Power is automatically determined based on regulatory domain/country, antenna selected, line attenuation configured, channel and certification testing.

  • Page 26: Appendix A: Specifications

    Specifications External Power Supplies Internal Antenna APs External Antennas This appendix lists the specifications for the AP3935i and AP3935e access points and an external 12V DC power supply. Table 5: Specifications for the AP3935i and AP3935e Item Specification 31012 WS-AP3935i-FCC 31013 WS-AP3935i-ROW 31014...

  • Page 27: Internal Antenna Aps

    Specifications devices on ceilings or high up on walls. You can also power these APs with optional, certified, external power supplies. Table 6: Universal Specifications for an External Power Supply Item Specification Enclosure material Plastic housing AC Input 100-240V DC output Output current (max) Output power (max) Power supply Part Number 30512 (WS-PSI12V-MR2), which includes six regional adapters, is...
  • Page 28 Specifications Figure 16: Horizontal Radiation Pattern 2.4 GHz (XZ Plane) ExtremeWireless™ AP3935i & AP3935e Installation Guide...
  • Page 29 Specifications Figure 17: Vertical Radiation Pattern 2.4 GHz (XY Plane) ExtremeWireless™ AP3935i & AP3935e Installation Guide...
  • Page 30 Specifications Figure 18: Vertical Radiation Pattern 2.4 GHz (YZ Plane) ExtremeWireless™ AP3935i & AP3935e Installation Guide...
  • Page 31 Specifications Figure 19: Horizontal Radiation Pattern 5 GHz (XZ Plane) ExtremeWireless™ AP3935i & AP3935e Installation Guide...
  • Page 32 Specifications Figure 20: Vertical Radiation Pattern 5 GHz (XY Plane) ExtremeWireless™ AP3935i & AP3935e Installation Guide...

  • Page 33: External Antennas

    Specifications Figure 21: Vertical Radiation Pattern 5 GHz (YZ Plane) External Antennas The following table lists the certified external antennas for AP3935e. For more detailed specifications and radiation pattern diagrams, see the ExtremeWireless External Antenna Site Preparation and Installation Guide. Note Only certified antennas must be used with the AP3935e Access Point.
  • Page 34 Specifications Table 8: Certified External Antennas for AP3935e (continued) Part No. (Short Frequency Band Antenna Type 2.4G Gain 5G Gain Description) 30706 (WS- Sector AI-5Q05025) 30707 (WS-AI- 2.4G/5G Sector 10.5 DE10055) 30709 (WS- 2.4G Dipole 4.66 ANT-2DIP-4) 30710 (WS- Dipole 4.67 ANT-5DIP-4) WS-AI-DQ04360...

  • Page 35: Appendix B: Regulatory Information

    Warning Warnings identify essential information. Ignoring a warning can lead to problems with the application. This appendix provides regulatory information for the ExtremeWireless AP3935i and AP3935e access points. Note Throughout this appendix, the term ExtremeWireless AP3935 refers to the AP models AP3935i, and AP3935e.
  • Page 36 Regulatory Information by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the transmitting antenna. • Increase the separation between the equipment or devices. •...
  • Page 37 Regulatory Information The radiated output power of the ExtremeWireless AP3935 is below the FCC radio frequency exposure limits as specified in “Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields” (OET Bulletin 65, Supplement C). This equipment should be installed and operated with a minimum distance of 25 cm between the radiator and your body or other colocated operating antennas.
  • Page 38 Regulatory Information 5470-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. • Pour le produit disponible sur le marché canadien, seuls les canaux 1 à 11 peuvent être utilisés. Il est impossible de sélectionner d’autres canaux dans la bande de 2.4 GHz. •...
  • Page 39 Declaration of Conformity in Languages of the European Community Table 9: Declaration of Conformity in Languages of the European Community English Hereby, Extreme Networks, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Finnish Valmistaja Extreme Networks vakuuttaa täten että...
  • Page 40 Table 9: Declaration of Conformity in Languages of the European Community (continued) Spanish Por medio de la presente Extreme Networks declara que el Radio LAN device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 41 Regulatory Information • EN 50385 (EMF) • ETSI/EN 301 489-1 & -17 Radio transceiver • R&TTE Directive 1999/5/EC • ETSI/EN 300 328 (2.4 GHz) • ETSI/EN 301 893 (5 GHz) Other • IEEE 802.11ac (5 GHz) • IEEE 802.11b/g (2.4 GHz) •...
  • Page 42 Regulatory Information Caution Please follow the instructions in this user guide to configure the ExtremeWireless AP3935. Each Wireless AP is configured with a default group of settings. There is the ability to change these settings. The user or installer is responsible to ensure that each ExtremeWireless AP3935 is configured properly.
  • Page 43 Regulatory Information Table 10: European Spectrum Usage Rules (continued) Country 5.15-5.25 (GHz) 5.25-5.35 (GHz) 5.47-5.725 (GHz) 2.4-2.4835 (GHz) Channels: Channels: Channels: Channels: 1 to 13 36,40,44,48 52,56,60,64 100,104,108,112,116, (Except Where 132,136,140 Noted) Hungary Indoor only Indoor only Indoor or outdoor Indoor or outdoor Iceland Indoor only...
  • Page 44 Regulatory Information Other Country Specific Compliance Standards, Approvals and Declarations • IEC 60950-1 CB Scheme + National Deviations • AS/NZS 60950.1 (Safety) • AS/NZS 3548 (Emissions via EU standards – ACMA) • AS/NZS 4288 (Radio via EU standards) • EN 300 328 (2.4 GHz) •...
