2/11/2020
AP305C and AP305CX
Hardware User Guide
Read about and view specifications and compliance information for the AP305C and AP305CX in this topic. Install the AP305C and
AP305CX using this topic.

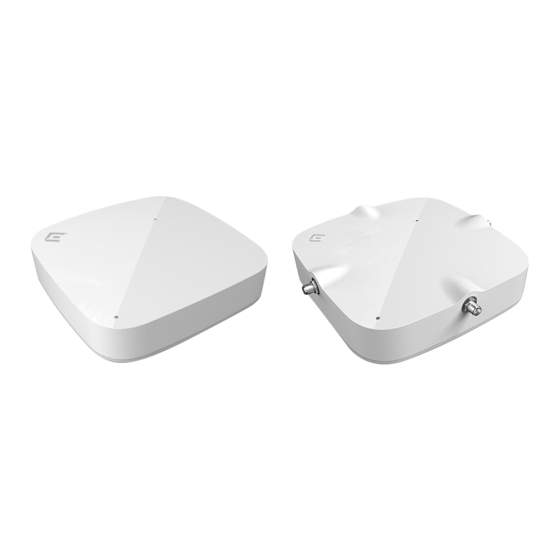

The AP305C and AP305CX are high-performance 802.11ax dual-5G. dual band access points.
Both are designed for indoor high-density environments that require HD video streaming and large file transfers. The AP305CX has
external antennas (sold separately), and an extended temperature range for industrial environments. These devices support IEEE
802.11ax Orthogonal Frequency-Division Multiple Access (OFDMA) multi-user access.
For regulatory and compliance information, see
Important! Change the Country Code
Safety Guidelines
Safety Guidelines
The safety information in this section applies to AP305C and AP305CX devices.
The following safety icons are used in these guidelines to identify the type of precaution:
docs.aerohive.com/330000/docs/help/english/ng/Content/hardware/ap/ap305c-ap305cx.htm?Highlight=ap305c
AP305C and AP305CX Hardware User Guide
"Regulatory Compliance
Statements".
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP305C and is the answer not in the manual?

Questions and answers

Related Manuals for Extreme Networks AP305C

Summary of Contents for Extreme Networks AP305C

  • Page 1 AP305C and AP305CX Hardware User Guide Read about and view specifications and compliance information for the AP305C and AP305CX in this topic. Install the AP305C and AP305CX using this topic. The AP305C and AP305CX are high-performance 802.11ax dual-5G. dual band access points.

  • Page 2: Install The Ap

    Install the AP You can mount the AP305C and AP305CX on a flat surface or wall, or on the rails of a standard dropped ceiling grid. If you need to install your device in a non-standard ceiling, such as an Armstrong or Silhouette ceiling, you can order a separate bracket kit. The bracket kits available for these devices are listed below.
  • Page 3 Install the AP on a Ceiling Track The AP305C and AP305CX have built-in hardware that lets you easily install them on the T-rail of a standard (15"/16") dropped ceiling grid. For standard ceiling mounts, place the built-in brackets onto the ceiling track and rotate the device until it clicks into place.
  • Page 4 2/11/2020 AP305C and AP305CX Hardware User Guide Marketing SKU # Description Mounting bracket for Armstrong Interlude ceilings AH-ACC-BKT-AX-IL Mounting bracket for Armstrong Silhouette 1/8" and Silhouette 1/4" ceilings AH-ACC-BKT-AX-SL Replacement Prelude Bracket, T-Bar AH-ACC-BKT-AX-TB Mounting bracket for direct-to-wall installations AH-ACC-BKT-AX-WL  ...

  • Page 5: Hardware Components

    The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. The AP305C and AP305CX have a rectangular status light on the top right corner of the chassis. At setup, this light cycles through the following sequence: Slow-blinking White: The device is attempting to establish a connection or has established a CAPWAP connection with...

  • Page 6: Security Slot

    The articulated antennas hinge and swivel so that you can easily do this, whether the AP is mounted horizontally or vertically. Hardware Specifications The following sections list radio, device, power, and environmental specifications for the AP305C and AP305CX. Radio Specifications Bluetooth BLE Beacon...
  • Page 7 2/11/2020 AP305C and AP305CX Hardware User Guide 2x2 MIMO radio VHT20/VHT40/VHT80 support (VT40 and VT80 for 5 GHz only) 802.11ax 5150-5350, 5470-5850 MHz operating frequency 2.4 - 2.48 GHz operation frequency 802.11ax modulation (1024-QAM) Rates: MCS0 - MCS11, NSS = 1-2...
  • Page 8 2/11/2020 AP305C and AP305CX Hardware User Guide Channel Data Rate Power (dBm) 1,2,5.5,11 54 Mbps   48 Mbps   36 Mbps   6 Mbps HE20 MCS 0,1,2   MCS 3   MCS 4, 5   MCS 6,7   MCS 8,9  ...
  • Page 9 2/11/2020 AP305C and AP305CX Hardware User Guide Mode Data Rate Power (dBm) 54 Mbps   48 Mbps   36 Mbps   6 Mbps HE20 MCS 0, 1, 2   MCS 3, 4   MCS 5, 6   MCS 7, 8  ...
  • Page 10 2/11/2020 AP305C and AP305CX Hardware User Guide Mode Data Rate Power (dBm)   MCS 9   MCS 10   MCS 11 11n HE40 MCS 0   MCS 1   MCS 2   MCS 3   MCS 4   MCS 5  ...
  • Page 11 2/11/2020 AP305C and AP305CX Hardware User Guide Mode Data Rate Power (dBm) 6 Mbps   36 Mbps   48 Mbps   54 Mbps 11n HE20 MCS 0,1, 2, 3, 4, 8, 9, 10, 11   MCS 13, 21   MCS 14, 22  ...
  • Page 12 MCS 11 Device Specifications Chassis dimensions: AP305C: 5.2" x 5.2" x 1.5" (133 mm x 133 mm x 37 mm) AP305CX: 5.8" x 5.8" x 1.5" (147 mm x 147 mm x 39 mm) Weight: AP305C: .87 lbs (39 kg) AP305CX: .89 lbs (40 kg)

  • Page 13: Antenna Plots

    The regulatory compliance statements in this section apply to Extreme Networks AP305C and AP305CX devices. Japan Indoor Use For Japan, the AP305C and AP305CX are restricted for indoor use in the 5150-5350 MHz band only. Japan Equipment VCCI-B Statement Compliance Statement - Europe...
  • Page 14 декларира, че този тип радиосъоръжение [AP305C] AP305CXе в съответствие с Директива 2014/53/ЕU. Croatian [hrvatski]: [Extreme Networks] ovime izjavljuje da je radijska oprema tipa [AP305C] AP305CX u skladu s Direktivom 2014/53/EU.  Czech [Česky]: [Extreme Networks] Tímto [jméno výrobce] prohlašuje, že typ rádiového zařízení [AP305C] AP305CX je v souladu se směrnicí...

  • Page 15: Taiwan Mpe Warning

    2/11/2020 AP305C and AP305CX Hardware User Guide Industry Canada Statement: Taiwan Compliance Information Extreme NetworksAP305C AP305CX 第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特 性及功能。 第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立 停 用， 改善至無干擾時方得 即 繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之 干擾。   在 5.25-5.35 赫 頻帶內操作之無線資訊傳輸設備，限於室內使用。 秭 無線資訊傳設備的製造廠商應確保頻率穩定性，如依製造廠商使用手冊上所述正常操作，發射的信號應維持於操作頻帶中。 Taiwan MPE Warning 電磁波曝露量MPE標準 ( MPE) 1mW/cm2，送測產品實...
  • Page 16 2/11/2020 AP305C and AP305CX Hardware User Guide   Copyright © 2020 Extreme Networks, Inc. 6480 Via Del Oro, San Jose CA, 95119 USA docs.aerohive.com/330000/docs/help/english/ng/Content/hardware/ap/ap305c-ap305cx.htm?Highlight=ap305c 16/16...
