Mounting The Ap3935 To A Wall; Attaching The Ap3935I On A Drop Ceiling T-Bar Rail - Extreme Networks ExtremeWireless AP3935i Installation Manual

2. Remove the ceiling panels around the drop ceiling T‐bar rail and verify that the Ethernet cable
can reach the AP at the mounting point.
3. Slightly lift the movable T‐bar locking tab to increase the space between the stationary and the

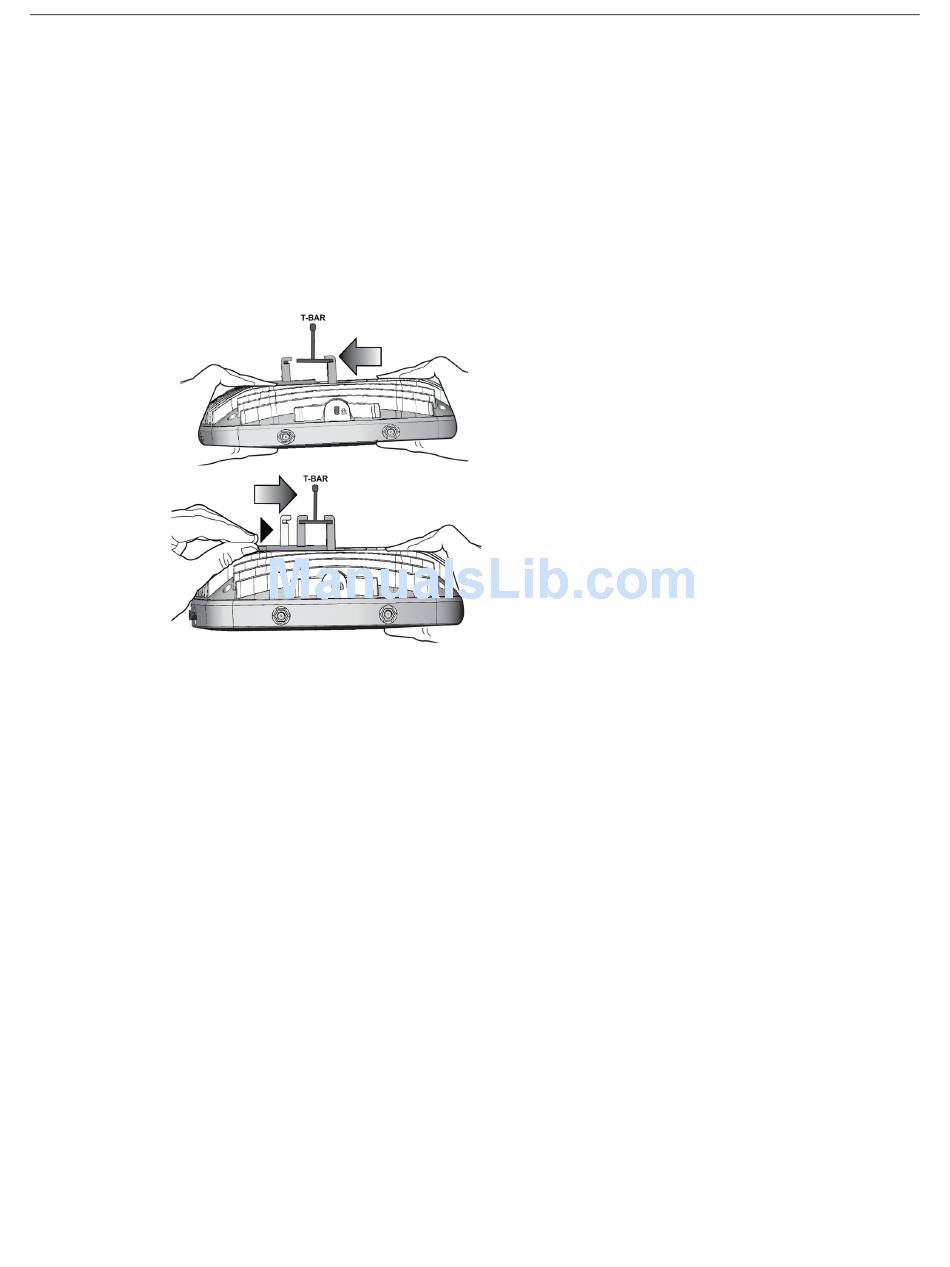

movable T‐bar sides of the bracket. Then hook the stationary end of the T‐bar bracket onto the
T‐bar, as shown in Figure
4. While holding the AP with one hand, reach the other hand over the T‐bar and grasp both the
stationary and movable sides of the bracket. Push the bracket parts together so they both
grasp the T‐bar and the locking tab clicks into place.
5. While still holding the AP, rock it back and forth to ensure that it is securely mounted.
Figure 2-2
6. Make a hole through the ceiling panel closest to the power slot on the AP. Run the Ethernet
cable through the hole and into an RJ45 LAN port in the recessed connector bay.
7. If necessary, cut the tiles for the cables, attach the cables to the AP, and replace the tiles.
8. Replace the displaced ceiling panels.

Mounting the AP3935 to a Wall

Screws for attaching the AP to a wall are supplied with the product. Use the following procedure
to mount the AP3935 to a flat wall:
1. Determine the spot on the wall to mount the AP. Pick a spot near the ceiling, but in reach of the
Ethernet cable and if you are using external power, near a wall power outlet.
2. To mount the AP directly on the wall with two screws, use the provided template and mark
the two drill holes on the wall. In drywall, the drill holes should be 6MM to 0.250ʺ in diameter.
3. Drill two holes in the wall to match the center of the two keyhole slots in the back of the AP
bracket.
4. Screw the anchors into the holes until they are flush with the wall.
5. Screw the provided mounting screws into the anchors with the head protruding about 5/32"
from the anchor to the top of the screw.
2‐2.

Attaching the AP3935i on a drop ceiling T-bar rail
