Mounting The Ap Using The Optional Mounting Bracket; Mounting The Ap3935 To A Flat Wall; Mounting Sequence With Mounting Bracket (30513, Ws-Mbi-Wall03) - Extreme Networks ExtremeWireless AP3935i Installation Manual

Figure 2-3
6. Place the back of the AP against the wall with the protruding mounting screw heads fitting
through the keyhole slots on the back of the AP. Slide the AP down until the AP rests on the
mounting screw heads.
7. When mounting the AP on a wall or flat ceiling, a Kensington lock provides extra stability.

Mounting the AP using the Optional Mounting Bracket

When mounting the AP to a flat ceiling (or a wall), use the mounting bracket (30513,
WS‐MBI‐WALL03) and two metal screws. Figure
bracket method:
1. The wall bracket provides four attachment holes. Using the bracket as a template, place the
bracket and mark the drill holes.
2. Hold the AP/bracket assembly so the drilled holes are in the center of the bracket holes.
3. Insert and thread the screws so they support the bracket.
Figure 2-4
4. Align the AP on the posts and slide down.
10 Access Point Installation Procedures

Mounting the AP3935 to a Flat Wall.

NOTE
The mounting bracket (30513, WS-MBI-WALL03) is optional when mounting
the AP on a wall. If mounting the AP on a flat ceiling, we recommend using the
mounting bracket (30513, WS-MBI-WALL03) for added security.

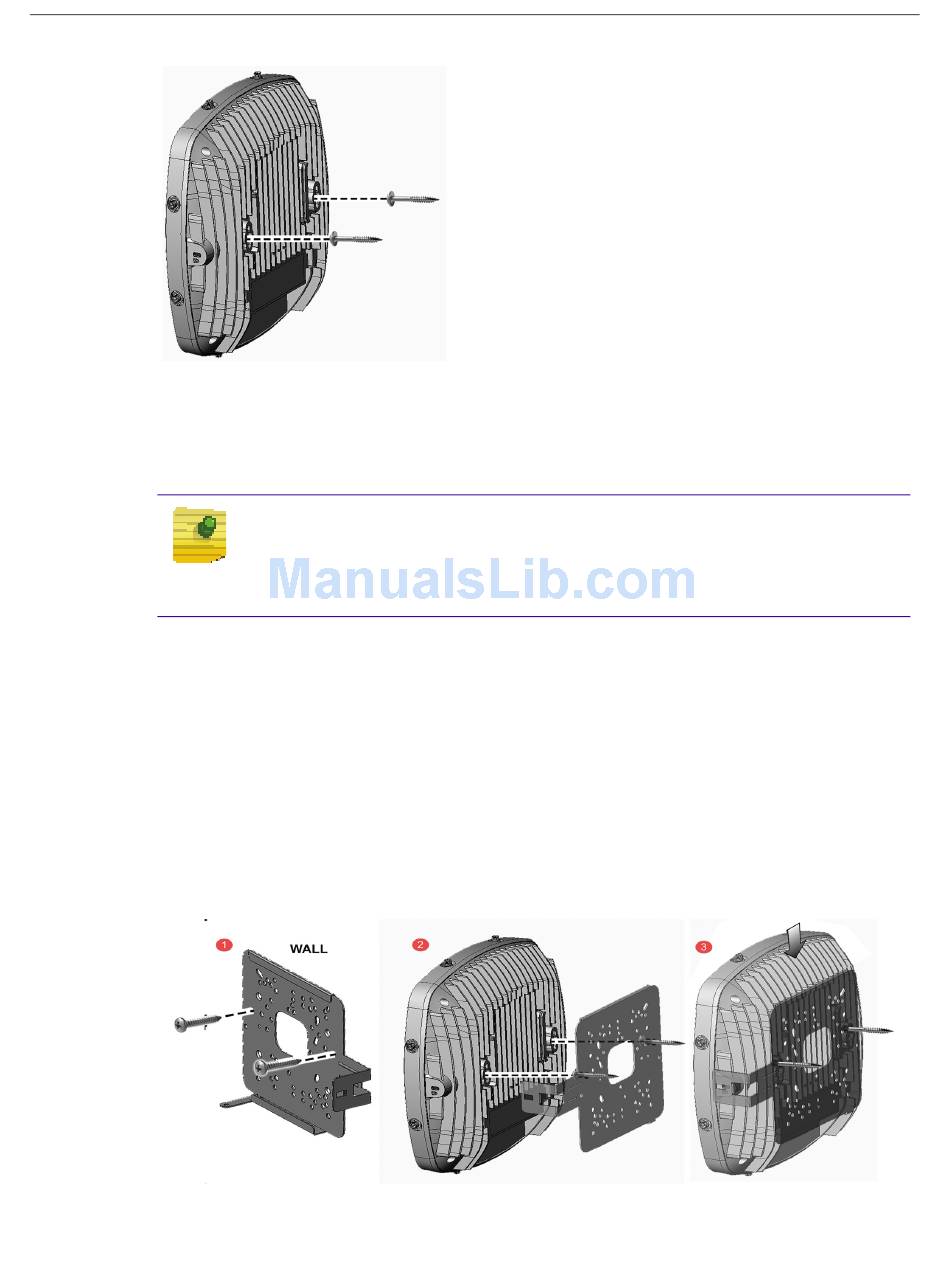

Mounting sequence with mounting bracket (30513, WS-MBI-WALL03)

2‐4 shows an exploded view of the mounting
