Access Point Installation Procedures

These procedures describe how to attach the AP3935 to a drop ceiling (flat or protruded), and how
to mount the AP to a wall.
For information about...

Mounting the AP3935 to a Drop Ceiling

Mounting the AP3935 to a Wall
LAN/Console Connections
The AP3935 has 2 LAN ports and a Console port. Power is provided
through two Ethernet ports (LAN ports). This is the preferred method of
powering the AP on ceiling and wall installations.
Connecting an External DC Power Supply to the AP3935
Mounting the AP3935 to a Drop Ceiling
To mount the AP to a drop ceiling, use the mounting bracket that is provided with the AP.

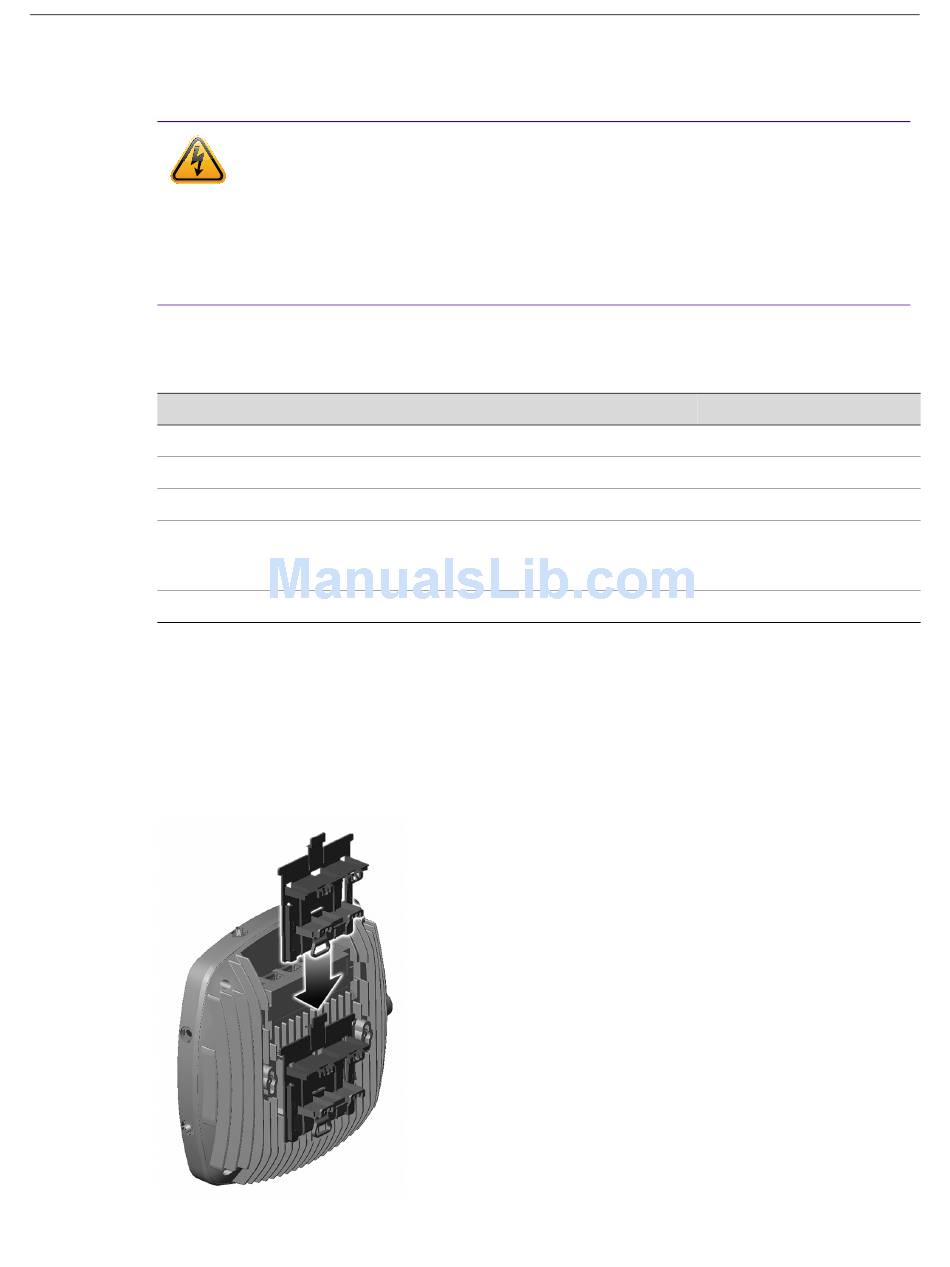

1. Slide the ceiling mount bracket base into the metal base. The locking tab fits into the groove in
the fins. See Figure
Figure 2-1
8 Access Point Installation Procedures
WARNING
Electrical Hazard: Only qualified personnel should install or service this unit.
Riesgo Electrico: Nada mas personal capacitado debe de instalar o darle servicio a esta
unida.
Elektrischer Gefahrenhinweis: Installationen oder Servicearbeiten sollten nur durch
ausgebildetes und qualifiziertes Personal vorgenommen werden
2‐1.

Attaching Mount Bracket to the Access Point

.
Refer to page...
8
9
11
11
11
