4.

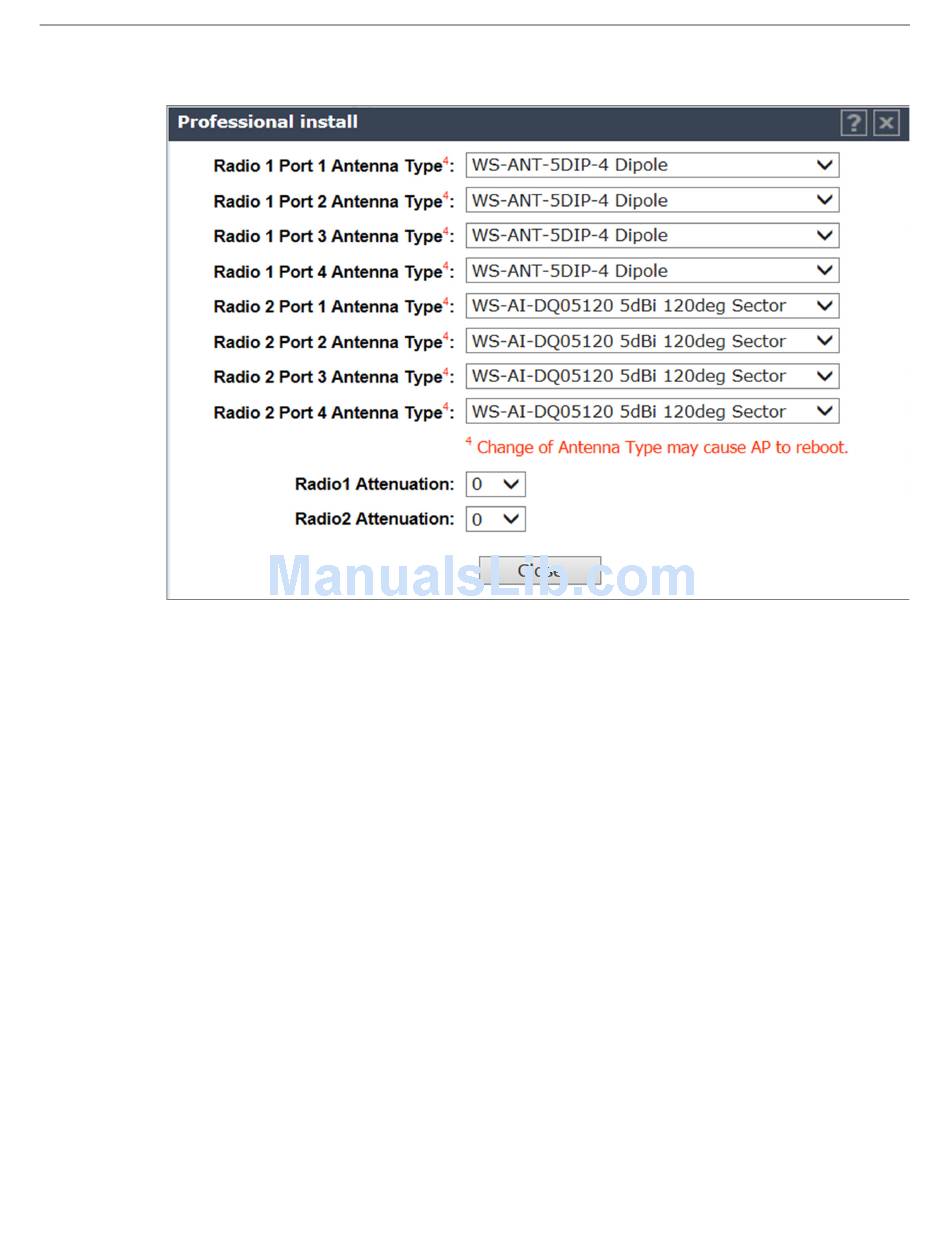

When configuring the AP3935e, click Professional Install. The Professional Install dialog
displays to configure the external antennas.
5.
Modify the Radio Antenna Type as follows:
–
–
–
–
6.
Modify Radio Attenuation as follows:
–
–
–
7.
Install a terminator (rf 50 Ohm) on all ports where an antenna is not connected.
Configure Radio Channel
1.
Click APs in the left pane, then in the Wireless AP list, click the Wireless AP whose properties
you want to modify. The AP Properties tab displays Wireless AP information.
14 Configuring AP3935e Channel Settings
If attaching quad port antennas, configure all four RF ports with the same antenna type.
If attaching triple port antennas, configure ports 1, 2, and 3 with the same antenna type
and configure port 4 (non‐active port) to No Antenna.
If attaching dual port antennas, configure ports 1 and 2 with the same antenna type and
configure ports 3 and 4 (non‐active ports) to No Antenna.
If attaching single port antennas, configure port 1to the selected antenna type and
configure ports 2‐4 (non‐active ports) to No Antenna.
Add any attenuation (dBm non‐negative) due to cable loss or attenuator added to the line
between AP port and the antenna.
Same attenuator loss is assumed and is required for all 4 ports of the radio except when
one or more ports is not connected to the antenna and is properly terminated as describe
in next step.
The professional installer is responsible for accurately configuring port Attenuation.
Never configure port attenuation higher than the actual attenuation between the AP port
and the antenna.
