Access Point Installation Procedures

Warning
Electrical Hazard: Only qualified personnel should install or service this unit.
Riesgo Electrico: Nada mas personal capacitado debe de instalar o darle servicio a esta unida.
Elektrischer Gefahrenhinweis: Installationen oder Servicearbeiten sollten nur durch
ausgebildetes und qualifiziertes Personal vorgenommen werden.
These procedures describe how to attach the AP3935 to a drop ceiling (flat or protruded), and how to
mount the AP to a wall.
Mounting the AP3935 to a Drop Ceiling
To mount the AP to a drop ceiling, use the mounting bracket that is provided with the AP.
1 Slide the ceiling mount bracket base into the metal base. The locking tab fits into the groove in the
fins.

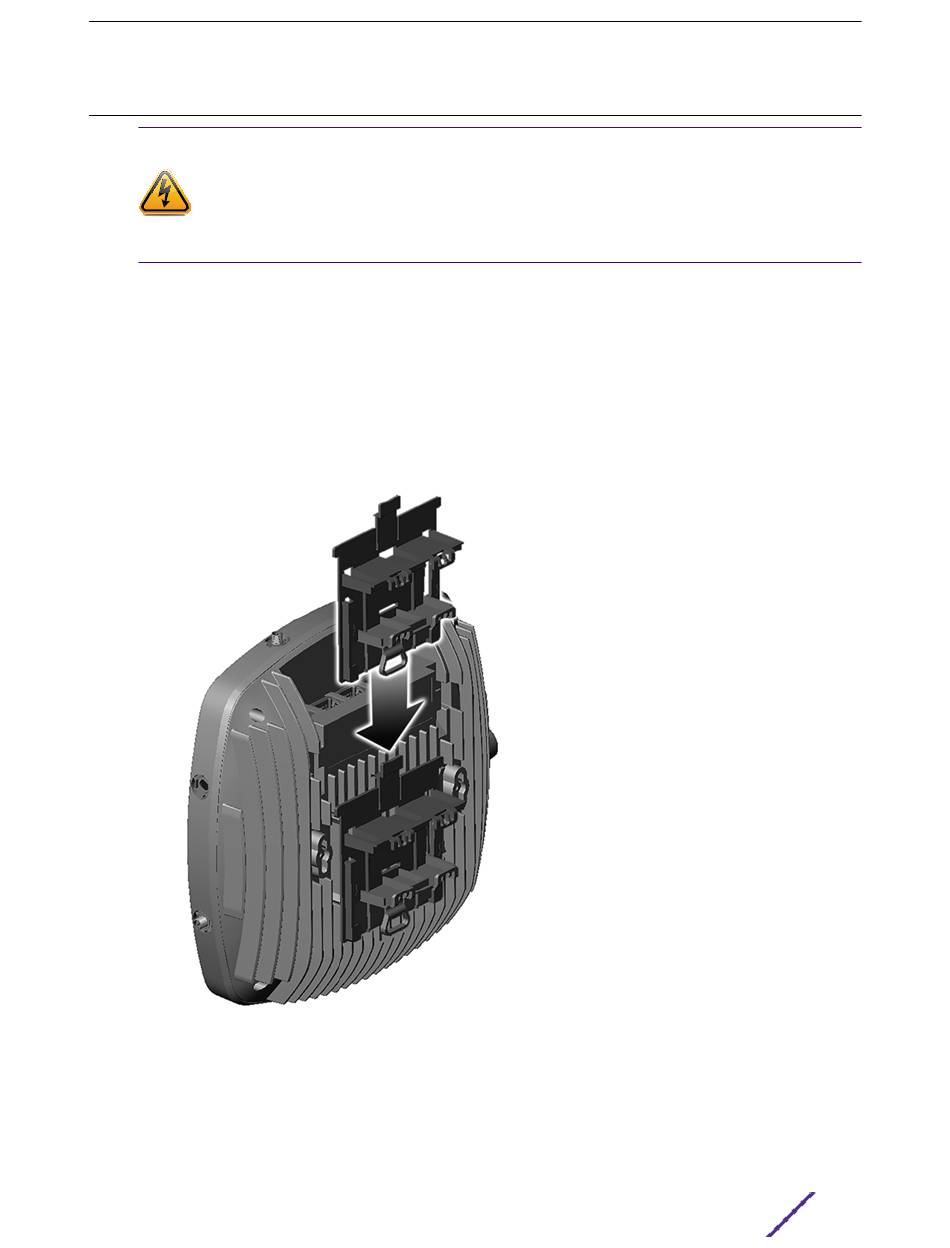

Figure 6: Attaching Mount Bracket to the Access Point
2 Remove the ceiling panels around the drop ceiling T-bar rail and verify that the Ethernet cable can
reach the AP at the mounting point.
