Dedicated Micros SD Excel Installation Manual page 64

Note: Ports on the switches are allocated using a combination of base switch number and configuration
page. Each Layer 3 Enhanced CCTV Switch has a hardware configuration dial on the base to
allow a unique (in the cascade) identifier to be set. This identifier is used by this configuration
page to configure the base camera number.
SATA1
SERIAL 1 SERIAL 2 SERIAL 3 PTZ SERIAL 4 PTZ
HDMI 1
OUT OUT A
VID 17 VID 18
B
IN IN
AUDIO AUDIO
NET NET
USB MON A MON VID 1 VID 2
Cameras
Example Settings

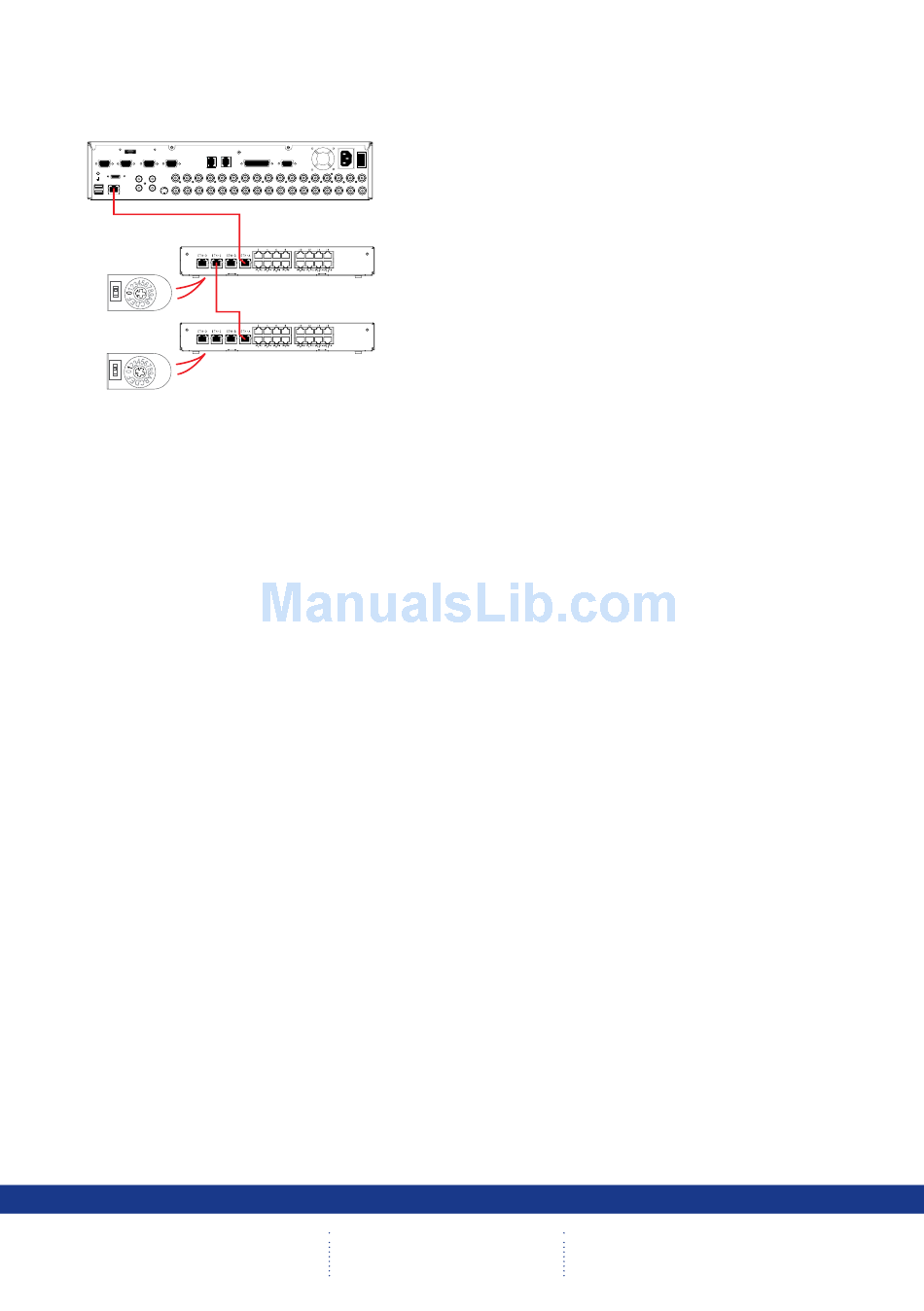

Scenario 1 - One switch - 16 Analogue cameras attached to SD Excel CIP
Switch Hardware Setting
0
Scenario 2 - Two switches - 0 Analogue cameras attached to SD Excel CIP
Switch Hardware Setting
0
1
Scenario 3 - Two switches - 8 Analog Cameras (ports 7-16)
Switch Hardware Setting
0
1
Scenario 4 - Three switches - 0 Analogue Cameras
Switch Hardware Setting
0
1
2
Scenario 5 - Four switches - Geographically dispersed IP cameras
Switch Hardware Setting
0
1
2
3
Note: Analogue cameras connected to the rear of the unit will take priority over IP cameras connected
via a Layer 3 Enhanced CCTV Switch. An IP camera connected into a channel that is occupied
by an Analogue camera will be 'bumped' onto the Unallocated Cameras list to allow it to be
assigned to a free channel.
