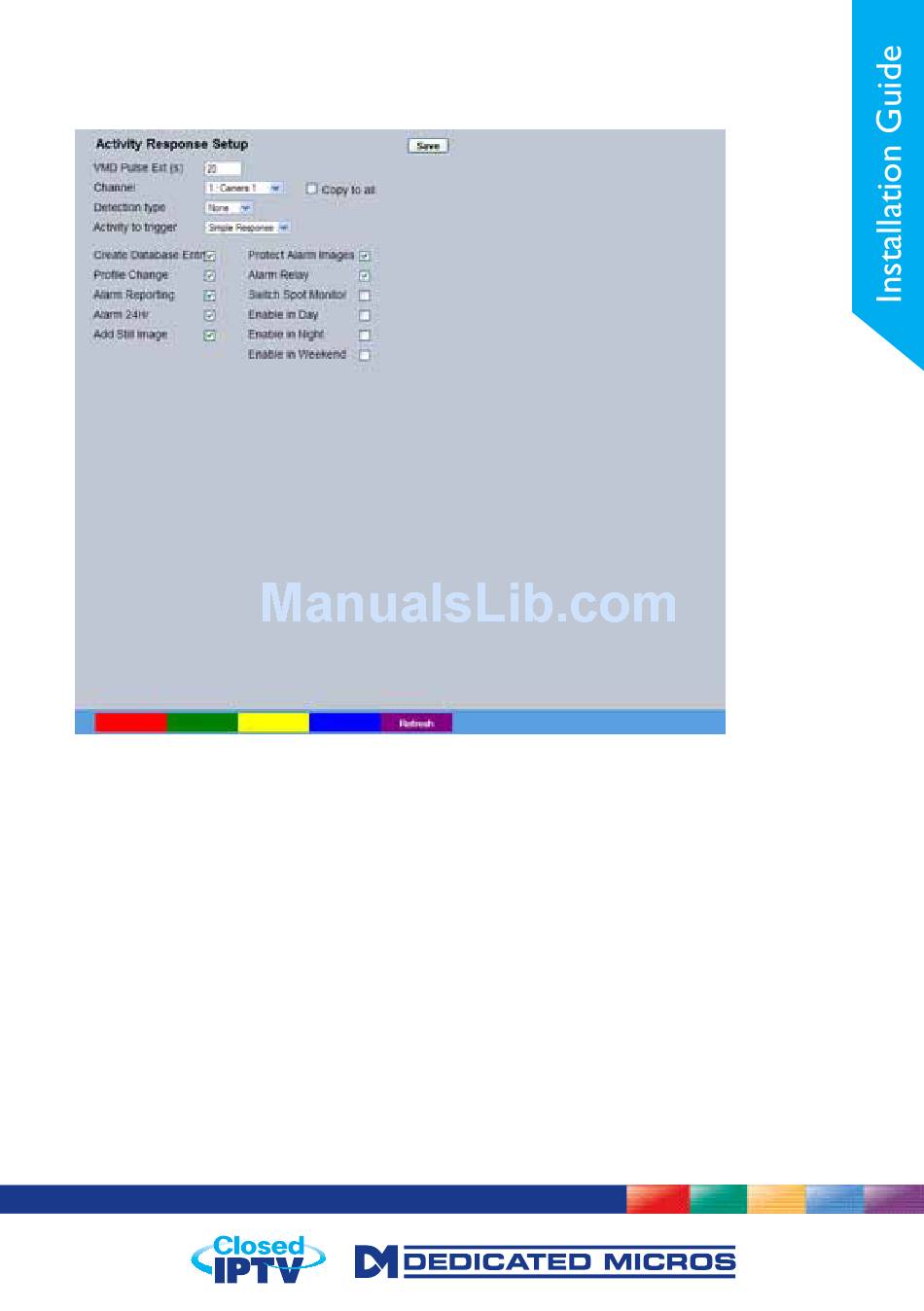

VMD/Activity Response Setup

This menu enables response configuration following activity trigger on a selected camera channel.
VMD Pulse Ext
Channel
Copy To All
Detection Type
Note: Whichever Detection option is selected here, will result in the camera channel being only
available for editing in the relevant configuration menu i.e. if Activity is selected for Channel 1;
this channel can only be edited for Detection in the Activity Setup menu and not the VMD
Configuration menu.
Activity To Trigger
Note: When Activity to Trigger is set to 'Zone'; the options detailed below are unavailable.
Create Database Entry
The pulse extension extends the trigger period to avoid double triggers
of VMD occurring, i.e. If a second incident of VMD is received, after the
first alarm is finished but within this period, the unit will not create a new
event.
Select the camera input for configuration from the drop down list.
Select to copy the current Activity Response settings to all
camera channels.
Each camera input can be configured for either 'VMD' or 'Activity' detection. To
assign no detection settings to the camera, select 'None'
Following Activity activation, select 'Simple Response' to trigger specific
chosen responses from the options detailed below. Select 'Zone' to
apply the Zone Input rules as configured in the Zone Input menu. Refer
to 'Zone Input' for more information.
When selected, an alarm entry will be added to the
Event database.
