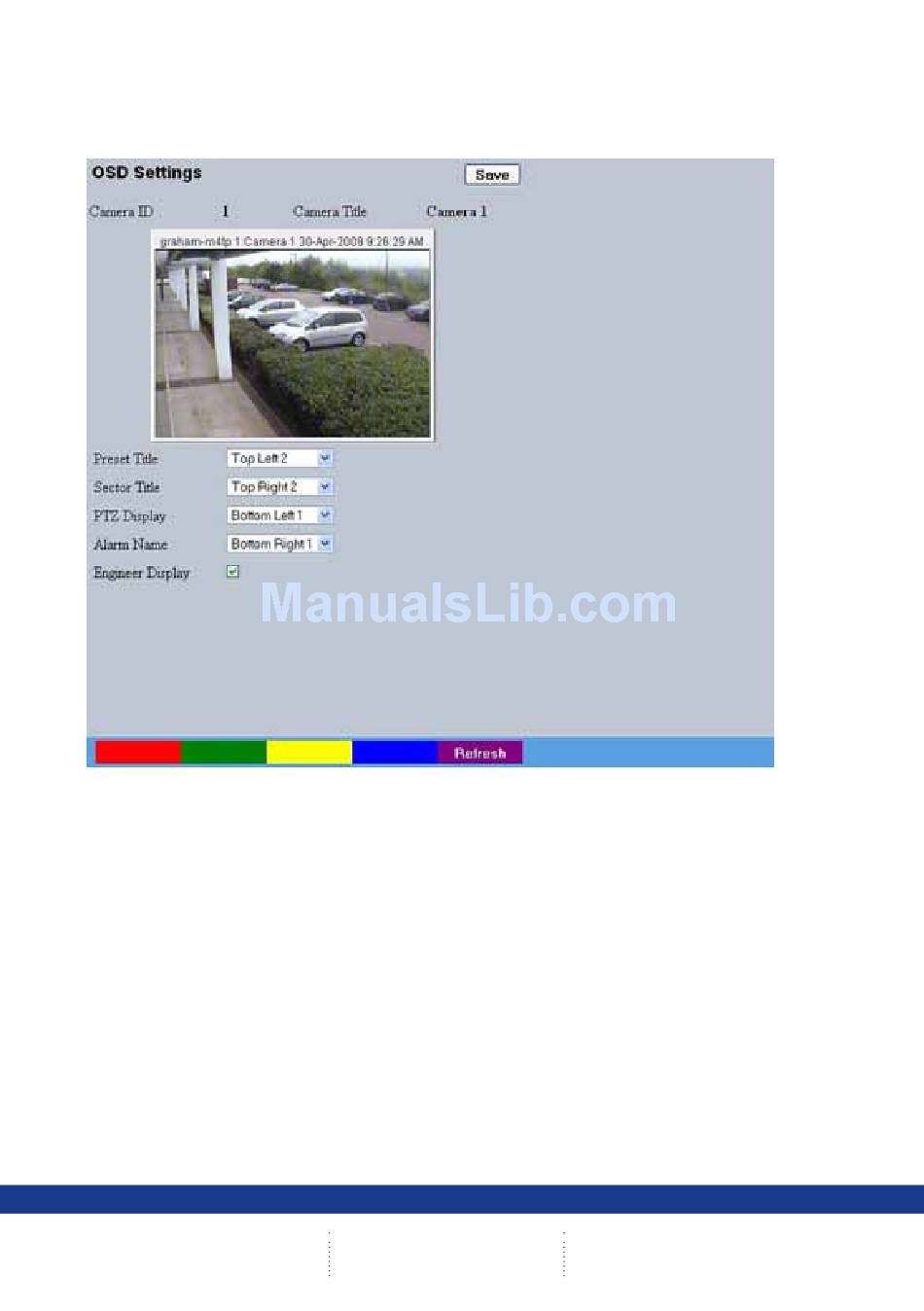

OSD Excel Settings

This menu allows the Oracle Dome OSD Excel (On Screen Display) information to be configured. This
text will accompany displayed camera images in the Viewer and on a local monitor.
Preset Title Position
Sector Title Position
PTZ Display Position
Alarm Name Position
Engineer Display
Save (Grey)
168
Select desired position to locate the Preset Title information.
Select desired position to locate the Sector Title information.
Select desired position to locate the PTZ Display information.
Select desired position to locate the Alarm Name
Position information.
For all above functions, the available positions are:
Top Left, Top Right, Bottom Left, Bottom Right and
Off (No information displayed).
All options are then split into three further sections; 1,2 and 3.
This relates to the display line i.e. Top Left 1 would be the very top line,
Top Left 2 would be the line below etc. This enables information to be
'stacked' in one segment of the screen.
Toggle to switch the Engineer Display text On/Off. This function is
intended for future development.
Select to store OSD Excel Settings to the unit and the Oracle Dome
camera memory.
