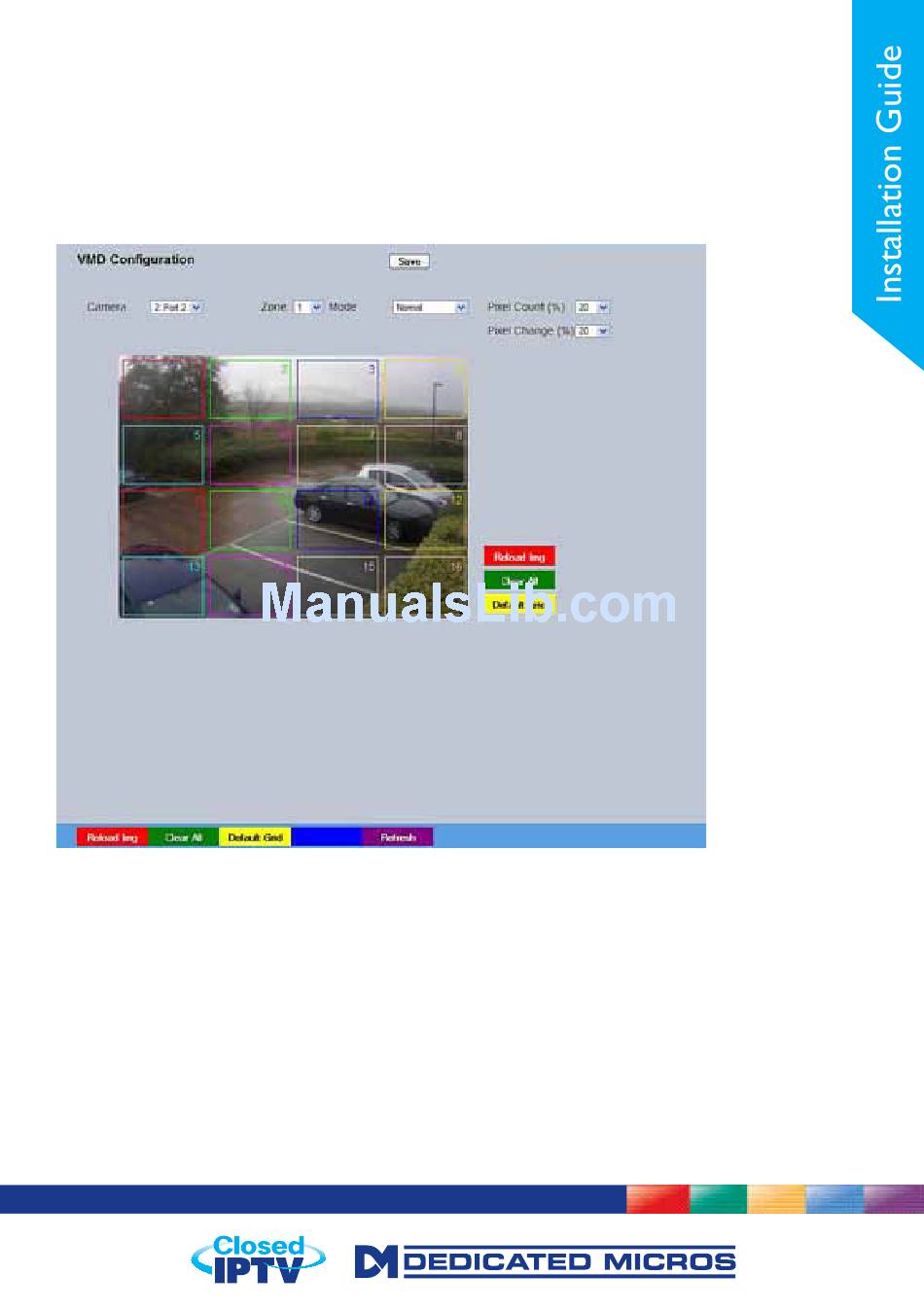

VMD Configuration
The unit supports VMD (Video Motion Detection) on all video inputs and allows cameras to automatically
detect if there is any movement/changes within the video scene.
Note:
Video Motion Detection enables a greater degree of control over detection settings and
configuration than the Activity Setup function. Each of the 16 VMD Zones can be directly sized
and configured to suit specific requirements. VMD can only be accessed and configured remotely
via the webpages.
Camera
Zone
This is a drop down list of the video inputs on the unit, selecting one
of the inputs will display the corresponding video source. Ensure this
corresponds with the selected Channel.
There are 16 VMD zones within the image that can be individually
configured, select the zone from the drop down list.
A selected zone can be re-sized by clicking the mouse button (use the
USB mouse if viewing on a local monitor) and then moving and clicking
the mouse again. A rectangle will then be displayed based on these two
selected points.
117
