Dedicated Micros SD Excel Installation Manual page 50

Remote codec lock status
System (Red)
Network (Green)
Video (Yellow)
Other (Blue)
Refresh (Purple)

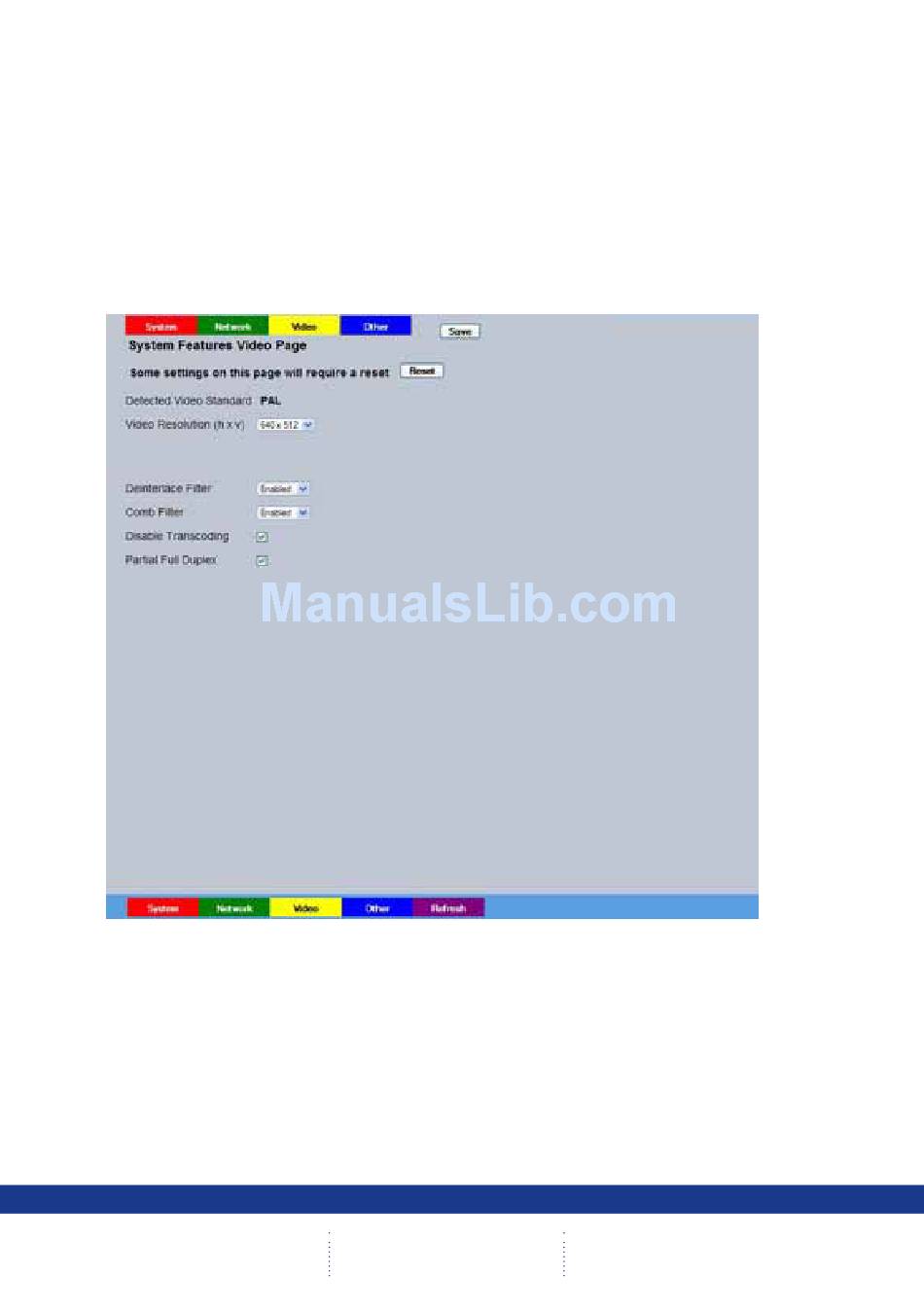

Video
Detected Video Standard
Video Resolution (h x v)
Deinterlace Filter
Comb Filter
50
Each camera can work as a remote codec for one NetVu Connected
server. This is the most efficient means of connection to a DM Closed IPTV
server as the camera generates the viewing and recording streams directly
in the format required, so the server does not need to reprocess them. The
status shows whether or not the camera is bound to a server as a remote
codec, and if so, it identifies the server it is bound to.
Select to open the System->Features->System page
Select to open the System->Features->Network page
Select to open the System->Features->Video page
Select to open the System->Features->Other page
Refreshes the information on the current page.
The unit automatically detects the video standard being used i.e. PAL/
NTSC.
Allows selection of the resolution, options are 704 x 576, 704 x 512 and
640 x 512
When Enabled, this option will improve the appearance of moving
objects by applying a deinterlace filter that minimises the comb effect
that can be visible when recording high motion scenes in 4CIF mode.
It is recommended that this option be enabled when recording in 4CIF
mode.
Enable this option to activate the Comb Filter function. Comb Filter can
help improve the fine details of a video signal image by filtering the
luminance and chrominance separation process.
SD Excel
