Settings
Note:

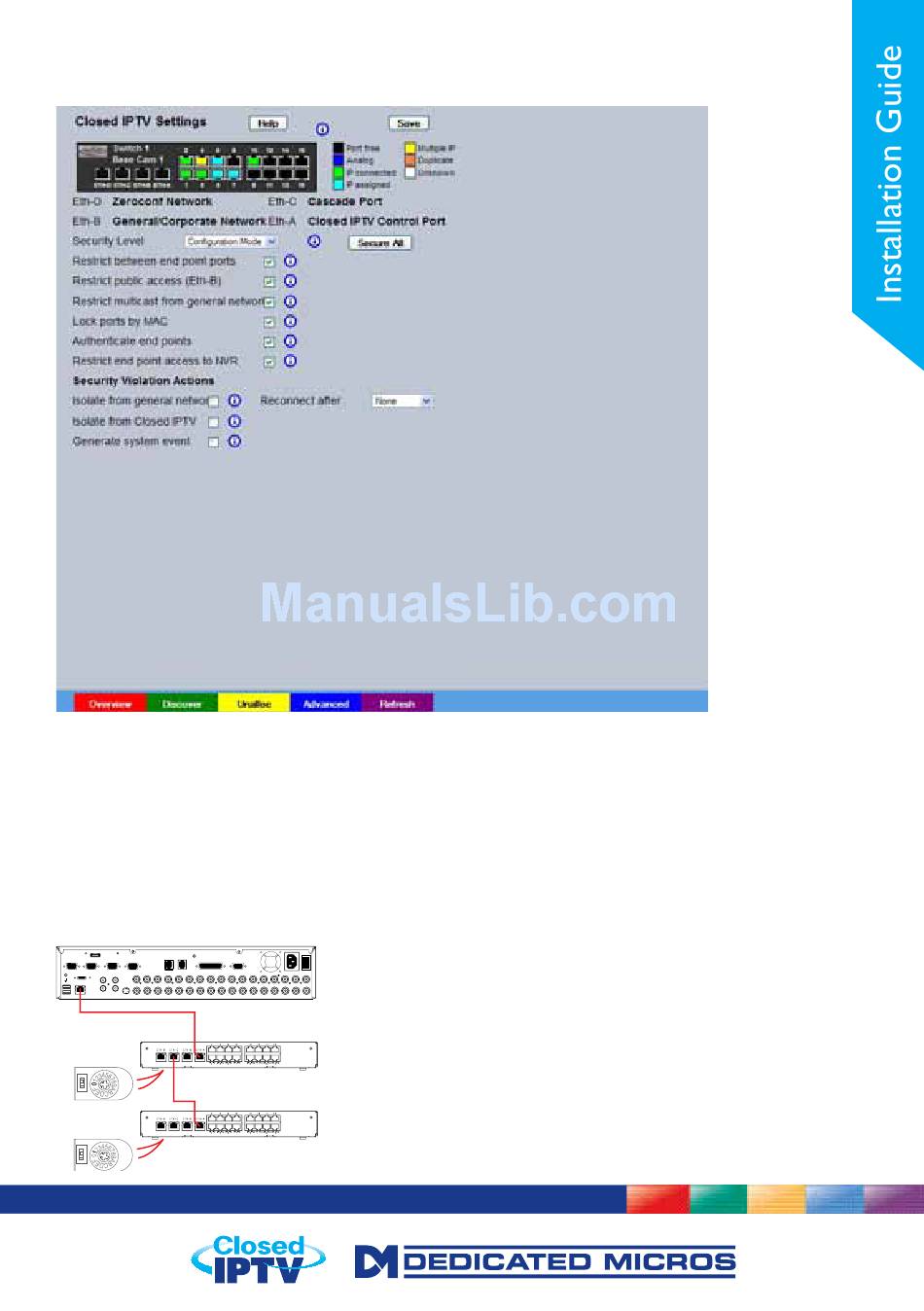

The blue 'i' in a circle is a link to in-page help. Click on a symbol to get help about the adjacent
menu item.
The on-screen image of the Layer 3 Enhanced CCTV Switch provides instant information regarding
camera connection ports.
It is advisable to only allocate ONE camera (analogue or IP) to each available port.
Each Layer 3 Enhanced CCTV Switch has a rotary dial on the base to allow a unique (in the cascade)
identifier to be set. Port to Channel mappings are allocated using a combination of this rotary dial and the
'Base Camera' setting on the Closed IPTV settings menu.
SATA1
KBD EXP
IR
SERIAL 1 SERIAL 2 SERIAL 3 PTZ SERIAL 4 PTZ ALARMS
HDMI 1
OUT OUT A
VID 17 VID 18 VID 19 VID 20 VID 21 VID 22 VID 23
B
IN IN
AUDIO AUDIO
NET
USB NET VID 1 VID 2 VID 3 VID 4 VID 5 VID 6 VID 7
MON A MON
Default Settings
SD Advanced
Switch No
I
RELAYS
O
VID 24 VID 25 VID 26 VID 27 VID 28 VID 29 VID 30 VID 31 VID 32 0
VID 8 VID 9 VID 10 VID 11 VID 12 VID 13 VID 14 VID 15 VID 16
1
Layer3 Enhanced
CCTV Switch
Layer3 Enhanced
CCTV Switch
EcoSense NVR
Camera Nos
1-16
17-32
Layer3 Enhanced
CCTV Switch
Layer3 Enhanced
CCTV Switch
