Closed IPTV

Closed IPTV Camera Allocation

Analogue channels can be utilised by the BNC connections on the back of the unit OR by the sockets
on the Layer 3 Enhanced CCTV Switch. If an IP source is plugged into a channel occupied by a BNC
connection, the BNC will take priority and possess the channel, whilst the IP connection will be added to
an unassigned list, allowing it to be tied to an available channel through the configuration pages.
Individual cameras should be connected in sequential order, i.e. connect the first camera to port number
1 on the Layer 3 Enhanced CCTV Switch. When this connection is registered by the NVR, it will display
a notification on the Main Monitor showing the recognised details of the new video source, including
resolution, name and MAC address. There will also be a notification if a camera is disconnected.
Multi channel encoder camera allocation (DV-IP NV1)
A NetVu Connected multi-channel server can be can be added to any of the camera ports as a video
source. The available channels are then allocated as the Layer 3 Enhanced CCTV Switch detects video
sources on the NetVu Connected multi-channel server and allocates them to consecutive Port Free
channels, starting at the port on which the video source is added. If the process encounters a channel that
does not have "Port Free" status then the video source will be added to the un-allocated list; consecutive
cameras will only be applied to channels that are Port Free.
For example the Layer 3 Enhanced CCTV Switch has channel ports 1,3,4 listed as Port Free, 2 is an
Analogue camera. If one 4 channel ICR encoder is added to camera 1. The result is;
►
◄
►
►
SATA1
KBD
SERIAL 1 SERIAL 2 SERIAL 3 PTZ SERIAL 4 PTZ
HDMI 1
A
OUT OUT
VID 17 VID 18 VID 19
B
IN IN
AUDIO AUDIO
NET
USB NET
MON A MON VID 1 VID 2 VID 3
VID IN
1
2
Video source
added to
un-allocated list

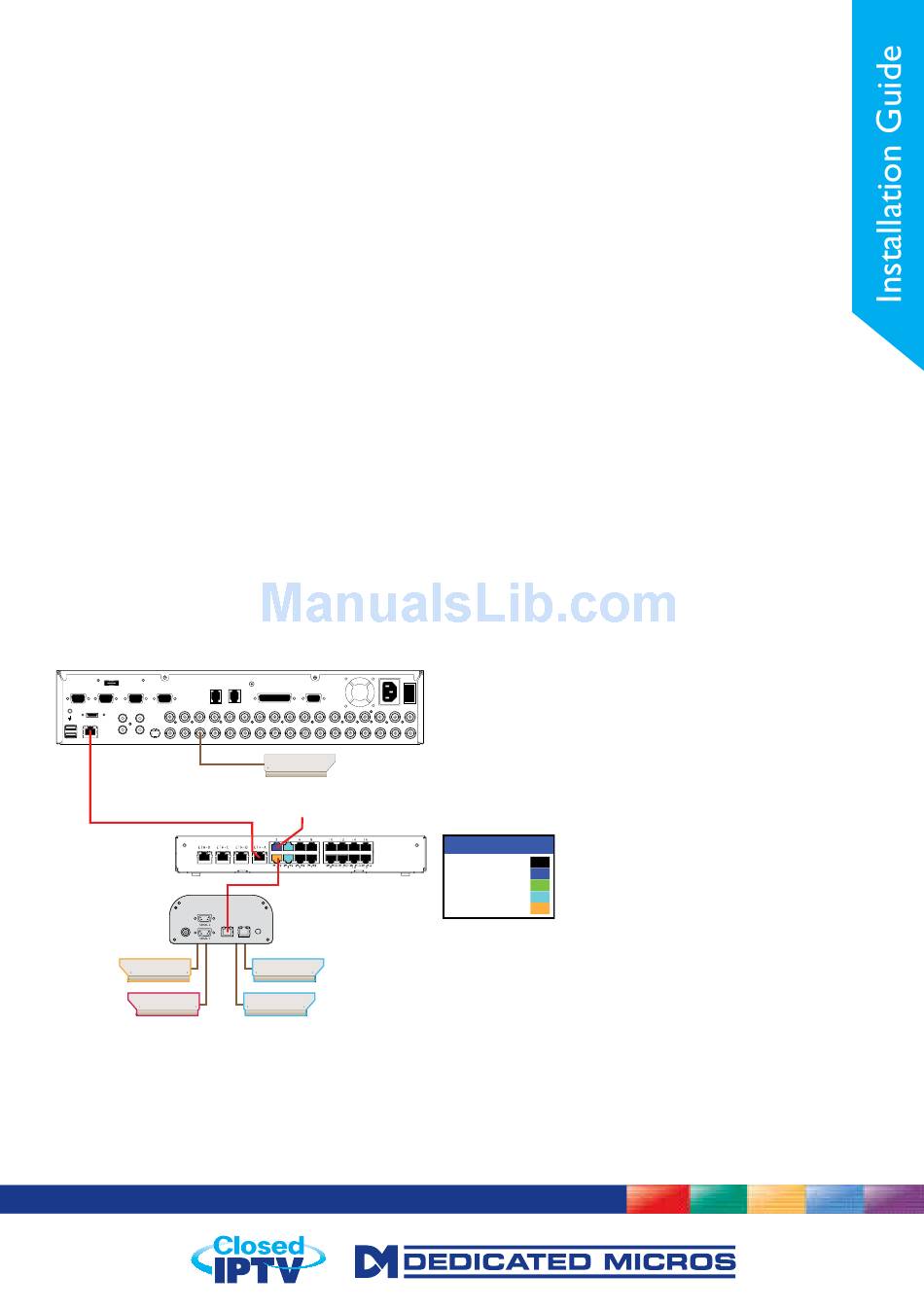

When a multichannel encoder is connected to the Layer 3 Enhanced CCTV Switch, the NVR will receive
information from the encoder about how many cameras are connected. Channels set as Not Connected
on the encoder, when presented to the Enhanced Layer 3 switch will not be eligible for Auto IP.
ICR Encoder - Camera 1 -> Camera 1 NVR
ICR Encoder - Camera 2 -> Unallocated, Cameras
ICR Encoder - Camera 3 -> Camera 3 NVR
ICR Encoder - Camera 4 -> Camera 4 NVR.
