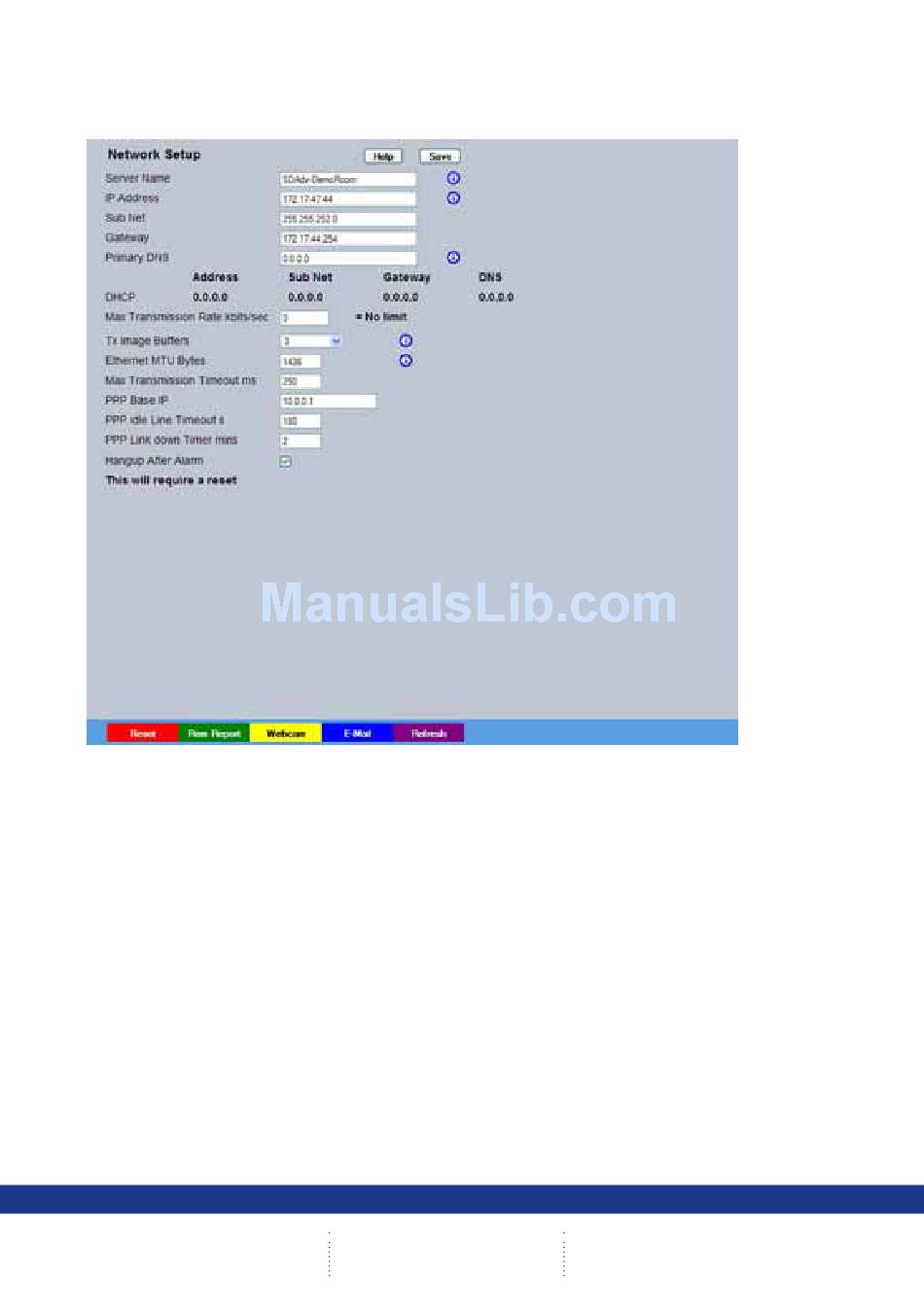

Network
This menu allows additional network settings to be configured if required.
Server Name
IP Address
Sub Net
Gateway
Primary DNS
DHCP
Note:
If no IP address is set, DHCP will automatically assign one. The unit interrogates the network for a
DHCP server, which assigns an available IP address. This IP address can change every time the unit is
powered up. Therefore it is recommended that DHCP be disabled by entering a suitable, free, static IP
address.
Tip:
Max Transmission Rate
Tx Image Buffers
122
This field can be edited to allocate a name to the unit. This would be
used if accessing the unit via a Domain Name Server (DNS).
This is the IP address allocated to the unit.
This is the subnet of the network were the unit is located.
This is the IP address of the default gateway (router).
This is the primary DNS server IP address for applications utilising
domain names.
If DHCP is being utilised, the assigned IP address will be displayed
here.
Use DHCP to locate a free IP address, then fix the unit IP address to the free
one by entering the details into the IP address, subnet and gateway fields.
Shows the maximum transmission speed for the network type.
This is used in order to improve the picture delivery over Ethernet when
using a slow connection i.e. 256Kbps. A buffer setting of 1,2 or 3 is
available.
