Activity Setup

The unit supports Activity Detection on all video inputs. It enables cameras to automatically detect any
movement/changes within the video scene; this can trigger a number of operations such as FTP alarm
notification and an increase in recording rate.

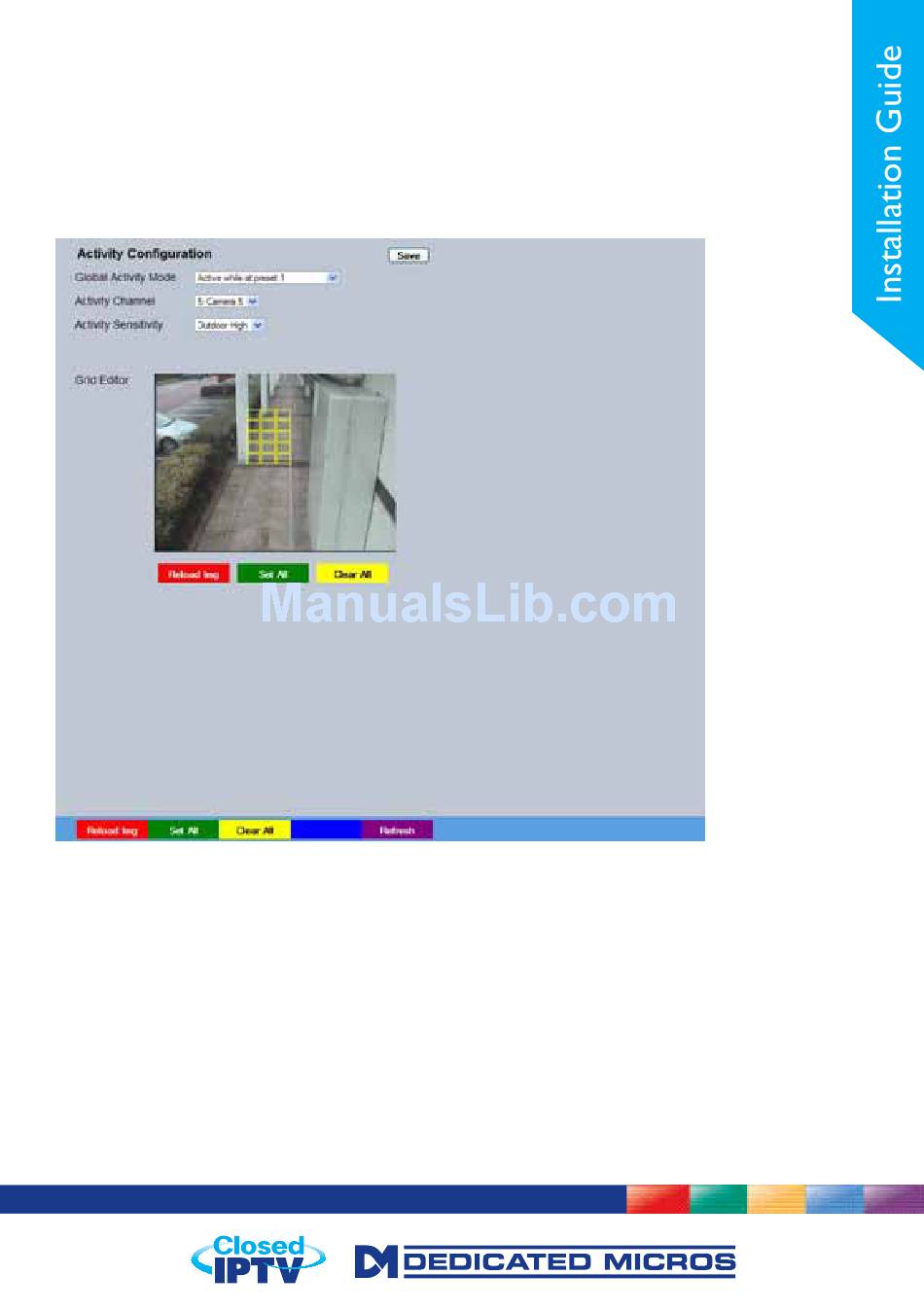

A still image of the selected camera will be shown in the Grid Editor screen. To establish an Activity zone,
edit the cells displayed across the image.
This option should be used in conjunction with the Zone Inputs and Zone Actions menus.
Global Activity Mode
Activity Channel
Edit Action
Activity Sensitivity
Three options are available for Activity activation (specifically in relation
to a PTZ camera).
Selecting 'Active while at Preset 1' will result in Activity mode
functioning only when the camera is at preset position 1. Select 'Active
while camera not in motion' for Activity mode to function only when the
camera is still. Select 'Always Active' for Activity mode to be in constant
operation.
This is a drop down list of the video inputs on the unit, selecting an
input will display images from the corresponding video source.
Select 'Invert' to change the current grid state i.e. Clear to Set. Select
'Clear' to remove grids or select 'Set' to add grids.
This option allows the sensitivity setting to be established for the activity
grid being configured. There are five settings to choose from: Indoor High,
Indoor Low, Outdoor High, Outdoor Low, Very Low.
