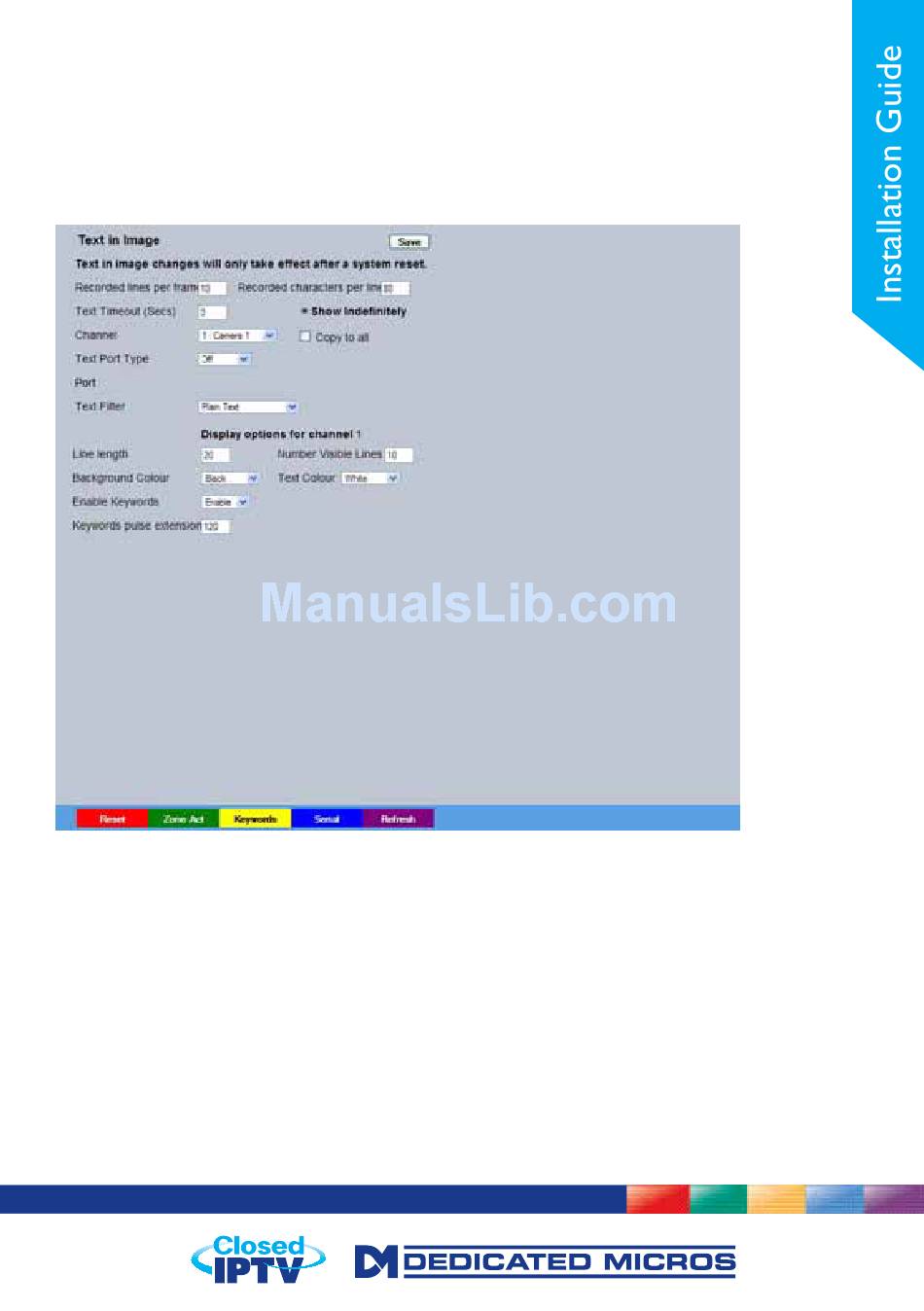

Text In Image

It is possible to integrate the unit into a system were text information can be stored with relevant images
for review. This would be most useful in a Retail or Finance application were text data originating from a
cash register could be displayed in real time with the video images of the same Point of Sale.
Note: This menu will only be displayed if 'Text in Image' is selected in the
System Settings->Features menu.
Recorded lines per frame
Text Timeout
Channel
Copy To All
Text Port Type
Port
This controls how many lines of text are stored on the server, and not
how many are displayed on screen. This allows more data to be saved
than is shown.
This setting controls how long, in seconds, the text is shown on screen
(selecting 0 will show the text indefinitely).
Select the camera input for configuration from the drop down list.
Select to copy the current text in image settings to all camera channels.
Select the input source for Text in Image data. Select 'Off' to switch the
function off, select 'Network to use the unit's Network port or 'Serial' to
use one of the unit's serial ports (see 'Port' below).
All serial ports on the unit support the option for Text In Image.
For serial transmission ensure one of the serial ports is configured
appropriately, refer to System Settings->Serial Ports'. Select the
configured port from the drop down list.
