Spot Monitor / On-Screen Display (Local Monitor Only)

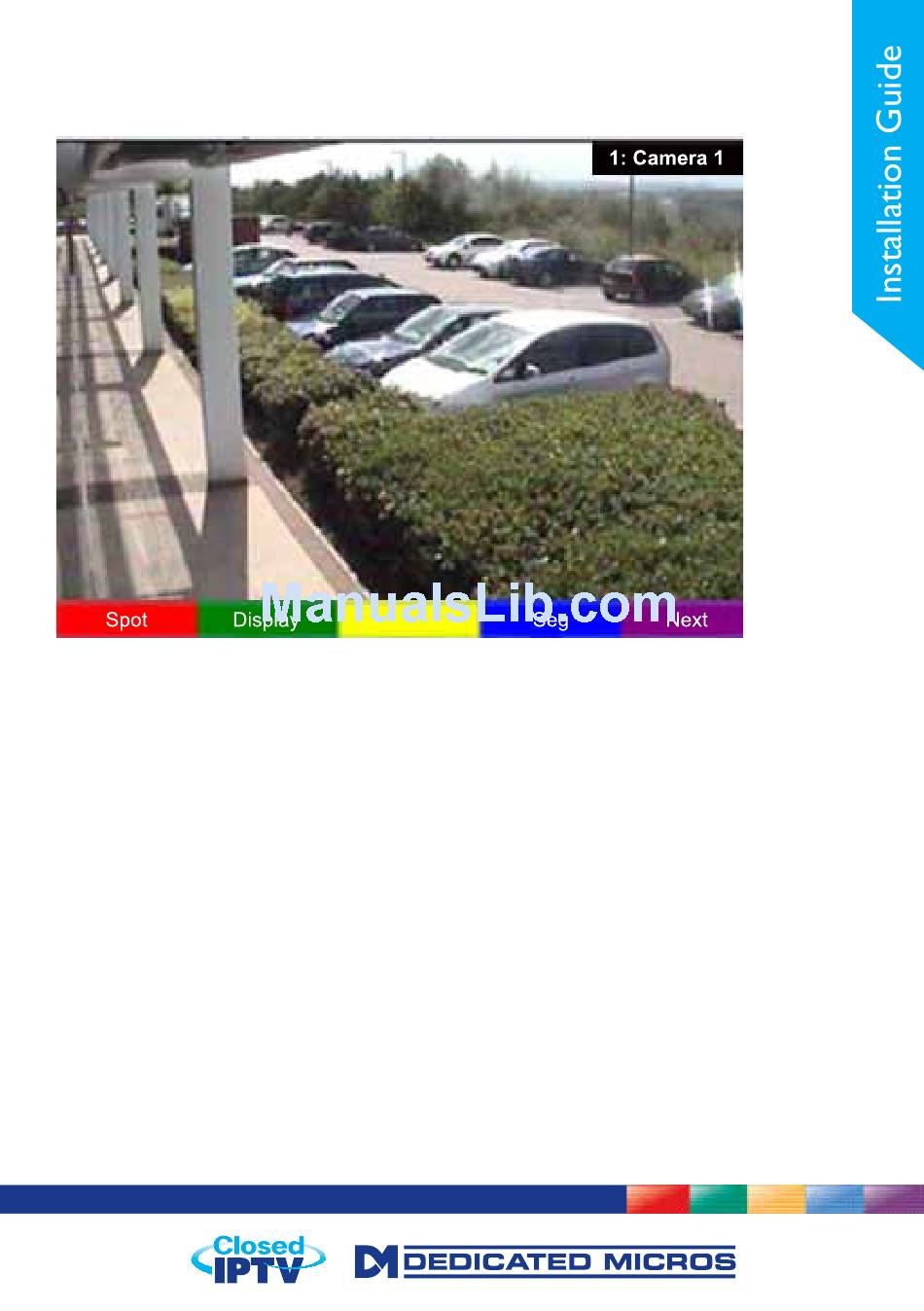

This menu (only accessible via a local monitor) allows configuration of the camera output displayed on the
spot monitor, plus enables all on-screen display text to be removed from the main monitor display
Red
Green
Blue
Purple
Spot Select to change the camera currently displayed on
the spot monitor. When selected, use the IR Remote
Control, Front Panel Interface or optional Keyboard to
cycle through available cameras. As different cameras
are selected, they will be displayed on the spot
monitor only and not on the main monitor. The text
'Spot' will be displayed in the lower left segment of the
main monitor.
Display Select to remove the on-screen text displayed on the
main monitor.
Seg Select to custom configure a quad or multiscreen
display. First ensure the viewer is displaying in Quad
or Multiscreen format, then select 'Seg'. The camera
view in the top left segment will be highlighted. Select
a camera channel via the IR Remote Control, Front
Panel Interface or optional Keyboard. When your
chosen camera is displayed, select 'OK'. The next
camera segment will then be highlighted and ready
to be assigned a camera. Select 'Seg' to exit when
all segments have been assigned a camera channel.
When accessing Quad or Multiscreen display, the
custom display config will now be
Next Opens the next page of the Viewer menus.
displayed.
