CyberData 011211 Installation Quick Reference
Voip v3 indoor intercom
Hide thumbs
Also See for 011211:
- Installation quick reference (2 pages) ,
- Operation manual (85 pages) ,
- Configuration manual (39 pages)
Table of Contents
Advertisement
Quick Links

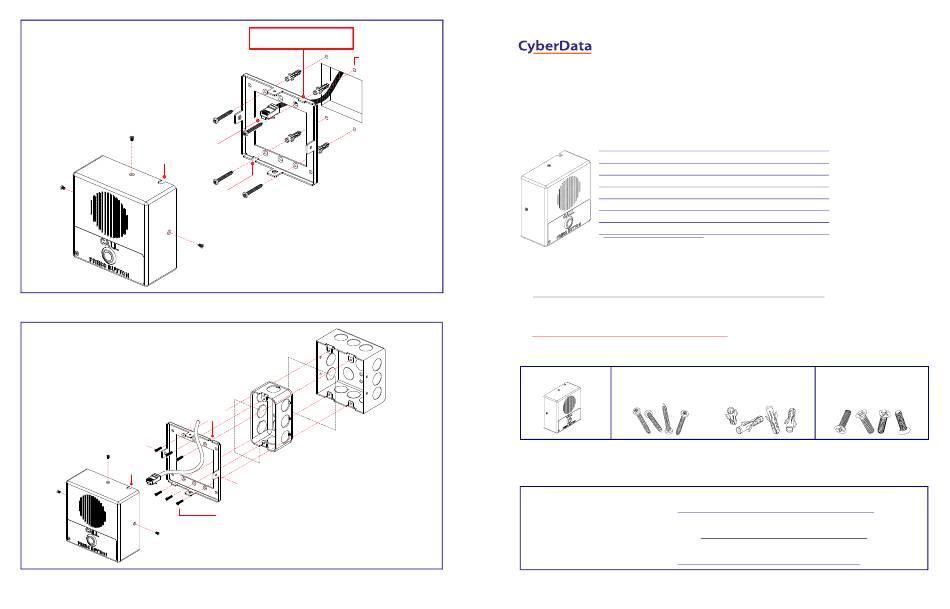

Wall Mounting Options
121001A
Screw
Accessory
Network
Top
Cable
Cable
to J1
Entry
Slot
Gang Box Mounting Options
Top
Cable
Entry
Slot
© 2013, CyberData Corporation, ALL RIGHTS RESERVED
Rotate Backplate 180°
to use Top Cable Entry
Pre Drill Holes
on Wall
Backplate
Wall Cutout
Kit
Top
Cable
Entry
Top
Cable
Entry
Wall Cutout
Backplate accepts
Single Gang Box
or Two Gang Box
Wall Cutout
Backplate
121002B
Screw
Accessory
Kit
Gang Box Mounting Screw (4x)
Single Gang Box use two
930502E
Quick Reference
Installation Quick Reference
The IP Endpoint Company
VoIP V3 Indoor Intercom
SIP Compliant

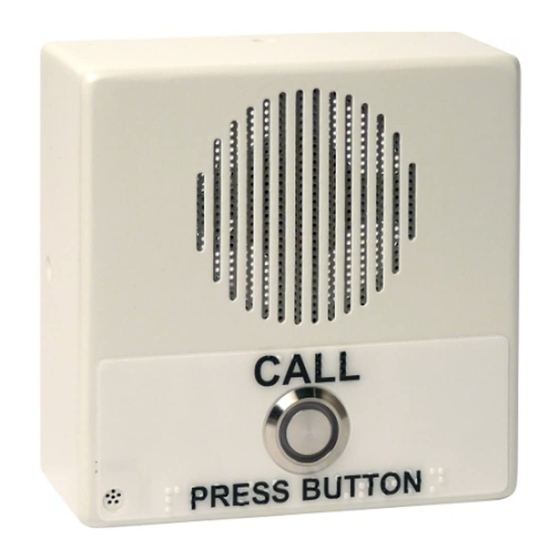

011211*, RAL 9003, Signal White
*Replaces the 011111 number.
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
•
Download the VoIP V3 Indoor Intercom Operations Guide PDF file from the following web page:
http://www.cyberdata.net/products/voip/digitalanalog/intercomindoorv3/docs.html
•
Create a plan for the locations of your Intercoms.
•
Prior to installation, consult local building and electrical code requirements.
•
WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Intercom Assembly
(1) Wall Mounting Kit
(4) Sheet Metal Screw
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web:
http://www.cyberdata.net/support/contactsupportvoip.php
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web:
http://www.cyberdata.net/support/warranty/index.html
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
(1) Gang Box Mounting Kit
(4) Plastic Ribbed Anchor
(4) #6-32 FlatHead Countersunk
Machine Screw
http://www.cyberdata.net/support/rmastatus.html
930502E
© 2013, CyberData Corporation, ALL RIGHTS RESERVED
Advertisement
Table of Contents
Related Manuals for CyberData 011211
Summary of Contents for CyberData 011211
- Page 1 Monterey, CA 93940, USA Email: RMA@CyberData.net RMA Status: http://www.cyberdata.net/support/rmastatus.html Phone: 831-373-2601 Fax: 831-373-4193 Warranty information is available at: www.CyberData.net Web: http://www.cyberdata.net/support/warranty/index.html © 2013, CyberData Corporation, ALL RIGHTS RESERVED 930502E Quick Reference Quick Reference 930502E © 2013, CyberData Corporation, ALL RIGHTS RESERVED...
- Page 2 0.25 [6.4] these contacts for any other purpose will damage the Top Cable Entry Closed Intercom and void the product warranty. Dimensions are in Inches [Millimeter] © 2013, CyberData Corporation, ALL RIGHTS RESERVED 930502E Quick Reference Quick Reference 930502E © 2013, CyberData Corporation, ALL RIGHTS RESERVED...
