A.6 PCB Dimensions

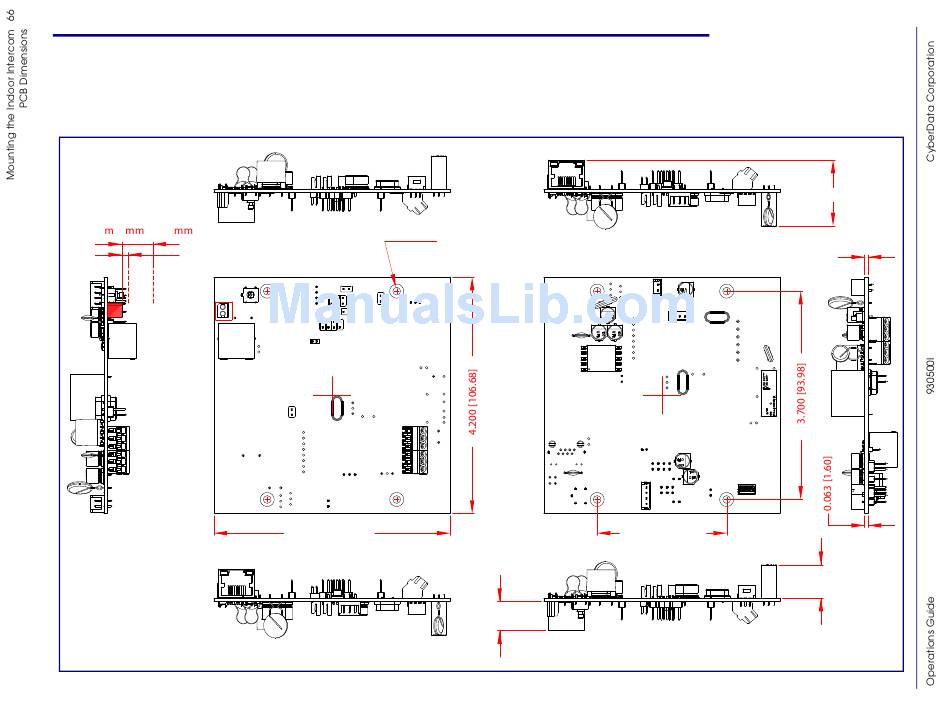

Figure A-5 shows the PCB dimensions and the intrusion sensor range.
Effective Range for
Intrusion Sensor to Function
fro 3 to 14
0.551 [14.00]
0.118 [3.00]
SW1
< Intrusion Sensor >
DIMENSIONS ARE IN INCHES [MILLIMETER]
Figure A-5. PCB Dimensions and Intrusion Sensor Range
BOTTOM SIDE
JP1 JP5
J4
JP10
J5
J1
JP7
4.200 [106.68]
ø0.138 [ø3.51]
Fits #6-32 Machine Screw
(4 Places)
J3
0.516 [13.10]
1.169 [29.70]
0.063 [1.60]
TOP SIDE
J7
J6
J10
J2
2.300 [58.42]
0.591 [15.00]
