2. On the Device Configuration page, you may enter values for the parameters indicated in
Web Page Item
Volume Settings
Speaker Volume
Microphone Gain
Relay Settings
Activate Relay with DTMF Code
DTMF Activation Code
DTMF Activation Duration (in seconds)
Play tone during DTMF Activation
Activate Relay During Ring
Activate Relay During Night Ring
Activate Relay While Call Active
Activate Relay on Button Press
Relay on Button Press Timeout (in seconds) Type the desired time (in seconds) that you want the relay
Miscellaneous Settings
Auto-Answer Incoming Calls
Button Lit When Idle
Play Ringback Tone
Operations Guide
Table 2-7.

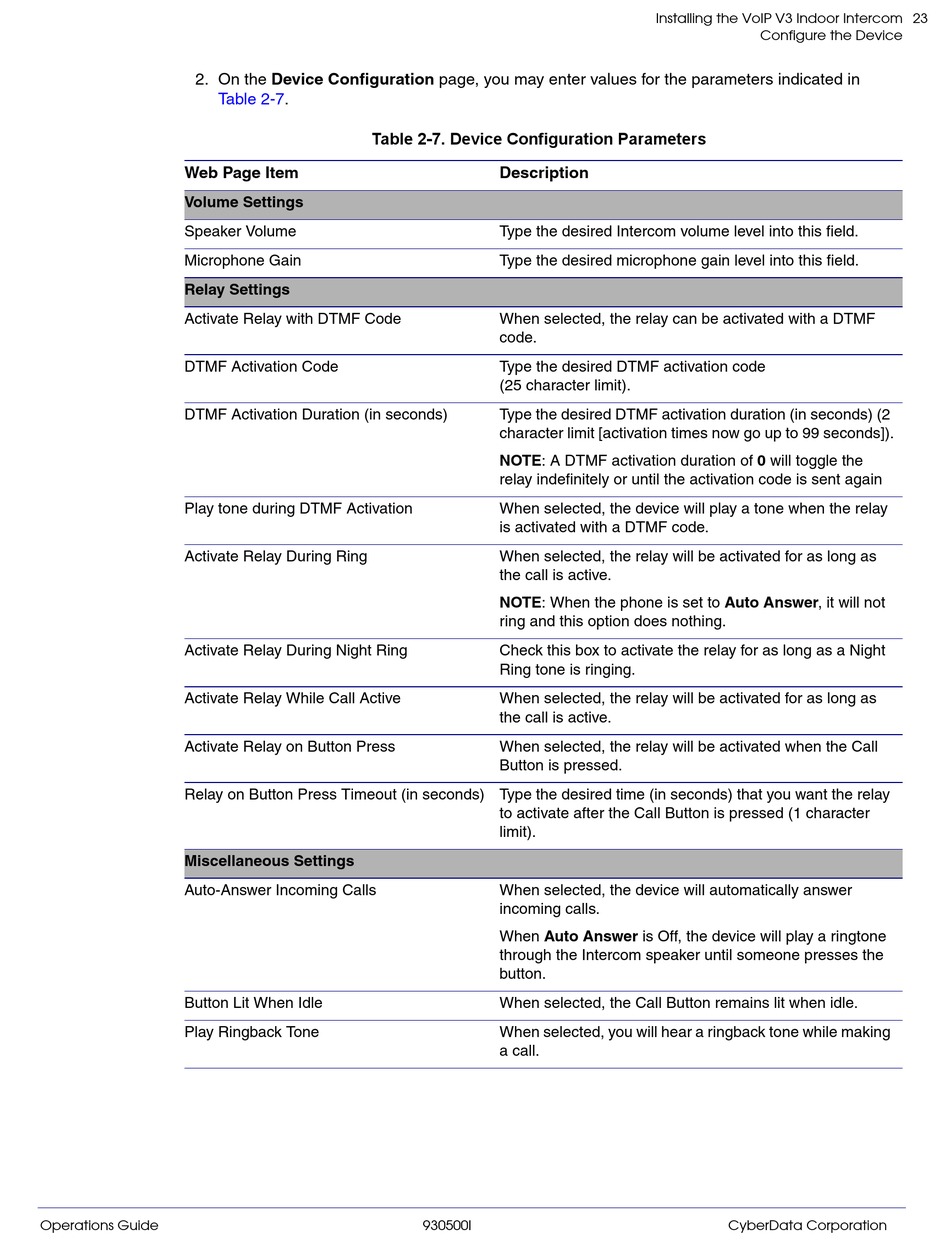

Table 2-7. Device Configuration Parameters
Description
Type the desired Intercom volume level into this field.
Type the desired microphone gain level into this field.
When selected, the relay can be activated with a DTMF
code.
Type the desired DTMF activation code 
(25 character limit).
Type the desired DTMF activation duration (in seconds) (2
character limit [activation times now go up to 99 seconds]).
NOTE: A DTMF activation duration of 0 will toggle the
relay indefinitely or until the activation code is sent again
When selected, the device will play a tone when the relay
is activated with a DTMF code.
When selected, the relay will be activated for as long as
the call is active.
NOTE: When the phone is set to Auto Answer, it will not
ring and this option does nothing.
Check this box to activate the relay for as long as a Night
Ring tone is ringing.
When selected, the relay will be activated for as long as
the call is active.
When selected, the relay will be activated when the Call
Button is pressed.
to activate after the Call Button is pressed (1 character
limit).
When selected, the device will automatically answer
incoming calls.
When Auto Answer is Off, the device will play a ringtone
through the Intercom speaker until someone presses the
button.
When selected, the Call Button remains lit when idle.
When selected, you will hear a ringback tone while making
a call.
