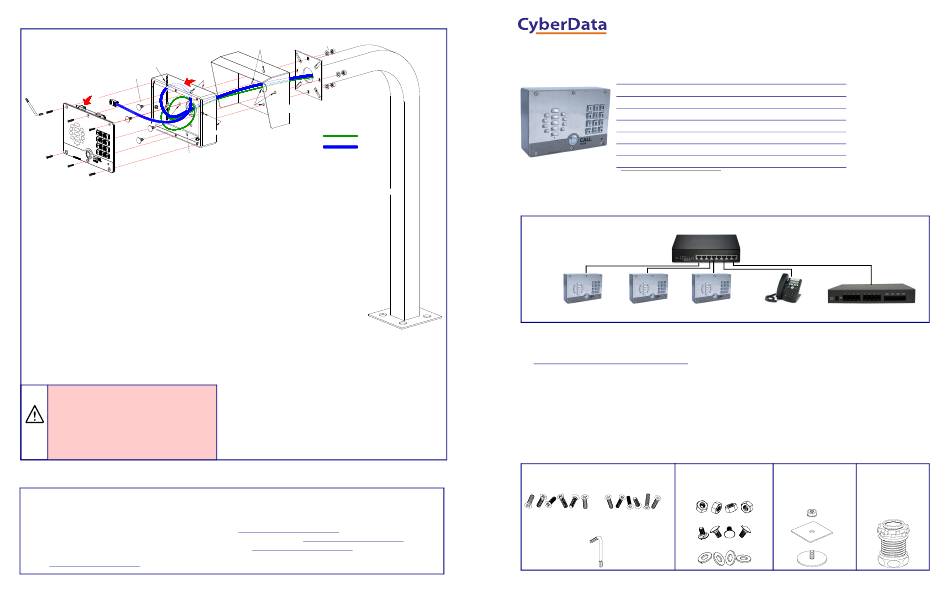

CyberData 011214 Installation Quick Reference

Gooseneck Mounting
Apply RTV Silicone Sealant around mounting holes and
backside perimeter of Backbox and Weather Shroud
Cable & Wire
Carriage Bolt
Create service loop
(Apply Blue Loctite on threads)
to J1
J1
Torx key
Faceplate mounting
Torx security screw

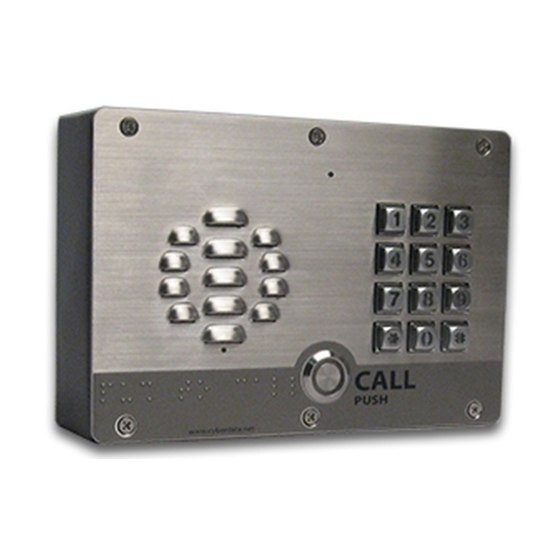

SIP Outdoor Intercom with Keypad
Note: To mount the intercom, use methods
compliant with local electrical codes.
Note: More installation and mounting
information is illustrated in the Operations Guide.
Caution
Equipment Hazard: Do not use an electric
or power screwdriver to fasten the face plate
and PCB assembly to the gang box. To prevent
over-torque damage to the gasket, do not apply
GENERAL ALERT
more than 10 inch-pounds force. Over-torquing
will cause the gasket to tear, risk moisture intrusion,
and effectively void the manufacturer's warranty.
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
Carriage Bolt, Washer & Nut
(4 sets included)
Weather Shroud
011215 Outdoor Shroud, 2X
(Sold separately)
Ground Wire
Backbox
Network Cable
Gooseneck
(All Cables, Fasteners, Sealant and Gooseneck are not provided
unless noted otherwise.)
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931560F Quick Reference
Installation Quick Reference
SIP Outdoor Intercom with Keypad
The IP Endpoint Company
SIP Compliant
011214
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation and mounting
802.3af Compliant Ethernet Switch
options are available in the
Operations Guide.
Intercom Intercom Intercom
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011214
• Create a plan for the locations of your devices.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
Accessory Kit Optional Accessories
(for gooseneck mounting)
(6) Phillips Screws (6) Security Torx Screws
(4) Carriage bolt nuts
(4) Carriage bolts
Mounting Component
Security Torx Key
(4) Carriage bolt washers
Quick Reference
Factory Default Setting
DHCP
IPv4 Link Local
admin
admin
IPv4 Link Local
IPv4 Link Local
IP Phone IP PBX Server
Optional Accessories Sold Separately
(1) 531085* Hole (1) 1/2-inch EMT
plug assembly compression
connector with extra
sealing locknut
931560F © 2022, CyberData Corporation, ALL RIGHTS RESERVED
