A.4 Gang Box Option
Figure A-3
Note
Operations Guide
shows a 1-Gang Box and a 2-Gang Box mounting option.
Be sure to connect the VoIP V3 Indoor Intercom to the Earth Ground.

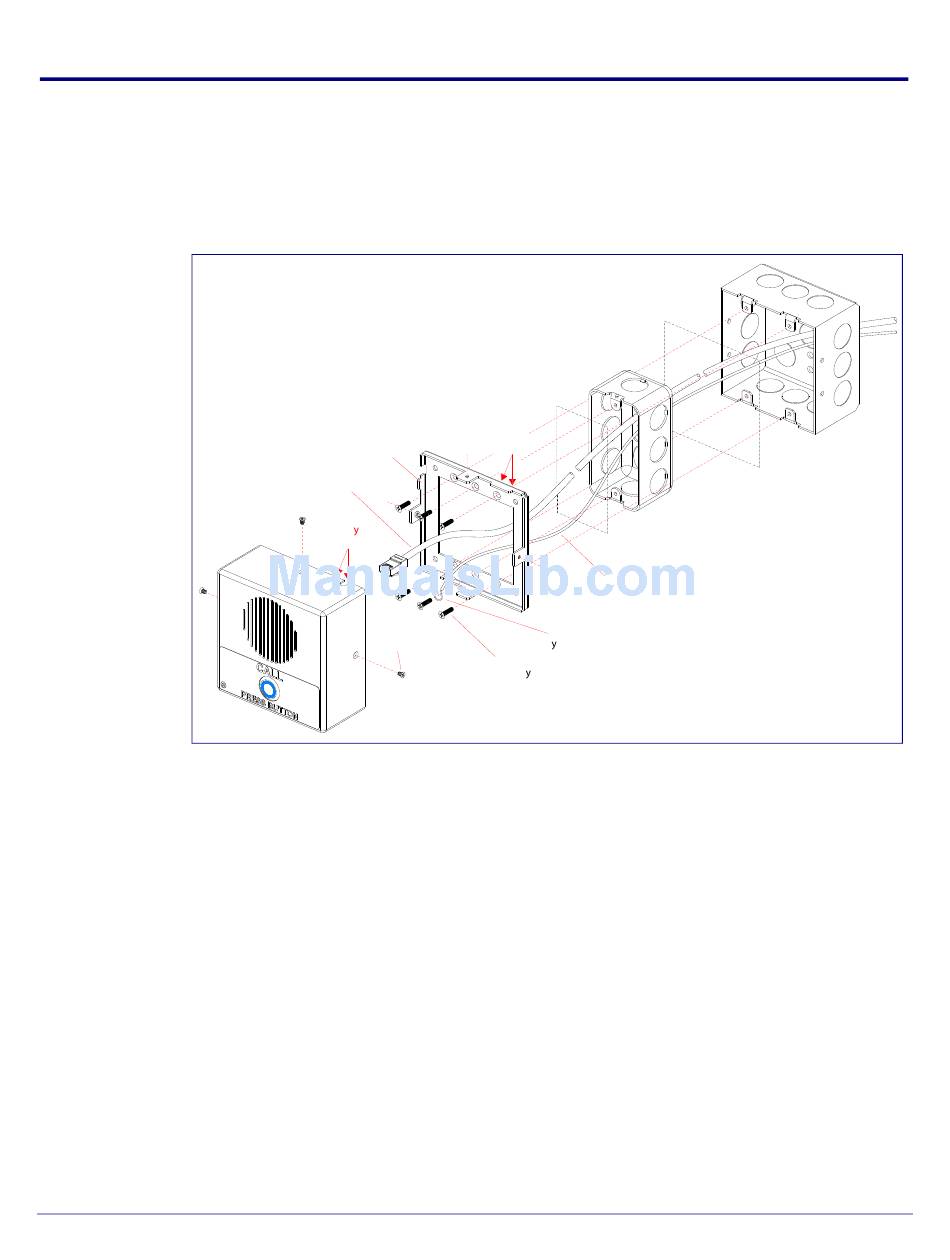

Figure A-3. Gang Box Mounting
Backplate
Network Cable
(Not Provided)
Cable
Entr
Slot
Mounting
Screw (3x)
930500I
Wall Cutout
Wall Cutout
Cable
Slots
Closed
Ground Wire
(Not Provided)
Ground Wire Connect to
An Available Mounting Hole
121002B
Screw Accessor Kit
Two Gang Box use four
Single Gang Box use two
Mounting the Indoor Intercom

Gang Box Option

Backplate accept
Single Gang Box
or Two Gang Box
