1.2 Typical System Installation

The Voice-over-IP (VoIP) Intercom is a Power-over-Ethernet (PoE 802.3af) and VoIP two-way
communications device that easily connects into existing local area networks (LANs) with a single
cable connection. The intercom is compatible with most SIP-based IP PBX servers that comply with
SIP RFC 3261.
The following figures illustrate how the VoIP Indoor Intercom with Keypad can be installed as part of
a VoIP phone system.

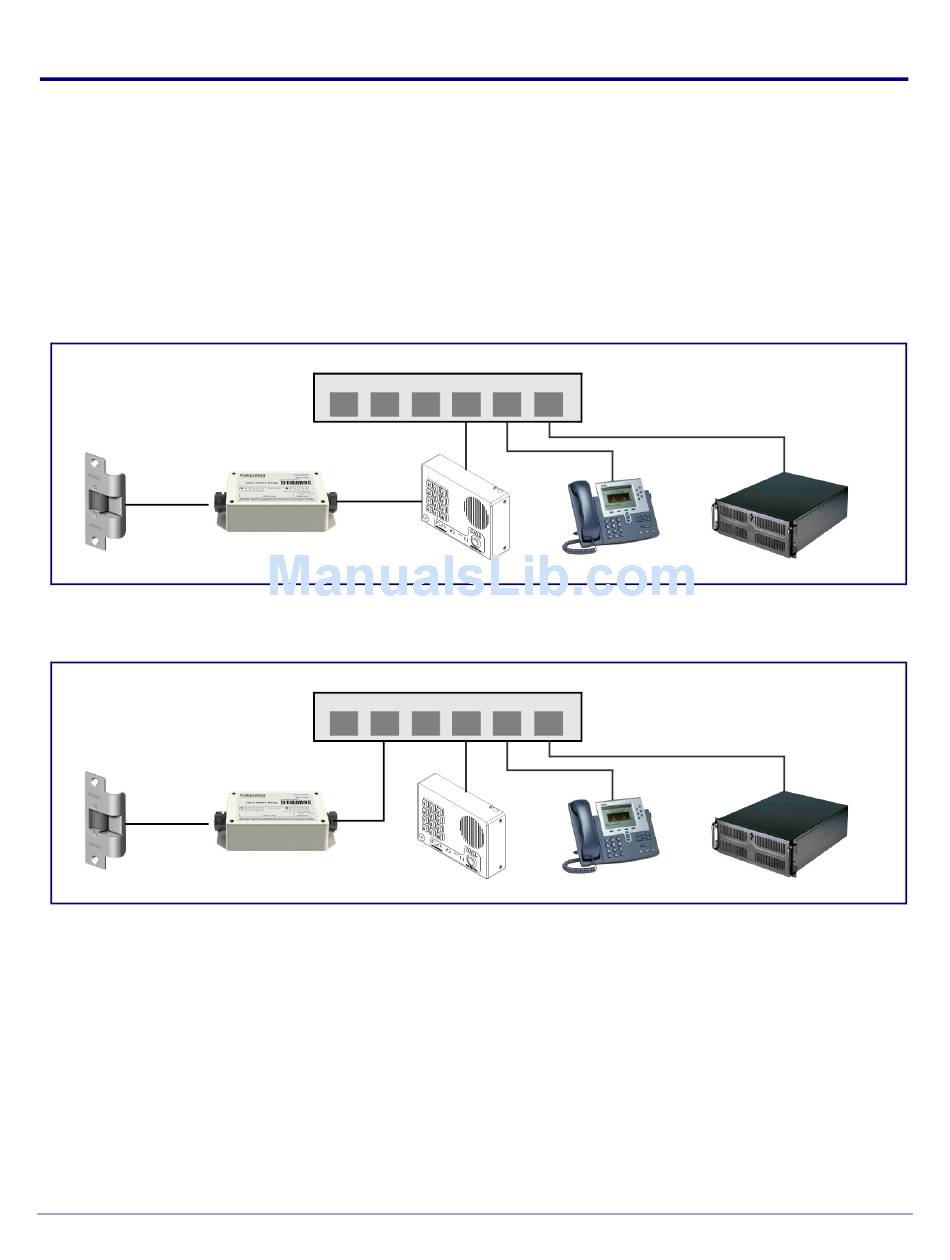

Figure 1-2. Typical Installation—Door Strike Intermediate Relay Module
Door Strike Intermediate
Door Strike
Relay Module
Figure 1-3. Typical Installation—Networked Door Strike Intermediate Relay Module
Networked Door Strike
Door Strike
Intermediate Relay Module
Operations Guide
802.3af Compliant Ethernet Switch
1 2 3 4
Intercom
802.3af Compliant Ethernet Switch
1 2 3 4
Intercom
930935B
5 6
IP Phone
5 6
IP Phone
Product Overview
Typical System Installation
IP PBX Server
IP PBX Server
