2.2.1 Call Button and Call Button LED

2.2.1.1 Call Button LED Function
•
•
•
•
•
•
•

2.2.2 Dialing from the Keypad

•
Operations Guide
Upon initial power or reset, the Call Button LED will illuminate.
During network setup the Call Button LED will blink 10 times per second until the device can find
a network address. This can take from 5 to 60 seconds.
The device "autoprovisions" by default, and the initial process may take several minutes as the
device searches for and downloads updates. The Call Button LED will blink during this process.
During the initial provisioning, or after the factory defaults have been reset, the device may
download firmware twice. The device will blink, remain solid for 10 to 20 seconds, and then
resume blinking. This process will take longer if there are many audio files downloading.
When the software has finished initialization, the Call Button LED will blink twice.
When a call is established (not just ringing), the Call Button LED will blink.
On the Device Configuration Page, there is an option called Button and Keypad Lit when
Idle. This option sets the normal state for the Call Button LED. The Call Button LED will still blink
during initialization and calls.
The Call Button LED flashes briefly at the beginning of RTFM mode.

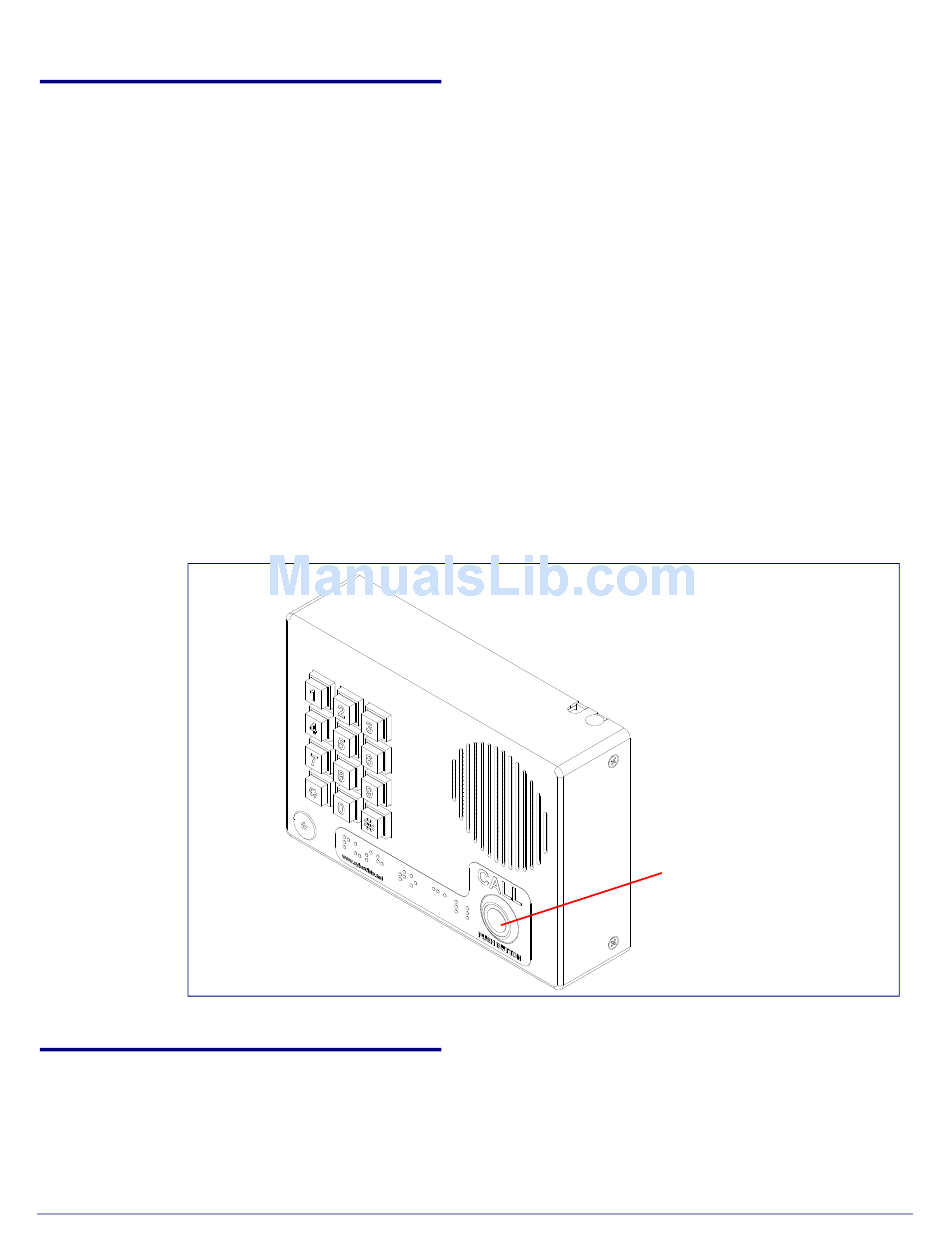

Figure 2-5. Call Button and Call Button LED
See the Enable Telephone Operation
Parameters".
